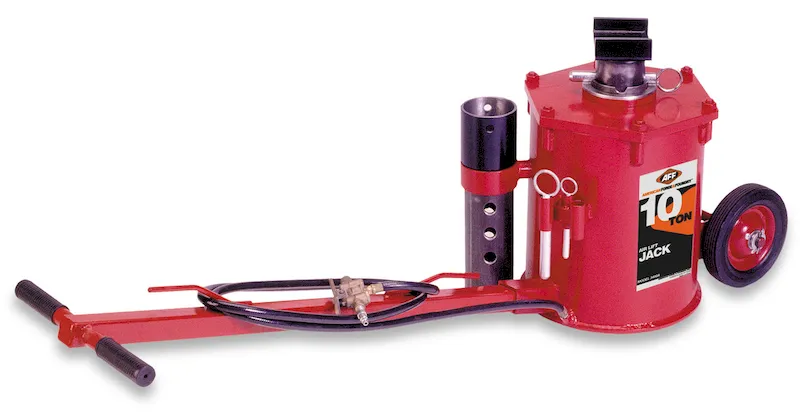

American Forge & Foundry 10-Ton Air Lift Jack (3400A)

The American Forge & Foundry 10-Ton Air Lift Jack (3400A) is engineered for the precise and secure lifting of substantial vehicles and heavy equipment. This 100% air-operated jack offers a robust 20,000 lb capacity, making it an essential tool for automotive service centers, industrial facilities, and construction sites. Its design prioritizes operational control and portability, allowing for efficient and safe handling of demanding lifting tasks, from routine maintenance on large trucks to supporting heavy farm machinery. With a focus on stability and ease of use, the 3400A is built to perform consistently in various professional environments.

KEY FEATURES AND BENEFITS:Powerful Lifting Capacity: Provides a substantial 10-ton (20,000 lbs) lifting capacity, achieved with a 200 PSI air supply, making it suitable for a wide range of heavy-duty applications.Precise Air Control: Features a heavy-duty air valve that allows for accurate and smooth speed control when both lifting and lowering a load, enhancing operational safety and precision.Enhanced Mobility: Equipped with large pneumatic wheels, the jack can be easily maneuvered across different surfaces, ensuring convenient positioning wherever it’s needed.Flexible Lifting Points: Includes extension tubes that offer multiple lifting and locking positions, accommodating various vehicle heights and load requirements.Optimized Storage: The “T” handle is removable, facilitating compact storage when the jack is not in use, which helps save valuable workspace.Secure Load Holding: Integrated locking mechanisms work in conjunction with the air operation to securely hold the load at the desired height, increasing safety during maintenance.Wide Application Scope: Specifically designed for efficient lifting and supporting of large trucks, tractor-trailers, buses, farm, industrial, and construction equipment.SPECIFICATIONS:Capacity: 10 tons (20,000 lbs)Working Air Pressure: 200 PSIOperation: Air/HydraulicLow Height: 17.3 inchesHigh Height: 51.2 inchesRam Lift (Stage 1): 12.4 inchesLift Travel: 12 inchesBase Length: 13.5 inchesBase Width: 13.5 inchesHandle Length: 38.5 inchesSaddle Spread: 5 x 4 inchesWeight: 160 lbsStandards: ASME PASE 2014 Safety StandardDuty Level: Heavy DutyHOW TO USE:Prepare the Work Area: Ensure the vehicle or equipment is on a firm, level surface. Engage parking brakes and chock wheels as necessary.Connect Air Supply: Connect an air line capable of supplying 200 PSI to the jack’s air inlet.Position the Jack: Roll the jack into position, centering the saddle beneath the designated lifting point of the vehicle or equipment.Initiate Lift: Slowly open the heavy-duty air valve to begin lifting the load. Monitor the lifting process, ensuring the load is stable and lifting evenly.Engage Locking Mechanisms: Once the desired height is reached, engage the integrated locking mechanisms to secure the load. This is crucial for safety and prevents accidental lowering.Lowering the Load: To lower the load, ensure the area beneath is clear. Slowly open the air valve to control the descent. Once fully lowered, disconnect the air supply.Store the Jack: If needed, remove the “T” handle for more compact storage.BENEFITS OF USING AMERICAN FORGE & FOUNDRY 10-TON AIR LIFT JACK (3400A):Enhanced safety through compliance with ASME PASE 2014 and integrated locking features.Fully air-operated design ensures quick, effortless lifting, reducing manual strain.Versatile enough for use across trucks, farm, and construction equipment.Large wheels and removable handle make it easy to maneuver and store.Built with premium materials for durability and longevity under tough workloads.Controlled lifting and lowering via the air valve promotes safe, precise operation.FEATURES:Built-in locking system holds heavy loads securely during servicing.Delivers 20,000 lbs of lifting power using 200 PSI air pressure.Uses an air/hydraulic system for efficient, powerful operation.Oversized pneumatic wheels enhance transport over varied surfaces.Removable “T” handle allows for easy storage when not in use.Provides a 12.4-inch ram lift for substantial elevation.Compact square base—13.5 inches long and wide—for balanced lifting.Extension tubes included to adapt to different lift points.Handle reaches up to 38.5 inches for ergonomic operation.Saddle measures 5 x 4 inches to fit securely under heavy equipment.Complies with ASME PASE 2014 safety standards.Heavy-duty classification ensures suitability for industrial-grade lifting.
