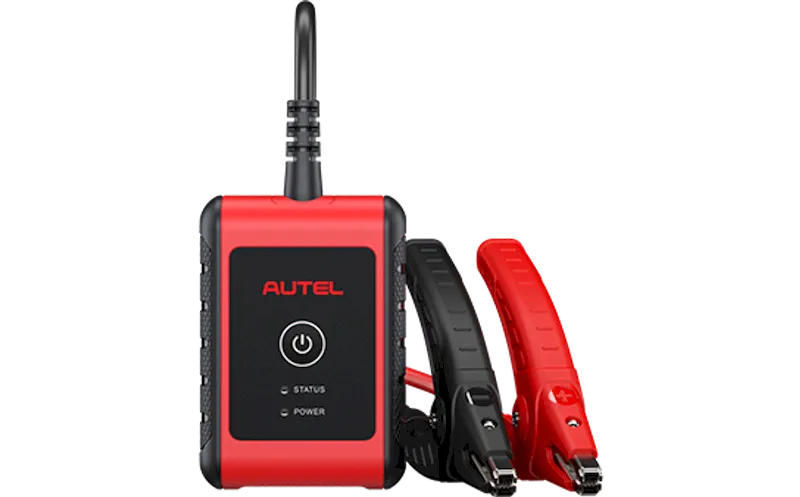

Autel USA BT506 Battery and Electrical System Analyzer Tool

Autel BT506 Battery and Electrical System Analysis Tool

The BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle’s battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries Test 6- and 12-volt batteries: 100 – 2000 CCA Test 12- and 24- cranking/charging systems Test Flooded, AGM, AGM Spiral, EFB and GEL batteries Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Specifications:

Connectivity: USB 2.0, Type C – Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode Input Voltage: 5 V DC Working Current: < 150 mA at 12 V DC Internal Battery: N/A CCA Range: 100 to 2000 A Voltage Range: 6 to 36 V Working Temperature: -10°to 50° C (14° to 122° F) Storage Temperature: -20° to 60° C (-4° to 140° F) Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) Weight: 320 g (0.7 lb.)
