Baileigh 220V 3 Phase 7.5 hp 16 CNC Sliding Table Saw (1020651)

Baileigh 220V 3 Phase 7.5 hp 16″ CNC Sliding Table Saw (1020651) is designed for high-volume industrial production, ensuring precise cuts with programmable accuracy. With its powerful 7.5 hp motor and robust CNC system, this saw is ideal for handling 10-foot panels with ease.

This CNC table saw features four blade speeds (3,000, 4,000, 5,000, and 6,000 rpm) to accommodate various material hardness and thickness. The 1 hp scoring blade, spinning at 8,000 rpm, guarantees clean cuts without frayed edges, reducing the need for extra sanding.

Specifications and Dimensions Length: 157 in. Width: 48 in. Height: 48 in. Net Weight: 2820 lbs Table Size (Length): 126 in. Table Size (Width): 15 in. RPM: 3000/4000/5000/6000 Max Blade Diameter: 16 in. Max Stock Width: 51 in. Blade Arbor Size: 1 in. Cutting Height @ 90°: 5 in. with 16 in. blade Cutting Height @ 45°: 3.25 in. with 16 in. blade Scoring Blade RPM: 8000 Scoring Blade Diameter: 4.5 in. Scoring Blade Arbor: 7/8 in. Power: 220V Three Phase Horse Power: 7.5 Weight: 2500 lbs

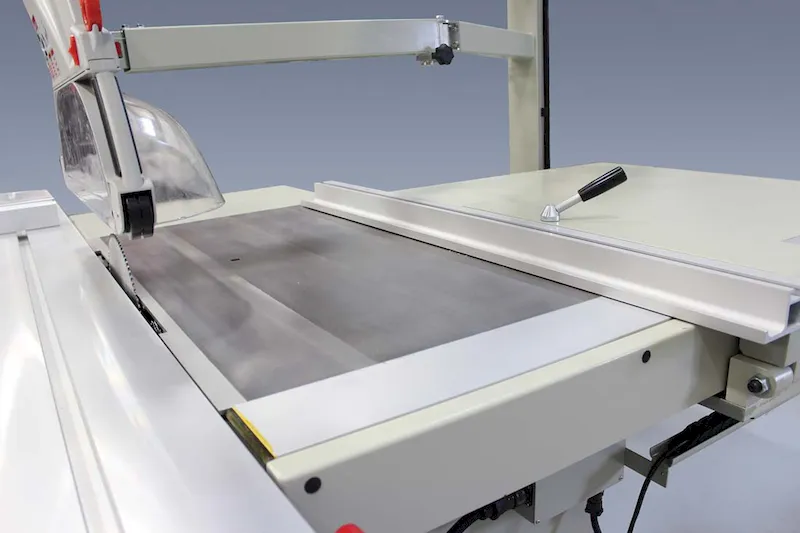

Key Features and Benefits 7.5 hp motor with 4 speeds for various material hardness and thickness Digital readout (DRO) for blade speed Includes 12” blade, accepts up to 16” blade 1 hp scoring blade for clean cuts without frayed edges 5.7” touchscreen control panel with 300 program memory capacity Servo motor for precise rip fence positioning Heavy cast steel trunnion for extra rigidity 15” x 125” sliding table made of anodized aluminum
