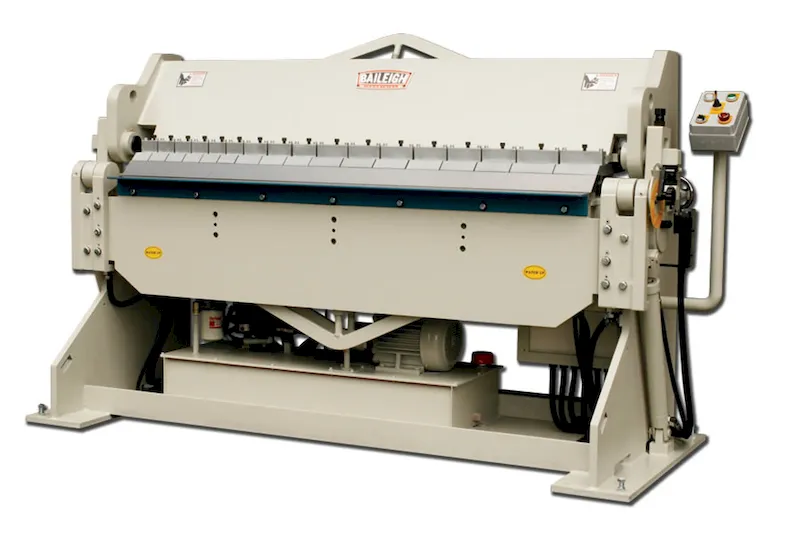

Baileigh 220V 3Phase Hydraulic Box and Pan Brake 6′ Length (1021002)

Baileigh 220V 3Phase Hydraulic Box and Pan Brake 6′ Length (1021002) is designed to handle heavy-duty bending tasks with ease and precision. This hydraulic sheet metal brake can bend 10 gauge mild steel across its full 6-foot (72”) length, making it ideal for a variety of industrial applications.

This box and pan brake offers reliability and efficiency. The adjustable bend auto-stop ensures repeatability for production runs, and the machine operates in both manual and semi-automatic modes. The fully-welded top beam and bending leaf, supported by solid steel rods, minimize deflection and twisting during operation.

Specifications and Dimensions Length: 110 in. Width: 44 in. Height: 71 in. Net Weight: 5010 lbs Beam Adjustment: 1 in. Maximum Box Depth: 6 in. Mild Steel Capacity: 10 gauge Motor: 5 hp Input Power: 220V / 3-phase Maximum Bend Angle: 135° Overall Length: 72 in.

Key Features and Benefits Handles 10 gauge mild steel across 6-foot length Adjustable bend auto-stop for efficient production 17 hardened 3-piece fingers for various box and pan sizes Fully-welded top beam and bending leaf for stability Operates in manual and semi-automatic modes Includes lifetime technical support by phone Covered by a 1-year parts warranty
