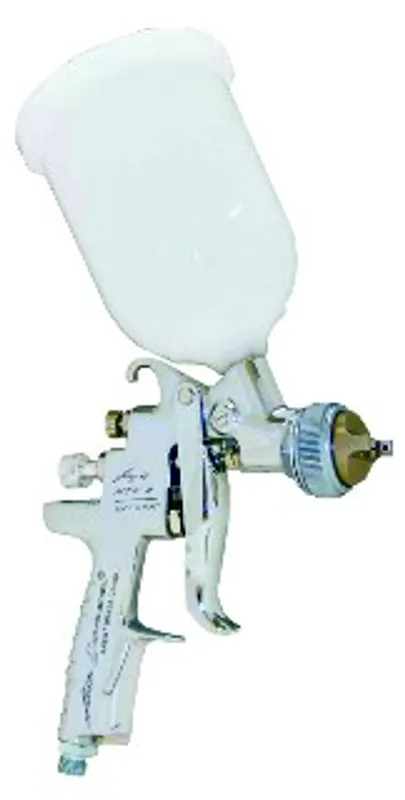

Iwata Air Gunsa 1.3mm Gravity Spray Gun (9234)

The Iwata Air Gunsa 1.3mm Gravity Spray Gun (9234) is engineered for efficient and consistent material application, making it a reliable choice for various painting projects. Its gravity feed system ensures a steady flow of material from the top-mounted 600 mL plastic cup, optimizing paint usage. Equipped with HTE2 (High Transfer Efficiency) technology, this spray gun minimizes overspray, leading to significant material savings and reduced waste. The 1.3mm nozzle is well-suited for applying sealers, delivering a controlled and uniform finish. Its ergonomic design, featuring a lighter body and a soft trigger pull, greatly reduces user fatigue, allowing for comfortable operation over extended periods. The polished body simplifies cleaning, ensuring the gun remains in optimal condition after use. Furthermore, all wetted parts are constructed from stainless steel, providing exceptional durability and resistance to various chemicals. This model also includes an improved air flow valve for enhanced control and is compatible with the 3M PPS Cup System for added flexibility.

KEY FEATURES AND BENEFITS:High Transfer Efficiency (HTE2): Reduces overspray and saves material.Gravity Feed System: Top-mounted 600 mL cup ensures steady material flow.1.3mm Nozzle: Ideal for applying sealers with uniform coverage.Ergonomic Design: Lightweight body and soft trigger minimize user fatigue.Polished Body: Easy to clean and maintain for long-term use.Stainless Steel Wetted Parts: Enhances durability and chemical resistance.Improved Air Flow Valve: Offers better control over air input.3M PPS Compatibility: Works with the PPS Cup System for greater versatility.SPECIFICATIONS:Nozzle Diameter: 1.3 mmWork Pressure / Air Pressure at Gun Inlet: 29 PSI (2.0 bar)Average Air Consumption: 7 CFM (200 NL/min)Pattern Size / Width: 241.3 mm (9.5 inches or 240 mm)Cup Volume: 600 mLFluid Output: 140 ml/minMax. Working Air Pressure: 100 PSI (7.0 bar)Noise Level (LAeqT): 77.6 dB (A)Max. Temperature Range: 5 – 40 °CAir Connection: G 1/4″MFluid Connection: G 1/4″FWeight: 517 g (1.14 lbs)HOW TO USE:Prepare the Surface: Ensure the surface to be painted is clean, dry, and properly prepared according to the material manufacturer’s instructions.Mix Material: Prepare your paint or sealer as per the manufacturer’s specifications. Strain the material to remove any impurities that could clog the gun.Fill the Cup: Pour the prepared material into the 600 mL plastic gravity cup attached to the top of the spray gun.Connect Air Supply: Attach an air hose to the G 1/4″M air inlet on the spray gun and connect it to your air compressor. Set your compressor’s regulator to the recommended work pressure of 29 PSI (2.0 bar).Adjust Settings: Before spraying, perform test sprays on a scrap piece of material. Adjust the fluid needle for material flow, the fan control knob for pattern width, and the air cap for atomization until you achieve the desired spray pattern and finish.Begin Spraying: Hold the gun perpendicular to the surface, maintaining a consistent distance (typically 6-8 inches). Apply even, overlapping passes. Release the trigger at the end of each pass.Clean After Use: Immediately after use, thoroughly clean the spray gun. Disassemble the air cap, fluid nozzle, and fluid needle. Clean all parts with appropriate cleaning solutions. Run cleaner through the gun until it sprays clear.BENEFITS OF USING IWATA AIR GUNSA 1.3MM GRAVITY SPRAY GUN (9234):High transfer efficiency helps reduce material consumption and costs.Ergonomic design supports comfortable use for extended periods.Simple cleanup process thanks to polished body surface.Stainless steel wetted parts resist corrosion and chemical damage.Compatible with various materials, especially ideal for sealers.Dependable performance and finish quality for both professionals and hobbyists.FEATURES:Improved air flow valve for precise control.Lighter body construction enhances maneuverability.Soft trigger pull reduces operational effort.Made with stainless steel internal components for chemical resistance.Equipped with an AKULON plastic cup for material holding.Compatibility with the 3M PPS cup system.Manufactured in Italy.Designed for a consistent and broad spray pattern.
