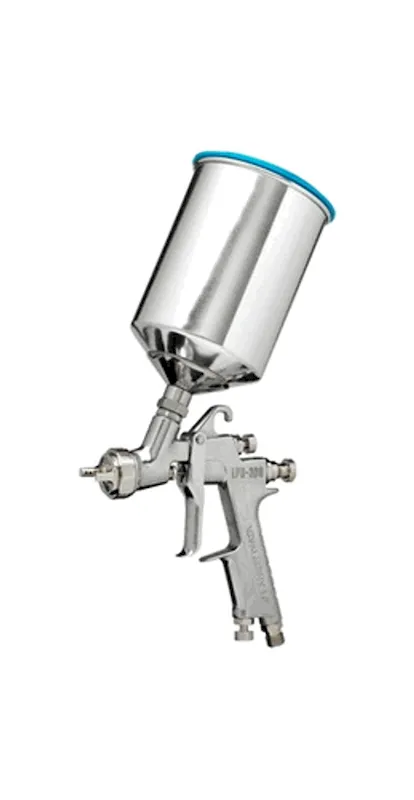

Iwata LPH300-124LV 1.2mm Spray Gun w/ PCG4D2 400mL Cup (3941)

The Iwata LPH300-124LV 1.2mm Spray Gun w/ PCG4D2 400mL Cup (3941) is a professional-grade HVLP (High Volume Low Pressure) gravity-feed spray gun engineered for a wide range of fine finishing applications. This compact and lightweight tool is designed to deliver superior atomization and a consistent spray pattern, resulting in smooth, high-quality finishes with minimal overspray. Whether you’re working on automotive spot repairs, intricate woodworking projects, or industrial coatings, the LPH300-124LV offers the precision and efficiency needed for optimal results. Its “LV” (Low Volume) technology ensures efficient material transfer and reduced material waste, making it an economical choice for both professional painters and dedicated hobbyists. The included PCG4D2 400mL cup provides ample capacity for various projects, ensuring less frequent refills and uninterrupted workflow. This spray gun is built with a durable aluminum body and is designed for long-lasting performance, provided it is maintained correctly.

KEY FEATURES AND BENEFITS:Precision Atomization: Delivers very fine atomization, producing exceptionally smooth and uniform finishes with a professional look.Low Overspray: HVLP “LV” technology minimizes overspray, significantly reducing paint consumption and decreasing cleanup time.Consistent Spray Pattern: Features a “tulip inspired” pattern for even material distribution, ensuring consistent coverage across the entire surface.Lightweight Design: Weighing only 320g (without cup), it reduces user fatigue during extended spraying periods, enhancing comfort and control.Versatile Application: Suitable for applying a variety of coatings including topcoats, clear coats, basecoats, stains, sealers, primers, and is particularly effective for UV applications.Compact Size: Its ergonomic and compact design allows for easy maneuverability in tight spaces and provides excellent balance during operation.Complete Kit: Comes with a PCG4D2 400mL gravity-feed cup, providing a ready-to-use solution for your painting needs.SPECIFICATIONS:Model: LPH300-124LVPart Number (Kit): 3941Nozzle Orifice Size: 1.2mmFeed Type: Gravity Feed (center post)Air Cap Set: LV4Max Working Pressure: 98 PSI (6.8 bar)Atomizing Air Pressure: 14-18 PSI (1.0-1.3 bar) at gun inletFluid Output: 70-90 ml/minAir Consumption: 7.1-8.5 CFM (200-240 l/min)Pattern Width: 8.0 – 8.3 inches (200-210 mm)Weight (without cup): 0.71 lbs (320g)Cup Capacity: 400mL (PCG4D2)Air Connection: G1/4″ MFluid Connection: G1/4″ MIncluded in Product: Iwata LPH300-124LV 1.2mm Spray Gun, PCG4D2 400mL Gravity-Feed CupHOW TO USE:Prepare the Work Area: Ensure your spray area is well-ventilated, clean, and free of dust. Use a spray booth if available.Safety First: Always wear appropriate personal protective equipment, including a respirator, safety glasses, gloves, and protective clothing. Ensure the spray gun is properly grounded.Mix Your Material: Prepare your paint, clear coat, stain, or other material according to the manufacturer’s instructions, ensuring it is properly thinned and strained to prevent clogs.Fill the Cup: Pour the prepared material into the PCG4D2 400mL gravity cup. Securely attach the cup to the spray gun.Connect Air Supply: Connect the spray gun to a clean, dry air source using a suitable air hose. Set your air compressor to the recommended atomizing air pressure (14-18 PSI at the gun inlet).Adjust Settings: Adjust the fluid control knob to regulate the amount of material sprayed and the pattern control knob to adjust the spray fan width. Test the spray pattern on a scrap piece of material to fine-tune your settings.Spraying Technique: Hold the gun perpendicular to the surface at a consistent distance (typically 6-8 inches). Start spraying before entering the work piece and release the trigger after exiting to ensure even coverage. Overlap each pass by 50% for uniform results.Clean Up: Immediately after use, clean the spray gun thoroughly according to the material manufacturer’s recommendations. Disassemble components as needed for a complete cleaning to prevent clogs and ensure longevity.BENEFITS OF USING IWATA LPH300-124LV 1.2MM SPRAY GUN W/ PCG4D2 400ML CUP (3941):Fine atomization: Produces smooth, professional-grade finishes with minimal texture and blemishes.Material savings: Reduced overspray leads to efficient material usage and cost savings.User comfort: Lightweight design reduces fatigue, enabling longer and more precise operation.Wide application range: Suitable for automotive, furniture, woodworking, and industrial uses.Reduced downtime: 400mL cup minimizes refill interruptions, promoting productivity.Durability: Rugged construction ensures long-lasting performance with proper care.FEATURES:Precision-machined air cap (LV4): For consistent air flow and excellent atomization.Gravity feed cup design: Provides consistent fluid flow, especially with smaller quantities.Ergonomic grip: Designed for comfortable handling and reduced hand strain.Stainless steel fluid needle and nozzle: Resistant to corrosion and suitable for waterborne materials.Responsive trigger mechanism: For precise control over material flow.Adjustable fluid, fan, and air controls: Allow complete customization of the spray pattern.ATEX compliance: Suitable for safe use in specific hazardous environments.Easy-to-disassemble components: For straightforward cleaning and maintenance.
