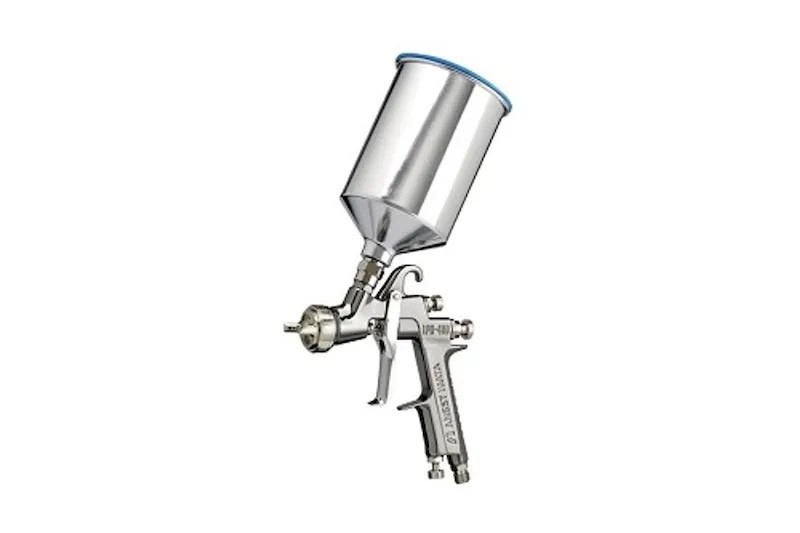

Iwata LPH400-124LV 1.2mm HVLP Spray Gun w/ 700mL Cup (5542)

The Iwata LPH400-124LV 1.2mm HVLP Spray Gun w/ 700mL Cup (5542) is a high-performance HVLP (High Volume Low Pressure) spray gun engineered for professional-grade finishing. Utilizing advanced LV technology and a unique tulip-inspired spray pattern, this gun delivers superior atomization and high transfer efficiency, minimizing material waste and ensuring a smooth, consistent finish. Its gravity-feed design makes cleanup straightforward and further reduces material loss, making it an excellent choice for a variety of precise painting applications. This model is particularly well-suited for fine metallic finishes, meticulous spot repairs, light industrial tasks, hobby projects, woodworking, and metal applications, offering precision and quality for critical painting jobs.

KEY FEATURES AND BENEFITS:High Volume Low Pressure (HVLP) Technology: Uses a high volume of air at low pressure for superior atomization, resulting in a fine, smooth finish with significantly reduced overspray. This leads to substantial material savings and a cleaner working environment.Patented LV Technology with Tulip Inspired Spray Pattern: Enhances atomization and transfer efficiency, allowing more paint to reach the surface, further optimizing material usage and contributing to a high-quality finish with minimal “orange peel.”Gravity-Feed Design with 700ml Aluminium Cup: The top-mounted cup uses gravity to aid paint flow, ensuring consistent material delivery. The aluminum construction is easy to clean and maintains durability.Low Air Consumption: Designed for efficiency, requiring only 9.5 CFM, which can help in reducing compressor strain and energy costs over time.Superior Atomization: Produces an exceptionally fine mist of paint, ensuring even coverage and a defect-free surface, which is critical for clear coats and fine metallic finishes.Versatile Application: Capable of handling a range of materials and suitable for diverse applications including fine metallic, spot repair, light industrial painting, hobby projects, woodworking, and metal finishing.SPECIFICATIONS:Nozzle Size: 1.2 mmCup Size: 700 mL (Aluminium)Atomization Type: HVLPRecommended Atomizing Air Pressure (at gun inlet): 16 PSIAir Consumption: 9.5 CFM (Cubic Feet per Minute)Fluid Output: 90 ml/minPattern Width: 10.2 inches (260 mm)Weight (Gun Only): 0.84 lbsAir Inlet Size: 1/4 inchIncluded in Product: Iwata LPH400-124LV Spray Gun, 700ml Aluminium CupHOW TO USE:Prepare the Surface: Ensure the surface to be painted is clean, dry, and properly prepared (sanded, primed, etc.).Mix Paint: Mix your paint or coating material according to the manufacturer’s specifications. Strain the paint if necessary to prevent clogs.Fill the Cup: Pour the prepared paint into the 700ml aluminum cup, ensuring not to overfill. Securely attach the cup to the spray gun.Connect Air Supply: Connect the spray gun to a clean, regulated air supply using a 1/4 inch air hose. Set your air compressor regulator to provide 16 PSI at the gun’s inlet.Adjust Controls:
Fluid Knob: Adjust the fluid control knob on the back of the gun to control the amount of paint flow.
Pattern Knob: Adjust the pattern control knob to achieve the desired spray pattern width (up to 10.2 inches).
Air Adjustment Valve: Use the air adjustment valve at the base of the gun (if present) to fine-tune the airflow.Test Spray: Before applying to your actual workpiece, perform a test spray on a piece of scrap material to check the pattern, atomization, and flow. Adjust settings as needed.Apply Paint: Hold the gun perpendicular to the surface, maintaining a consistent distance. Begin moving the gun before pulling the trigger, release the trigger before stopping the motion. Overlap each pass by approximately 50% for even coverage.Clean After Use: Immediately after painting, empty any remaining paint from the cup. Disassemble the air cap and fluid nozzle. Clean all components thoroughly with the appropriate cleaning solvent. Flush the gun body by spraying solvent through it.BENEFITS OF USING IWATA LPH400-124LV 1.2MM HVLP SPRAY GUN W/ 700ML CUP (5542):Achieve professional-grade finishes with minimal effort.Experience significant savings on paint materials due to high transfer efficiency.Reduce cleanup time and material waste through the gravity-feed design.Benefit from extended product lifespan due to quality construction and minimal wear parts.Work with greater comfort and precision thanks to its lightweight design.Enjoy consistent performance across a wide range of painting applications.FEATURES:Precision-machined internal components for accurate fluid and air flow.Ergonomic body design engineered for user comfort and reduced fatigue during extended use.Adjustable fluid and pattern controls for customized spray characteristics.Chromed gun body for easy cleaning and enhanced resistance to corrosion.Robust construction designed for reliability in professional environments.Dedicated air valve for precise trigger-controlled air flow.Designed for compliance with environmental regulations regarding overspray reduction.
