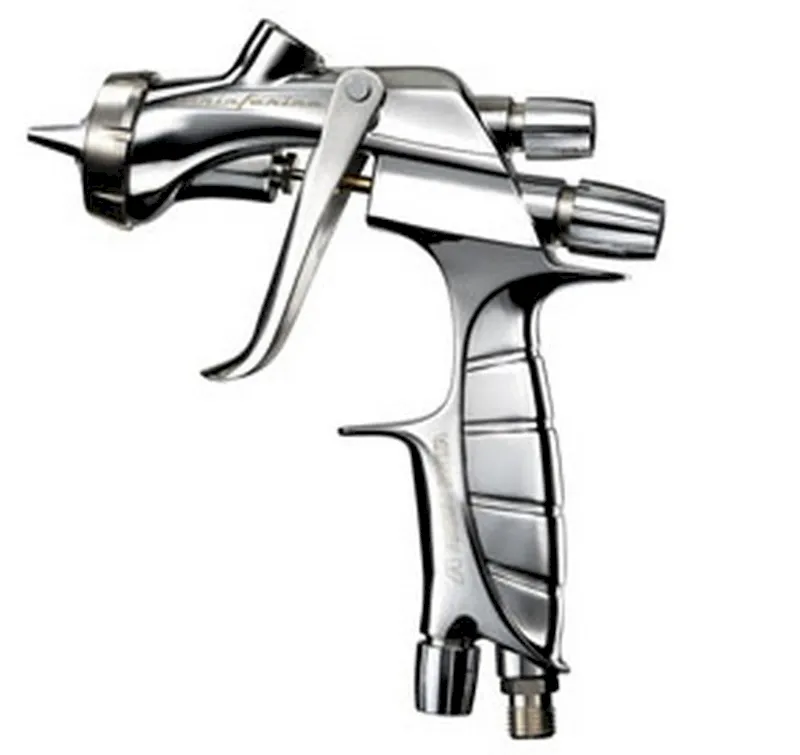

Iwata SUPERNOVA WS400 EVO 220ml/min 1.3mm Spray Gun (5905)

The Iwata SUPERNOVA WS400 EVO 220ml/min 1.3mm Spray Gun (5905) is a precision instrument engineered for professional automotive refinishing, particularly for applying high-solid clear coats. Designed with an emphasis on performance and efficiency, this gravity-fed spray gun integrates advanced technology to deliver exceptional finish quality and optimize material usage. Its innovative nozzle design, coupled with robust construction, makes it a preferred choice for achieving flawless results in demanding professional environments. The gun’s ergonomic form factor, influenced by Pininfarina, ensures comfortable handling even during extended use.

KEY FEATURES AND BENEFITS:Patented “LV Technology” Nozzle Design: This unique nozzle technology facilitates a higher fluid delivery rate, enabling faster and smoother paint application, ultimately speeding up your work while maintaining quality.Superior Atomization: Delivers consistently fine and uniform paint droplets, crucial for achieving a smooth, even, and high-gloss finish, especially important for clear coats.High Transfer Efficiency: Maximizes the amount of paint transferred to the surface, significantly reducing overspray and material waste, leading to substantial savings on costly coatings. This also ensures compliance with EPA NESHAP 40 CFR, Part 63 Subpart HHHHHH regulations for automotive refinish coatings.Consistent and Wide Spray Pattern: Produces a large, even “tulip” spray pattern measuring 365mm (14.38 inches), allowing for broad coverage with each pass and reducing the likelihood of tiger stripes or inconsistencies.Designed for Professional Compliance and Savings: The combination of advanced atomization and high transfer efficiency helps professionals meet environmental compliance standards while simultaneously cutting down on material costs.Stainless Steel Fluid Passages: Ensures compatibility with both solvent-borne and modern waterborne paint systems, offering versatility in your paint material choices.SPECIFICATIONS:Nozzle: 1.3mmAtomizing PSI: 29CFM: 12.57Fluid Ml/min: 220Pattern mm (inch): 365 (14.38)Weight g (lbs): 423 (0.93)HOW TO USE:Preparation: Ensure your spray booth is clean and well-ventilated. Prepare the surface to be painted by cleaning, sanding, and masking as required.Mix Paint: Thoroughly mix your clear coat or chosen material according to the manufacturer’s instructions, ensuring the correct ratios of paint, reducer, and hardener. Strain the paint into a separate clean cup.Attach Cup: Securely attach the paint cup (purchased separately) to the spray gun using the easy-release locking thread system.Connect Air: Connect your air hose to the spray gun’s air inlet. Ensure your air compressor can consistently supply 12.57 CFM at 29 PSI.Adjust Settings: Set the atomizing air pressure to 29 PSI at the gun’s inlet. Adjust the fluid control knob for the desired paint flow and the pattern control knob to achieve your preferred spray fan shape and size.Test Spray: Before applying to your actual workpiece, perform a test spray on a scrap panel to fine-tune your settings and verify the spray pattern and atomization.Application: Hold the gun at a consistent distance (typically 6-8 inches) from the surface and move it parallel to the surface, maintaining an even speed. Overlap each pass by 50-75% for uniform coverage.Cleaning: Immediately after use, disconnect the gun from the air supply. Empty any remaining paint. Disassemble the air cap and nozzle, and thoroughly clean all components with appropriate cleaning solvents. Reassemble the gun.BENEFITS OF USING IWATA SUPERNOVA WS400 EVO 220ML/MIN 1.3MM SPRAY GUN (5905):Delivers a mirror-like, high-gloss finish on clear coats, enhancing the overall appearance of painted surfaces.Reduces paint consumption significantly due to its high transfer efficiency, saving on material costs over time.Accelerates the painting process with higher fluid delivery, increasing productivity in professional settings.Ergonomic design minimizes user fatigue during long painting sessions.Maintains consistent performance and appearance over extended periods, thanks to corrosion-resistant components.Supports both traditional solvent-borne and modern waterborne coating systems, offering flexibility.FEATURES:Gravity feed design for efficient material flow.Precision-machined air cap and fluid tip for optimal atomization.Robust construction with corrosion-resistant parts for enhanced longevity.Ergonomic body designed by Pininfarina for comfortable grip.Easy-release paint cup system with secure locking thread.Highly precise and responsive adjusters for fluid flow and pattern.All stainless steel fluid passages, ensuring wide material compatibility.
