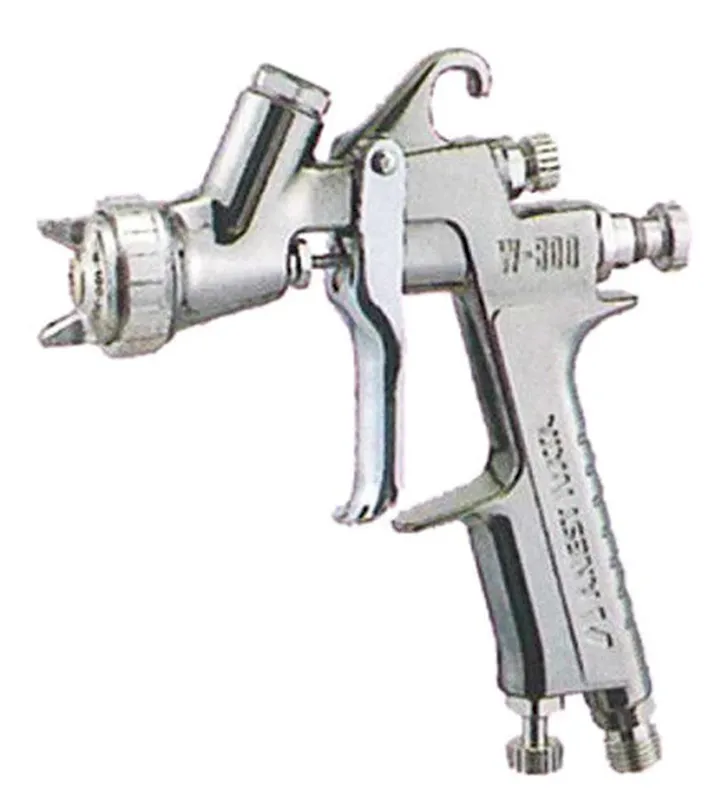

Iwata W300-101G 1.0mm Standard Quality Gravity Spray Gun Only (4805)

The Iwata W300-101G 1.0mm Standard Quality Gravity Spray Gun Only (4805) is a professional-grade tool meticulously engineered for precise and efficient painting in the automotive repair, motorcycle, and custom painting sectors. This compact and lightweight spray gun delivers performance comparable to larger models, making it perfectly suited for tasks requiring fine control, such as blending, spot repairs, and detailed work on side panels, bumpers, and other small to medium-sized areas. Its reputation as “Body Shop Gold” reflects its consistent quality and the superior finishes it helps achieve.

KEY FEATURES AND BENEFITS:Precision 1.0mm Nozzle: Provides fine atomization suitable for detailed work, blending, and applying clear coats with accuracy.Gravity Feed Design: Ensures consistent paint flow and optimal material utilization, with cup options for various project sizes.High Transfer Efficiency: Minimizes paint waste, leading to significant material savings while maintaining excellent finish quality.Compact & Lightweight (320g): Offers superior operator comfort and reduced fatigue, even during prolonged painting sessions.”Split Nozzle™ Technology”: Creates a soft, fine spray pattern, ensuring barely visible transitions and perfect surfaces, especially crucial for blending.Low Air Consumption (80 l/min / 2.6 CFM): Operates efficiently with lower air compressor requirements, reducing operational costs.Easy to Clean Chrome Body: Enhances durability, washability, and corrosion resistance, simplifying maintenance and extending the gun’s lifespan.Quiet Operation: Features a low background noise level (76.3 dB(A)) for a more comfortable working environment.SPECIFICATIONS:Nozzle Orifice: 1.0mmFeed Type: GravityAtomizing Air Pressure (at gun inlet): 2.5 bar (36 PSI)Fluid Output: 60 ml/minAir Consumption: 80 l/min (2.6 CFM)Pattern Width: 100 mmWeight: 320gMaximum Working Pressure: 6.8 bar (98 PSI)Noise Level: 76.3 dB(A)Temperature Range: 5-40 °CIncluded in Product: Spray Gun Only (accessories like paint cups are typically sold separately but compatible options include PC-G600P-2, PC-G400P-2, PCG-7D-2, and PCG-2P-2 plastic gravity cups).HOW TO USE:Prepare the Work Area: Ensure good ventilation, adequate lighting, and a clean, dust-free environment.Safety First: Always wear appropriate personal protective equipment (PPE), including a respirator, safety glasses, and gloves.Prepare Paint: Mix your paint thoroughly according to the manufacturer’s specifications, ensuring it is properly strained to avoid clogs. Pour the prepared paint into the gravity cup and attach it securely to the spray gun.Connect Air Supply: Attach an air hose from your compressor to the spray gun’s air inlet, ensuring the air pressure regulator is set to the recommended 2.5 bar (36 PSI) at the gun inlet when air is flowing.Adjust Settings: Set your fluid knob and fan pattern knob to your desired initial settings. Start with a moderate fluid output and a fan pattern suitable for your workpiece size.Test Spray: Before applying to your final workpiece, perform a test spray on scrap material to check the pattern, atomization, and fluid output. Adjust settings as needed for optimal results.Apply Paint: Hold the spray gun perpendicular to the surface at a distance of 100-200mm (4-8 inches). Move the gun in smooth, consistent, overlapping passes, maintaining a straight horizontal line to ensure even coverage. Release the trigger at the end of each pass.Clean Up: Immediately after use, clean the spray gun thoroughly according to the paint and gun manufacturer’s instructions. This typically involves flushing with appropriate cleaning solvents until clear. Disassemble the air cap and nozzle for detailed cleaning to prevent paint drying inside.BENEFITS OF USING IWATA W300-101G 1.0MM STANDARD QUALITY GRAVITY SPRAY GUN ONLY (4805):Achieves professional-grade finishes with fine atomization and seamless blending capabilities, enhancing the quality of your paint jobs.Reduces material consumption and paint waste through its high transfer efficiency design, leading to cost savings over time.Provides a comfortable and user-friendly experience due to its exceptionally lightweight and ergonomic construction, minimizing user fatigue.Offers specific advantages for precision tasks like automotive touch-ups, motorcycle custom paint, and detailed repairs on small to medium surfaces.Built with durable materials and a chrome-plated body, ensuring long-term reliability, easy cleaning, and resistance to corrosion.FEATURES:Optimized center of gravity for improved balance and handling during operation.Review air valve structure providing more stable and consistent air flow.Modified screw pitch for air cap allows for quick attachment and detachment.Groove at the rear of the needle valve facilitates easier removal during maintenance.Designed for seamless operation, suitable for both right-handed and left-handed users.Features a conical seal nozzle design, contributing to minimum wear parts and extended lifespan.Twilight chrome plating on the main body enhances both aesthetic appeal and practical washability.Contributes to a quieter work environment with its low operational noise.
