Jet JCT-3623 4 4-Bolt Chipping Hammer w/ Hex Shank (550623)

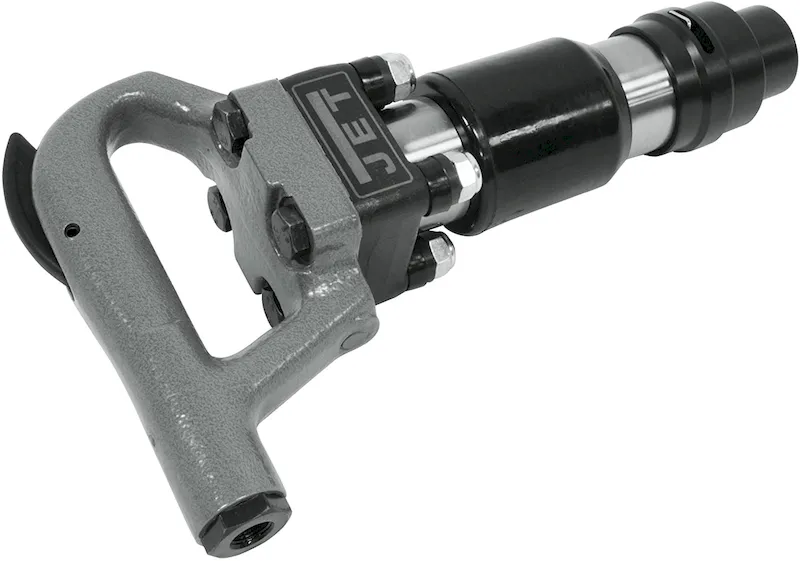

Jet JCT-3623 4″ 4-Bolt Chipping Hammer w/ Hex Shank (550623) is a heavy-duty tool designed for efficient and powerful material removal. Built with a robust 4-bolt construction and a comfortable D-handle, this chipping hammer delivers exceptional performance and user comfort.

KEY FEATURES AND BENEFITS:Durable Construction: The 4-bolt design and heat-treated cylinder and piston ensure long-lasting performance in demanding conditions.Powerful Performance: With a 4-inch stroke and 1,500 blows per minute, this chipping hammer effectively tackles tough materials.Ergonomic Design: The D-handle provides a comfortable grip, reducing user fatigue during extended use.Easy Maintenance: The 4-bolt backhead allows for simple servicing and replacement of parts.SPECIFICATIONS:Shank Bushing Style: HexShank Bushing Size: 0.580 inchesPiston Stroke: 4-1/64 inchesBore Size: 1-3/16 inchesEnergy Per Blow @ 90 PSI: 22 ft-lbRivet Capacity: 1-1/4 inchesAir Consumption: 34 CFMVibration Value: 26.0 m/s²Noise Level: 98 dB(A)Overall Length: 16-1/2 inchesBlows Per Minute: 1,500Air Pressure: 90 PSIAir Inlet: 3/8″ NPTMinimum Air Hose Size: 1/2″ IDHOW TO USE:Safety First: Always wear appropriate safety gear, including eye protection, hearing protection, and gloves.Connect Air Hose: Securely connect the air hose to the chipping hammer’s air inlet using a 3/8″ NPT fitting.Inspect Tool: Check for any damage or wear before use. Ensure the chisel is securely tightened.Turn On Air Compressor: Start the air compressor and adjust the pressure to 90 PSI.Grip the Handle: Hold the chipping hammer firmly with both hands, using the D-handle for control.Start Chipping: Apply steady pressure and use controlled motions to remove material.Regular Maintenance: Clean the chipping hammer after each use and lubricate moving parts according to the manufacturer’s instructions.BENEFITS OF USING JET JCT-3623 4″ 4-BOLT CHIPPING HAMMER W/ HEX SHANK (550623):Increased efficiency and productivity on construction sites.Improved material removal speed and accuracy.Enhanced user comfort due to ergonomic design.Reduced downtime with easy maintenance and repair.Durable construction for long-lasting performance.FEATURES:Four-bolt design for extra strengthHeat-treated cylinder and pistonHeavy-duty valve designErgonomic D-handleEasy serviceabilityStandard type retainer
