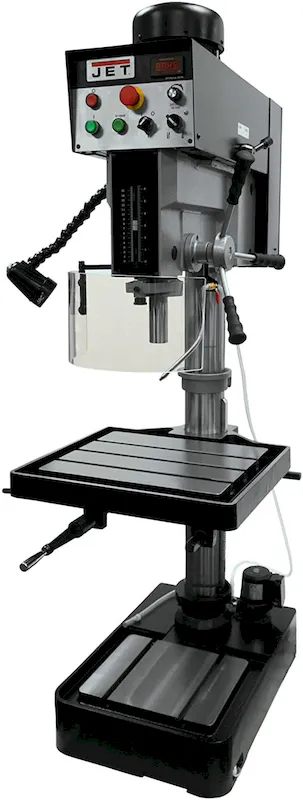

Jet JDP-20EVST-230 20 230V EVS Tapping Drill Press (354225)

The Jet JDP-20EVST-230 20″ 230V EVS Tapping Drill Press (354225) is a 20-inch electronic variable speed drill press designed for professionals and demanding workshops. It offers exceptional precision, power, and versatility, making it an ideal tool for a wide range of drilling and tapping operations in metal and wood.

KEY FEATURES AND BENEFITS:Electronic Variable Speed: Easily adjust spindle speeds from 65 to 2000 RPM for optimal performance across various materials and applications.Forward and Reverse Tapping: Seamlessly switch between drilling and tapping modes, increasing your workflow efficiency.Large Precision Ground T-Slot Table: Provides a stable and accurate work surface for precise drilling and tapping.Heavy-Duty Construction: Built with a robust steel column and cast iron head for maximum rigidity and durability.Powerful 2 HP Motor: Delivers consistent power for effortless drilling and tapping in even the toughest materials.CSA/CUS Certified: Ensures safety and compliance with strict electrical requirements.Additional Features: CSA coolant system, LED work light, spindle guard, and emergency stop button for enhanced safety and convenience.SPECIFICATIONS:Drilling Capacity:Cast Iron: 1-1/2″Mild Steel: 1-3/8″Tapping Capacity:Cast Iron: 7/8″Mild Steel: 3/4″Spindle:Travel: 6″Taper: MT-3Table:Size: 22″ x 18-3/4″Travel: 20″Motor: 2 HP, 230V 3-phaseOverall Dimensions: 38.18″ x 27.16″ x 79.52″Weight: 792 lbsHOW TO USE:Setup: Securely mount the drill press to a stable workbench using the provided mounting hardware.Adjust Table Height: Position the table to the desired height by loosening the table locking handle, adjusting the height, and then retightening the handle.Select Speed: Set the desired spindle speed using the electronic variable speed control.Install Drill Bit or Tap: Insert the appropriate drill bit or tap into the chuck and tighten securely.Drill/Tap: Engage the spindle and carefully feed the drill bit or tap into the workpiece. Use cutting fluid for metalworking applications.Stop: Release the spindle lever and allow the spindle to come to a complete stop before removing the workpiece.BENEFITS OF USING THE Jet JDP-20EVST-230 20″ 230V EVS Tapping Drill Press (354225):Increased Productivity: The electronic variable speed and tapping capability streamline your workflow.Enhanced Precision: Heavy-duty construction and precision ground table ensure accurate results.Versatility: Handle a wide range of drilling and tapping applications in various materials.Durability: Built to withstand the demands of professional use.FEATURES:Heavy-duty steel columnCast iron headPrecision ground T-slot tableAC inverter variable speed technologyCSA coolant systemHigh-quality ball bearingsLED machine lampSpindle guardEmergency stop buttonFront-mounted LED spindle RPM readoutPositive control depth stopLarge hand grips
