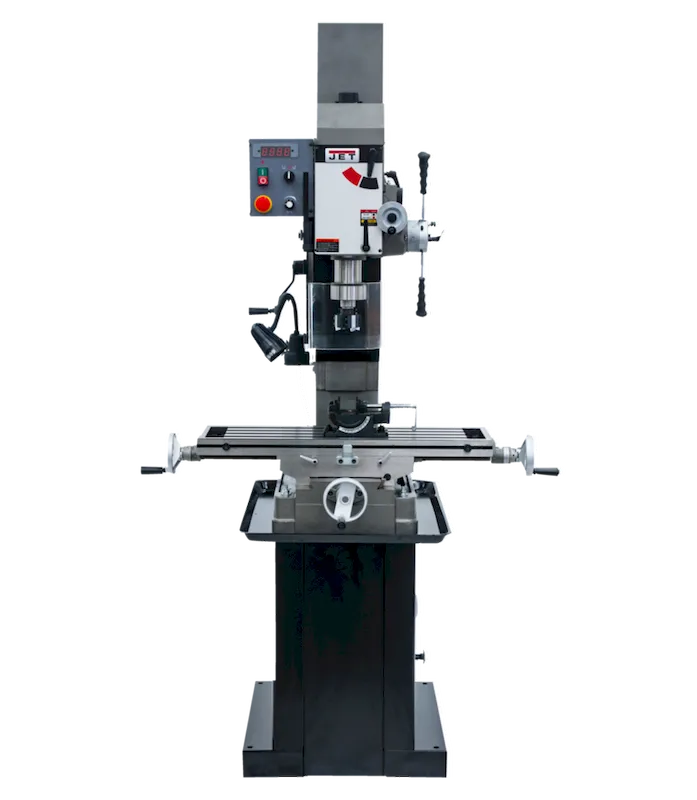

Jet JMD-45VSPF Var. Speed Square Column Gear Head Mill/Drill (351050)

The Jet JMD-45VSPF Var. Speed Square Column Gear Head Mill/Drill (351050) is a heavy-duty machine built for precision drilling and milling applications in workshops and production environments. Its rigid square column design with dovetail ways minimizes deflection for accurate machining. The variable speed geared head delivers full power to cutting tools across a wide range (50-2500 RPM) for optimal performance with various materials.

KEY FEATURES AND BENEFITS:Heavy-duty construction: Ensures stability and accuracy for demanding tasks.Variable speed geared head: Provides precise control for drilling and milling diverse materials.Power downfeed: Simplifies milling operations and improves control.R8 spindle taper: Compatible with a wide range of milling and drilling tools.Spacious table (9-1/2″ x 32-1/4″): Accommodates various workpieces.Quick-select gear shift levers: Enable rapid spindle speed changes for efficient operation.Easy-to-read depth gauge: Allows for precise drilling depth control.Head tilts 90° left & right: Facilitates angular drilling and milling.Calibrated fine down feed: Provides exceptional control during milling.CSA/CUS certified: Meets strict electrical safety standards.SPECIFICATIONS:Drilling Capacity: 1-1/2 in.Face Mill Capacity: 4 in.End Mill Capacity: 3/4 in.Swing: 19-11/16 in.Max Distance Spindle to Table: 18-1/8 in.Spindle Taper: R8Spindle Travel (Auto): 4-1/4 in.Quill Diameter: 3 in.Column Diameter: 7-7/8 x 7-5/8 in. SquareNumber of Spindle Speeds: VariableSpindle Speed Range: 50-2500 RPMTable Size (L x W): 9-1/2 x 32-1/4 in.Table Longitudinal Travel: 20-1/2 in.Base Dimensions: 26-11/16 x 15-15/16 in.Motor: 1-1/2 HP, 115/230V, 1PhOverall Dimensions (L x W x H): 29 x 36 x 50 in.Weight: 827 lbs.HOW TO USE:Assembly and Setup: Follow the manufacturer’s instructions for proper assembly and installation of the Jet JMD-45VSPF Mill/Drill. Ensure the machine is securely mounted on a stable workbench and level for optimal performance.Workpiece Setup: Secure your workpiece in a vise or clamps on the mill/drill table. For drilling, mark the drilling locations clearly.Drilling: Select the appropriate drill bit size for your project and install it into the R8 spindle. Choose the desired spindle speed based on the material and bit size. Engage the power feed and carefully guide the drill bit into the workpiece, maintaining control throughout the process. Utilize the depth gauge to achieve precise drilling depth.Milling: Install the desired milling cutter into the spindle. Select the appropriate spindle speed and ensure the power downfeed is engaged. Move the workpiece table to position the material for the milling cut. Gradually lower the cutting tool towards the workpiece using the fine down feed for controlled material removal.BENEFITS OF USING Jet JMD-45VSPF Var. Speed Square Column Gear Head Mill/Drill (351050):Versatility: Handles both drilling and milling tasks within a single machine.Precision: Delivers accurate results with its rigid construction and variable speed control.Durability: Built to withstand heavy-duty use in workshops and production environments.Efficiency: Variable speed control and power downfeed optimize machining processes.Wide Range of Applications: Suitable for drilling, milling, facing, slotting, and more.FEATURES:Heavy-duty square column design with dovetail ways.Power downfeed for efficient milling.R8 spindle taper for compatibility with various tooling.Spacious table (9-1/2″ x 32-1/4″) for accommodating different workpieces.Quick-select gear shift levers for rapid spindle speed adjustments.Easy-to-read depth gauge for precise drilling control.Head tilts 90° left and right for angular drilling and milling.Calibrated fine down feed for exceptional control during milling operations.CSA/CUS certified for meeting strict electrical safety standards.
