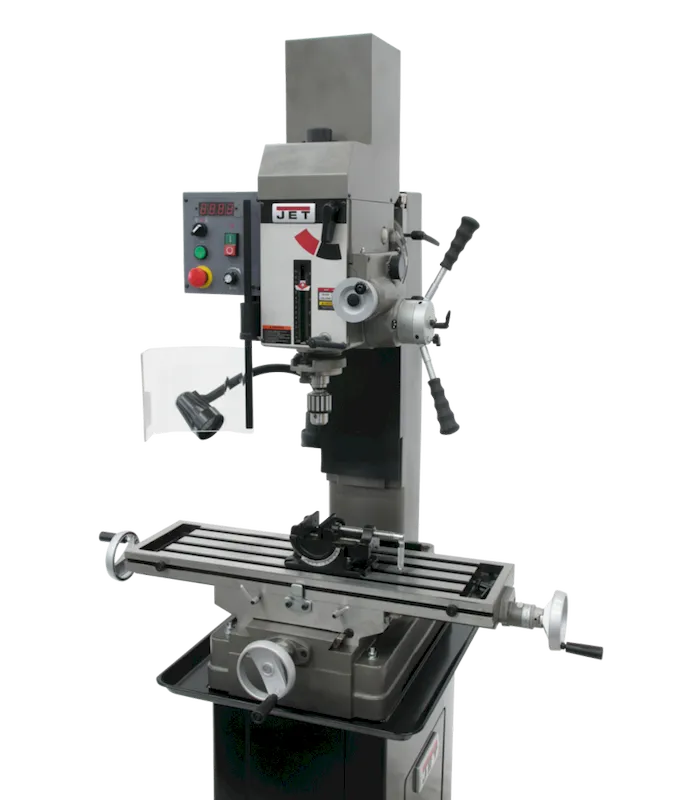

Jet JMD-45VSPFT VS Sq. Col. Mill/Drill Dwnfd & Newall DP700 2 (351156)

The Jet JMD-45VSPFT VS Sq. Col. Mill/Drill Dwnfd & Newall DP700 2 (351156) is a versatile and powerful machine designed for demanding drilling and milling applications. Its heavy-duty construction ensures rigidity and stability for accurate results.

KEY FEATURES AND BENEFITS:Variable Speed Control: Delivers optimal cutting speeds for various materials.Power Downfeed: Provides precise control during drilling operations.Spacious Table: Accommodates larger workpieces (9-1/2 x 32-1/4 inches).Digital Readout (DRO): Ensures accurate measurement on two axes (Newall DP700).Square Column Design: Offers superior stability and smooth operation.Head Tilt: Enables angled drilling and milling at 90 degrees left and right.Milling Capabilities: Performs a wide range of milling tasks with compatible tooling (R8 spindle taper).Durability: Built to withstand heavy use in professional environments.SPECIFICATIONS:Drilling Capacity: 1-1/2 in.Face Mill Capacity: 4 in.End Mill Capacity: 3/4 in.Swing: 19-11/16 in.Max Distance Spindle to Table: 18-1/8 in.Spindle Taper: R8Spindle Travel: 5 in.Quill Diameter: 3 in.Column Diameter: 7-7/8 x 7-5/8 in. (Square)Table Longitudinal Travel: 20-1/2 in.Motor: 1-1/2 HP, 115/230V, 1PhWeight: 833 lbs.HOW TO USE:Assembly: Refer to the user manual for detailed assembly instructions. Secure the mill drill on a stable workbench (mill drill stand sold separately).Workpiece Setup: Mount the workpiece securely onto the milling table using clamps or vises suitable for the size and material.Tooling Selection: Select the appropriate drill bit, end mill, or milling cutter for your desired operation. Ensure proper installation and tightening in the R8 spindle.Speed and Feed Adjustments: Set the variable speed control to match the material being worked on. Adjust the power downfeed for desired drilling depth control.Drilling: Engage the drill function and carefully guide the spindle towards the workpiece. Utilize the DRO for precise depth control.Milling: Engage the milling function and move the workpiece or the mill head (depending on the operation) to achieve the desired cut.BENEFITS OF USING Jet JMD-45VSPFT VS Sq. Col. Mill/Drill Dwnfd & Newall DP700 2 (351156):Precision Machining: Delivers accurate results for drilling and milling tasks.Versatility: Handles various drilling and milling operations with ease.Heavy-Duty Performance: Built to last in demanding workshop environments.Efficiency: Variable speed control and power downfeed optimize machining processes.User-Friendly: Easy to operate with clear controls and a digital readout.FEATURES:Heavy-duty construction for rigidity and stability.Variable speed control for optimal cutting speeds.Power downfeed for precise drilling depth control.Square column design for smooth operation.Head tilt for angled drilling and milling.R8 spindle taper for compatibility with various tooling.Digital readout (DRO) for accurate measurement on two axes (Newall DP700).Spacious table for accommodating larger workpieces.Easy-to-read internal depth gauge.Spindle guard and work lamp for improved safety and visibility.
