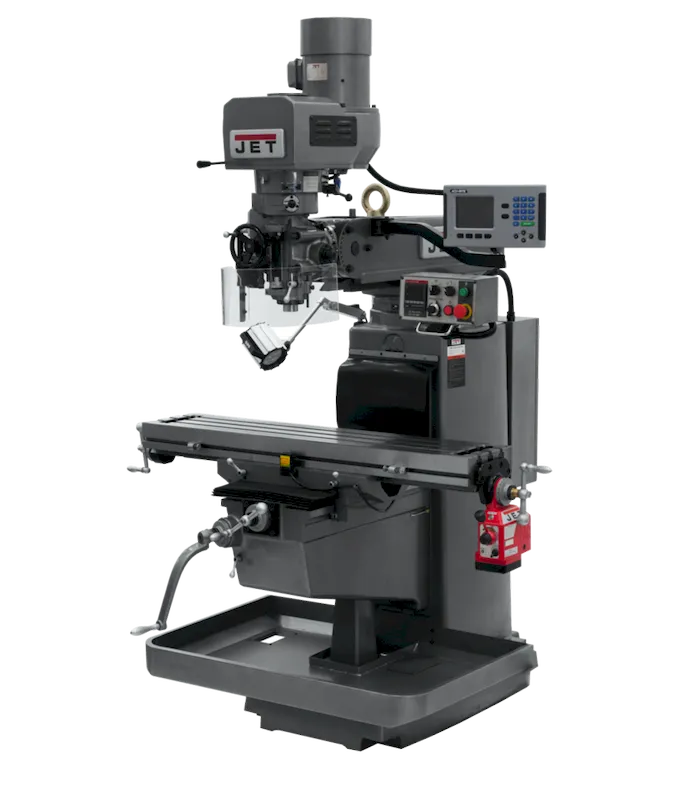

Jet JTM-1050EVS2/230 Mill 3Axis Acu-Rite 200S DRO-KNEE X-Axis (690624)

The Jet JTM-1050EVS2/230 Mill 3Axis Acu-Rite 200S DRO-KNEE X-Axis (690624) is a versatile and powerful machine built for precise metalworking applications. Its robust construction, featuring Meehanite® cast iron, ensures rigidity and vibration dampening for accurate results. The electronically controlled variable speed motor allows for adjustments between 60 and 4,500 RPM to match the specific needs of your project.

KEY FEATURES AND BENEFITS:Digital Readout (DRO): The Acu-Rite 200S DRO system provides real-time readouts on all three axes (X, Y, and Z) for improved accuracy and positioning.Powerfeed: The X-axis powerfeed automates feed rates, simplifying repetitive tasks and reducing operator fatigue.Swing-away Control Box: The control box features an emergency stop button and keeps all controls within easy reach for convenient operation.Automatic Oiler: This system automatically lubricates the machine at adjustable intervals, extending tool and machine life.Safety Features: The heavy-duty spindle brake stops the spindle and cuts power immediately for added safety. The relocated electrical box houses two 115V outlets for powering accessories.SPECIFICATIONS:Table Size: 10″ x 50″Spindle Taper: R-8Spindle Speeds: Variable, 60 – 4,500 RPMQuill Travel: 5″Digital Readout: Acu-Rite 200SPowerfeed: X-AxisMotor: 3 HP, 230V, 3 PhaseOverall Dimensions: 66″ x 63″ x 87″Weight: 2,860 lbsHOW TO USE:Step 1: Place the mill on a flat, stable surface. Use the built-in leveling system to ensure the machine is correctly positioned without needing to lift it.Step 2: Power on the machine and set the desired spindle speed using the electronic variable speed control, which ranges from 60 to 4,500 RPM.Step 3: Secure your workpiece on the 10″ x 50″ table, ensuring it is properly clamped to prevent movement during operation.Step 4: Utilize the Acu-Rite 200S DRO to accurately position your workpiece along the X, Y, and Z axes.Step 5: Activate the X-axis powerfeed to automatically move the table, ensuring a consistent feed rate for your milling process.Step 6: Monitor the automatic oiler to ensure the machine’s components are adequately lubricated, which will help prolong tool life and maintain smooth operation.Step 7: Use the spindle brake to quickly stop the spindle if necessary, and make sure the emergency stop button on the control box is easily accessible for quick power cut-off.BENEFITS OF USING THE Jet JTM-1050EVS2/230 Mill 3Axis Acu-Rite 200S DRO-KNEE X-Axis (690624):Precision and Accuracy: The Acu-Rite 200S DRO provides precise readouts, ensuring accurate positioning for all milling tasks.Reduced Operator Fatigue: The X-axis powerfeed automates repetitive movements, reducing manual effort and increasing efficiency.Easy Operation: Features like the swing-away control box and automatic oiler make the machine user-friendly and easy to maintain.Extended Machine Life: The robust construction and automatic lubrication system ensure long-term durability and consistent performance.Safety-Oriented Design: Safety features such as the heavy-duty spindle brake and emergency stop button provide added protection for the operator.FEATURES:Sturdy Meehanite® Cast Iron Construction: Offers exceptional rigidity and vibration dampening, essential for accurate milling operations.Electronically Controlled Variable Speed: Allows for a wide range of speed adjustments (60 – 4,500 RPM) to suit various materials and cutting conditions.X-Axis Powerfeed: Automates table movement for consistent feed rates and reduced manual labor.Automatic Lubrication: Ensures critical components are well-lubricated, extending the machine’s operational life.Heavy-Duty Spindle Brake: Provides quick stopping capability for enhanced safety during operations.Spacious Worktable: The 10″ x 50″ table accommodates a wide range of workpiece sizes for diverse applications.Acu-Rite 200S DRO: Provides accurate digital readouts for the X, Y, and Z axes, improving measurement precision.Hardened and Precision-Ground Table and Ways: Ensures durability and smooth, precise movements with minimal friction.Turcite-B Coated Ways: Reduces friction and vibration on the X and Y axes, enhancing the smoothness of travel.Convenient Features: Includes a swing-away LED work lamp, chip pan for easy waste collection, dual locks for stability, way covers, a drawbar, and a toolbox with essential tools.
