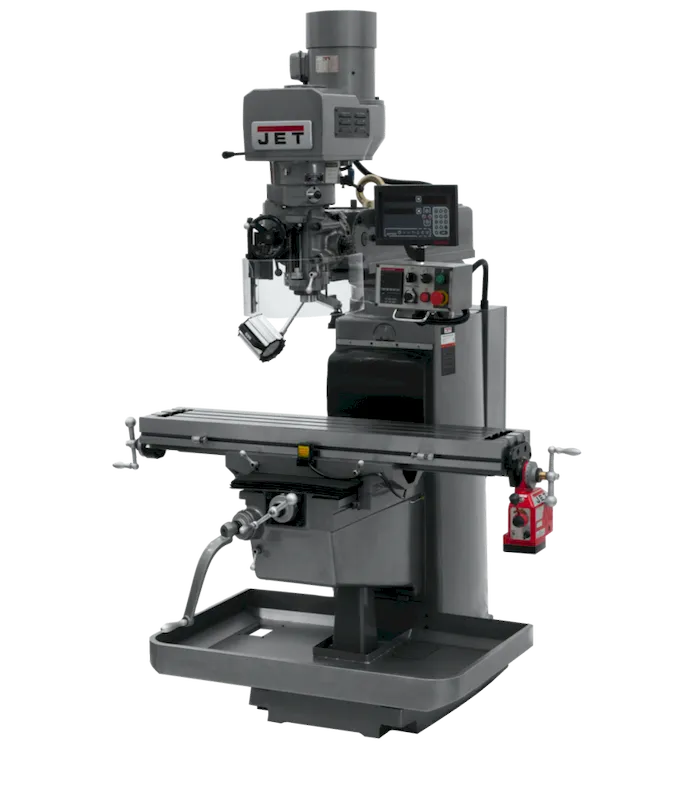

Jet JTM-1050EVS2/230 Mill w/Newall DP700 DRO X-Axis Powerfeed (690634)

The Jet JTM-1050EVS2/230 Mill w/Newall DP700 DRO X-Axis Powerfeed (690634) is a powerful and versatile electronic variable speed milling machine designed for demanding metalworking applications. Constructed with a rigid Meehanite® cast iron base for exceptional stability and vibration dampening, this mill delivers consistent performance and precise results. The variable speed control allows you to adjust the spindle speed (from 60 to 4500 RPM) to perfectly match the material you’re working with, ensuring clean cuts and optimal tool life.

KEY FEATURES AND BENEFITS:Enhanced Accuracy and Efficiency:Newall DP700 Digital ReadOut (DRO) provides real-time position data for X and Y axes, ensuring accurate and repeatable cuts.X-axis powerfeed automates material movement for consistent feed rates and improved machining efficiency.Designed for Long-lasting Performance:Meehanite® cast iron base for superior rigidity and vibration dampening.Electronic variable speed control (60-4500 RPM) for optimal cutting performance.Automatic oiler ensures proper lubrication, minimizing wear and tear.Heavy-duty spindle brake provides quick stop for added safety.Electrical box with two 115V outlets for powering accessories.SPECIFICATIONS:Overall Dimensions: 66″ x 63″ x 87″ (L x W x H)Weight: 2,860 lbsTable Size: 10″ x 50″Spindle Travel: 5″Table Cross Travel: 14-3/4″Motor: 3 HP, 230V, 3-PhaseHOW TO USE:

Follow these steps to operate the Jet JTM-1050EVS2/230 Milling Machine effectively:

Adjust spindle speed using electronic variable speed control.Utilize X-axis powerfeed for automated material feed.Monitor position and accuracy with the Newall DP700 DRO.Maintain lubrication with the automatic oiler.Ensure safety with the heavy-duty spindle brake and swing-away control box.BENEFITS OF USING Jet JTM-1050EVS2/230 Mill w/Newall DP700 DRO X-Axis Powerfeed (690634):Reliable performance for machinists and metalworkers.Versatile capabilities for a wide range of milling tasks.Precision and efficiency enhancements with DRO and powerfeed.FEATURES:Internally cooled spindle head for extended bearing and motor life.Hardened and precision-ground table and ways for increased accuracy.Turcite-B coated X and Y axes for reduced vibration.Swing-away safety shield and LED work lamp for operator safety and visibility.Chip pan, dual locks, way covers, drawbar, and toolbox included for convenience.
