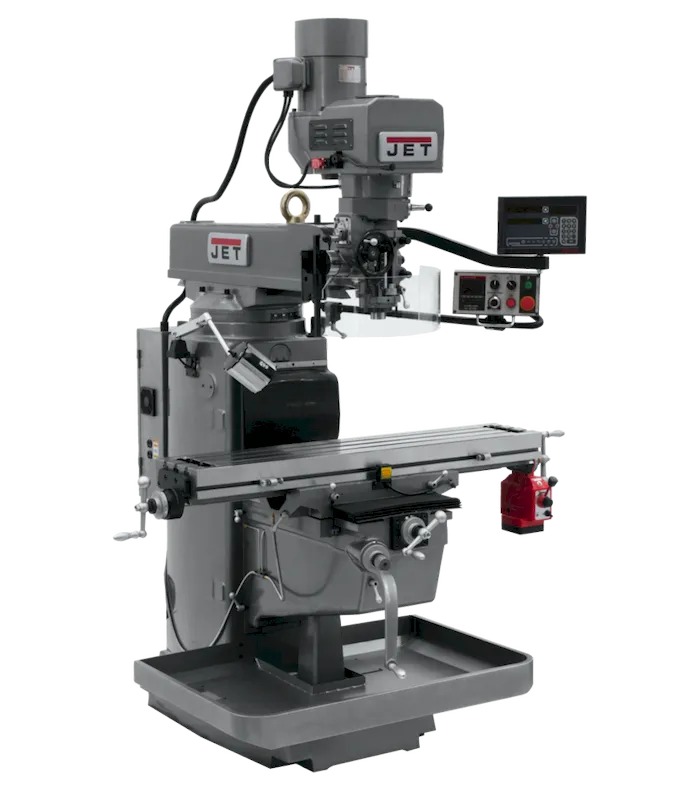

Jet JTM-1050EVS2 Mill w/Newall DP700 3X (K) DRO & X Powerfeed (690639)

The Jet JTM-1050EVS2 Mill w/Newall DP700 3X (K) DRO & X Powerfeed (690639) is a versatile and robust milling machine designed for demanding metalworking applications. This powerful machine boasts a durable Meehanite® cast iron base and column, ensuring vibration dampening and lasting precision. The variable speed spindle offers a wide range of speeds (60-4,500 RPM) to tackle various materials and cutting tasks.

KEY FEATURES AND BENEFITS:Meehanite® Cast Iron Construction: Provides rigidity and vibration dampening for precise milling operations.Variable Speed Spindle: Offers a range of 60-4,500 RPM to handle diverse materials and applications.Newall DP700 Digital Readout (DRO): Enables precise tool positioning on X, Y, and Z axes, enhancing machining accuracy.X-Axis Power Feed: Automates material feeding, reducing operator fatigue and improving workflow.Spacious Worktable: The 10″ x 50″ table provides ample space for various projects.5-Inch Quill Travel: Offers flexibility for handling different workpiece sizes.Head Swiveling: Capable of 90°左右 and 45°前后 head swiveling for versatile machining angles.Swing-Away Control Box: Includes an emergency stop button for operator safety and easy access to controls.Automatic Oiler: Ensures consistent lubrication for extended machine life.Heavy-Duty Spindle Brake: Prevents accidental startups and enhances safety.LED Work Lamp: Improves visibility and accuracy during cutting.Additional Features: Includes a chip pan, swing-away safety shield, way covers, drawbar, and toolbox with tools for enhanced functionality.SPECIFICATIONS:Table Size (L x W): 10″ x 50″Quill Diameter: 3-3/8″Number of Spindle Speeds: VariableRange of Spindle Speeds (RPM): 60 – 4,500Spindle Travel: 5″Max Distance Spindle to Table: 20-3/4″Collet Capacity: 1/8″ – 7/8″Work Table Weight Capacity: 840 lbsMotor: 3 HP, 230V, 3 PhaseOverall Dimensions (L x W x H): 66″ x 63″ x 87″Weight: 2,860 lbsHOW TO USE:Step 1: Position the mill on a stable surface and use the built-in leveling system to adjust the base.Step 2: Connect the machine to a 230V, 3-phase power supply.Step 3: Set the desired spindle speed using the variable speed control, within the range of 60 to 4,500 RPM.Step 4: Secure your workpiece on the 10″ x 50″ table using appropriate clamps.Step 5: Use the Newall DP700 DRO to position your tool accurately on the X, Y, and Z axes.Step 6: Engage the X-axis power feed to automate material feeding during milling operations.Step 7: Ensure the automatic oiler is functioning to maintain proper lubrication.Step 8: Utilize the spindle brake for safe machine operation, and ensure the LED work lamp is providing adequate lighting.BENEFITS OF USING THE Jet JTM-1050EVS2 Mill w/Newall DP700 3X (K) DRO & X Powerfeed (690639):Enhanced Precision: The Newall DP700 DRO system improves tool positioning accuracy, ensuring precise machining.Increased Productivity: The X-axis power feed automates material movement, reducing manual effort and increasing efficiency.Versatile Operations: The variable speed spindle and head swiveling capabilities enable handling of diverse materials and complex tasks.Durable and Reliable: The Meehanite® cast iron construction and automatic lubrication system extend the machine’s lifespan.Safety and Convenience: Features like the swing-away control box, heavy-duty spindle brake, and LED work lamp enhance user safety and operational convenience.FEATURES:Features an emergency stop button for added safety and control access.Maintains consistent lubrication for machine components.Enhances safety by preventing accidental startups.Ensures adequate lighting for precise machining.Includes chip pan, safety shield, way covers, drawbar, and toolbox for comprehensive functionality.
