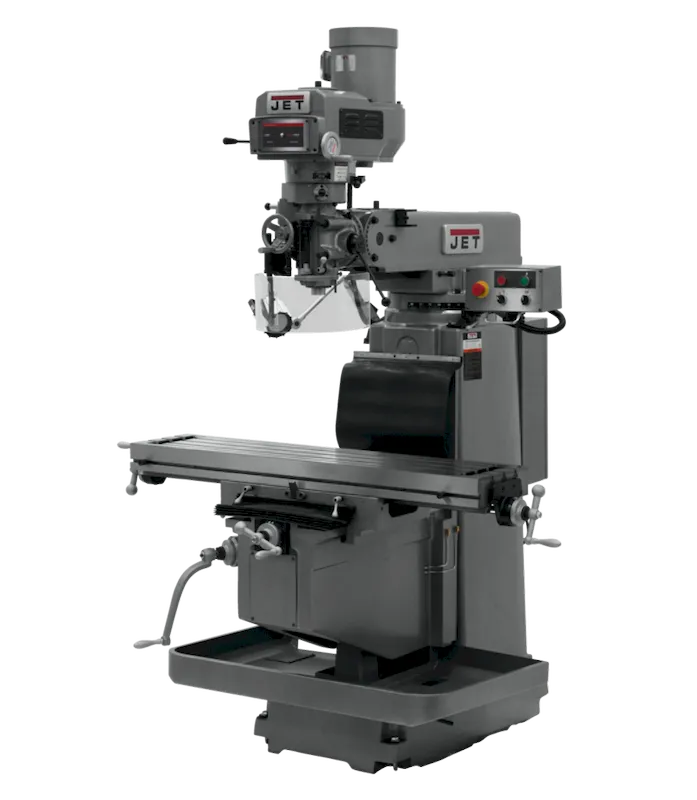

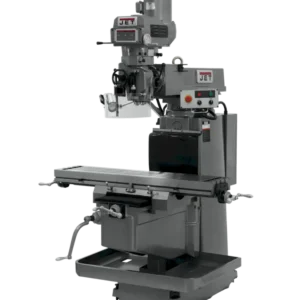

Jet JTM-1254VS Mill w/ ACU-RITE 300S 3X (Q) DRO X Pwrfd & APD (698159)

Jet JTM-1254VS Mill w/ ACU-RITE 300S 3X (Q) DRO X Pwrfd & APD (698159) is a heavy-duty vertical milling machine designed for precision and efficiency. Built with durability in mind, this machine features certified Meehanite castings and high-quality components to ensure long-lasting performance. Its 12″ x 54″ table provides ample workspace for various metalworking applications.

KEY FEATURES AND BENEFITS:ACU-RITE 300S DRO: Provides accurate measurements for precise machining.X Power Feed: Improves efficiency and productivity by automating the material removal process.Air Drawbar: Enables quick and easy tool changes.Automatic Lubrication: Reduces maintenance and extends machine life.Quick Nut Spindle Feed: Facilitates smooth and efficient spindle adjustments.Certified Meehanite Castings: Ensures durability and rigidity.Easy Leveling: Conveniently level the machine without raising it off the floor.SPECIFICATIONS:Digital Readout: ACU-RITE 300SNumber of Axis: 3 (Quill)Powerfeed: X-AxisPower Draw Bar: PneumaticSpindle Taper: NT40Table Size: 12 x 54 inchesQuill Diameter: 4-1/8 inchesSpindle Speed Range: 80-3,800 RPMQuill Down Feed Rates: .0015, .003, .008 IPRSpindle Travel: 5 inchesHead Movement: 90° Right & Left, 45° Forward & BackMax Distance Spindle to Table: 23 inchesDistance Spindle to Column (Max): 27-3/4 inchesDistance Spindle to Column (Min): 7-1/2 inchesTable Longitudinal Travel: 33-7/8 inchesTable Longitudinal Travel with Powerfeed: 28-1/4 inchesTable Cross Travel: 15-1/3 inchesT-Slot Centers: 2-1/2 inchesWork Table Weight Capacity: 925 lbsTravel of Knee: 19-1/4 inchesTravel of Ram: 25 inchesSaddle Width: 25-5/8 inchesColumn Width: 14-1/4 inchesMotor: 5 HP, 230/460V, 3 PhOverall Dimensions: 92-1/8 x 79-7/8 x 104-1/4 inchesWeight: 3696 lbsHOW TO USE:Safety First:Always wear appropriate safety gear, including eye protection, ear protection, and machine shop attire.Machine Setup:Ensure the machine is properly leveled and securely anchored to the floor.Tool Installation:Install the desired cutting tool into the spindle, using the air drawbar for quick and secure clamping.Workpiece Setup:Securely clamp the workpiece to the machine table using appropriate clamping devices.Zero Offset:Set the zero point for the DRO to establish the reference point for machining operations.Spindle Speed and Feed Rate:Select the appropriate spindle speed and feed rate based on the material and cutting tool being used.Machining Operation:Carefully execute the desired machining operation, using the power feed for efficient material removal.Coolant Application:Apply coolant as needed to improve tool life and prevent workpiece overheating.Chip Removal:Regularly clear chips from the machine to prevent obstructions and maintain cutting efficiency.Machine Maintenance:Perform routine maintenance tasks, such as cleaning, lubrication, and inspection, to ensure optimal performance and longevity.BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 300S 3X (Q) DRO X Pwrfd & APD (698159):The Jet JTM-1254VS milling machine offers several advantages for metalworking professionals:Precision Machining: Delivers accurate and repeatable results due to its rigid construction and high-precision components.Increased Productivity: Features like the X power feed and air drawbar enhance efficiency and reduce setup times.Durability and Reliability: Built with heavy-duty materials and designed for continuous operation.Ease of Use: User-friendly controls and automatic lubrication system simplify operation and maintenance.Versatility: Suitable for a wide range of metalworking applications.FEATURES:Certified Meehanite® CastingsPrecision bored and honed milling headHigh precision Class 7 spindle bearingsQuick Spindle Feed NutThree-stage power downfeed with automatic stopHeavy-duty spindle brakePrecision hardened and ground ways and tableThree Precision ground t-slotsTurcite B on X & Y AxisAdjustable gibs throughoutCSA/CUS certified
