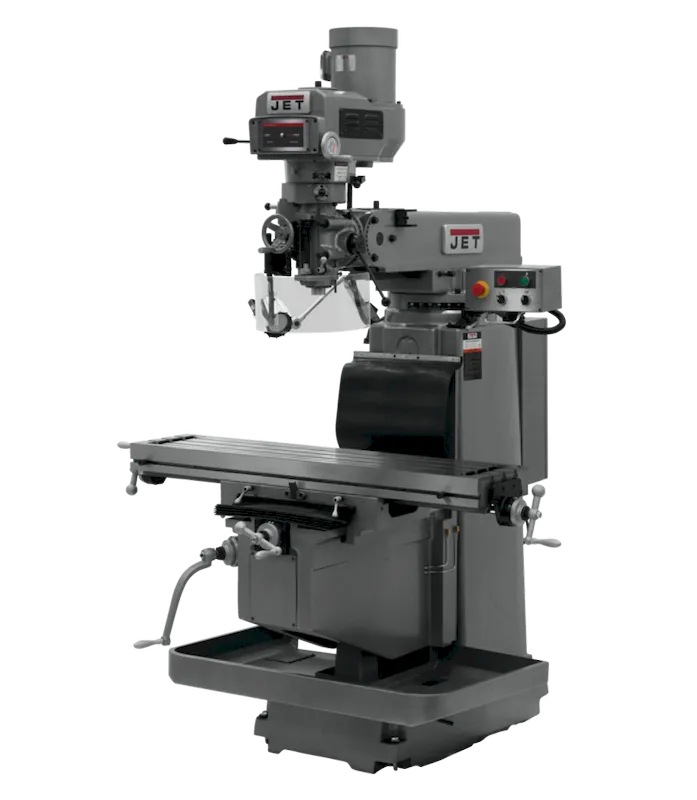

Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO & X Powerfeed (698152)

Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO & X Powerfeed (698152) is a robust and precise vertical milling machine designed for efficient metalworking. Equipped with an Acu-Rite 303 3X (K) DRO and X Powerfeed, this machine offers accurate control and enhanced productivity. Built with certified Meehanite castings, it ensures durability and stability during operation.

KEY FEATURES AND BENEFITS:Precision and Accuracy: Acu-Rite 303 3X (K) DRO provides precise measurements for accurate cuts.Efficiency: X Powerfeed automates feed movements, increasing productivity.Durability: Certified Meehanite castings and high-quality components ensure long-lasting performance.Convenience: Quick nut spindle feed and automatic lubrication simplify operation and maintenance.Versatility: Wide range of spindle speeds accommodates different materials and applications.SPECIFICATIONS:Digital Readout: ACU-RITE 300SNumber of Axis: 3 (Knee)Powerfeed: X-AxisSpindle Taper (In. x TPI): NT40Table Size (L x W) (In.): 12 x 54Quill Diameter (In.): 4-1/8Number of Spindle Speeds: VariableRange of Spindle Speeds (RPM): 80 – 3,800Quill Down Feed Rates (IPR): .0015, .003, .008Spindle Travel (In.): 5Head Movement (Deg.): 90° R & L, 45° F & BMax Distance Spindle to Table (In.): 23Distance Spindle to Column (Max.) (In.): 27-3/4Distance Spindle to Column (Min.) (In.): 7-1/2Table Longitudinal Travel (In.): 33-7/8Table Longitudinal Travel With Powerfeed (In.): 28-1/4Table Cross Travel (In.): 15-1/3T-Slots Number and Size (In.): -T-Slot Centers (In.): 2-1/2Work Table Weight Capacity (Lbs.): 925Travel of Knee (In.): 19-1/4Travel of Ram (In.): 25Saddle Width (In.): 25-5/8Column Width (In.): 14-1/4Motor (HP): 5HP, 230/460V, 3PhOverall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4Weight (Lbs.): 3696HOW TO USE:Set up the workpiece:Secure the workpiece on the milling machine table using clamps or vices.Select the appropriate cutting tool:Choose a cutting tool compatible with the material being machined and the desired cutting depth.Set spindle speed and feed rate:Adjust the spindle speed and feed rate based on the material and cutting conditions.Zero the DRO:Set the digital readout to zero before starting the machining process.Engage the power feed:Turn on the power feed for automated feed movements.Perform the milling operation:Carefully guide the cutting tool along the desired path.Monitor the cutting process:Observe the workpiece and cutting tool for any signs of wear or damage.BENEFITS OF USING Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO & X Powerfeed (698152):Increased productivity: The X Powerfeed and variable spindle speeds enhance efficiency.Improved accuracy: The Acu-Rite DRO ensures precise cuts and dimensions.Reduced downtime: Automatic lubrication and easy maintenance minimize machine downtime.Versatile applications: Handles a wide range of materials and cutting tasks.Durable construction: Built to last with certified Meehanite castings and high-quality components.FEATURES:Certified Meehanite® CastingsPrecision bored and honed milling headHigh precision Class 7 spindle bearingsQuick Spindle Feed NutThree-stage power downfeed with automatic stopHeavy-duty spindle brakePrecision hardened and ground ways and tableThree Precision ground t-slotsTurcite B on X & Y AxisAdjustable gibs throughoutCSA/CUS CertifiedSpindle GuardSpindle Brake for rapid stopping of the spindleAutomatic Lubrication every 180 minutesQuick nut for spindle feedJET exclusive new casting for easier levelingTwo 115V outlets on electrical box for Powerfeeds onlySpindle Safety GuardLed Machine LampDual Locks on All Moveable SurfacesChip PanDraw barTool box with tools
