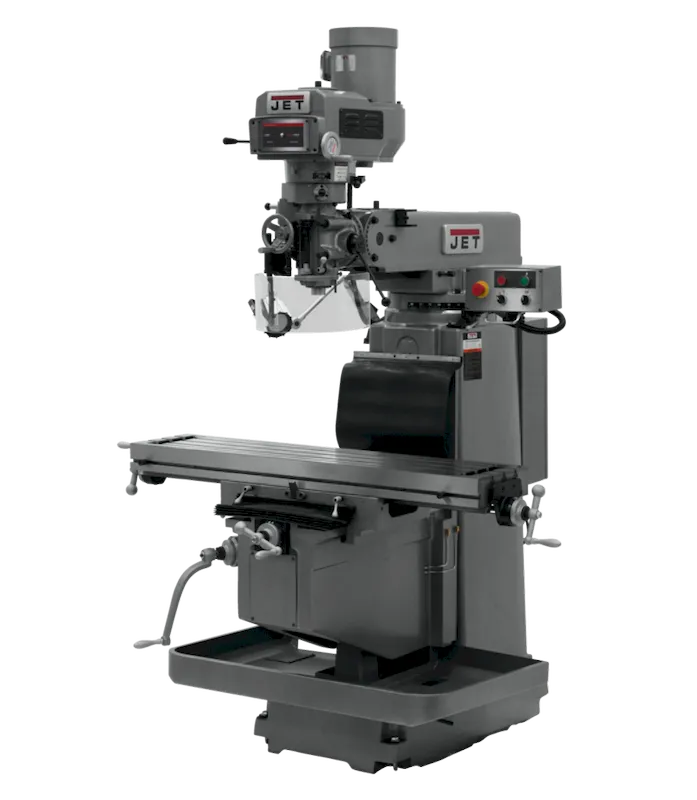

Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO XYZ Pwrfds (698156)

Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO XYZ Pwrfds (698156) is a heavy-duty vertical milling machine designed for precision and efficiency. It features a 12″ x 54″ table size, variable speed control, and power feeds for the X, Y, and Z axes. Equipped with an Acu-Rite 303 3X (K) DRO, this machine ensures accurate measurements and control over your machining operations.

KEY FEATURES AND BENEFITS:Variable Speed Control: Offers flexibility in cutting speeds for various materials and applications.Acu-Rite 303 3X (K) DRO: Provides precise measurements and control for accurate machining.Power Feeds: Enhances productivity and efficiency by automating feed movements.Certified Meehanite Castings: Ensures durability, stability, and vibration dampening.Automatic Lubrication: Maintains machine health and extends component life.Quick Nut Spindle Feed: Improves operation ease and efficiency.SPECIFICATIONS:Spindle Taper: NT40Table Size: 12″ x 54″Quill Diameter: 4-1/8″Spindle Speed Range: 80-3,800 RPMQuill Down Feed Rates: .0015, .003, .008 IPRSpindle Travel: 5″Head Movement: 90° R & L, 45° F & BMax Distance Spindle to Table: 23″Distance Spindle to Column (Max.): 27-3/4″Distance Spindle to Column (Min.): 7-1/2″Table Longitudinal Travel: 33-7/8″Table Longitudinal Travel With Powerfeed: 28-1/4″Table Cross Travel: 15-1/3″T-Slot Centers: 2-1/2″Work Table Weight Capacity: 925 lbsTravel of Knee: 19-1/4″Travel of Ram: 25″Saddle Width: 25-5/8″Column Width: 14-1/4″Motor: 5HP, 230/460V, 3PhOverall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″Weight: 3696 lbsHOW TO USE:Set up the workpiece: Securely clamp the workpiece to the machine table using appropriate clamps and fixtures.Select cutting tool and spindle speed: Choose the correct cutting tool for the material and operation. Set the desired spindle speed based on the material and tool.Zero the DRO: Ensure accurate measurements by zeroing the DRO at the starting point of the workpiece.Program desired movements: Input the desired X, Y, and Z axis movements using the DRO controls.Engage power feeds: Activate the power feeds for automated movement of the table or head.Monitor cutting process: Observe the cutting process and make adjustments as needed.Complete the machining operation: Continue the process until the desired part is produced.BENEFITS OF USING Jet JTM-1254VS Mill w/ Acu-Rite 303 3X (K) DRO XYZ Pwrfds (698156):Increased productivity: Due to power feeds and variable speed control.Improved accuracy and precision: With the Acu-Rite DRO.Enhanced durability and longevity: With certified Meehanite castings.Reduced maintenance requirements: With automatic lubrication.Easier operation: With quick nut spindle feed.FEATURES:Certified Meehanite castingsPrecision bored and honed milling headHigh precision Class 7 spindle bearingsQuick Spindle Feed NutThree-stage power downfeed with automatic stopHeavy-duty spindle brakePrecision hardened and ground ways and tableThree Precision ground t-slotsTurcite B on X & Y AxisAdjustable gibbs throughoutCSA/CUS certifiedSpindle GuardSpindle BrakeAutomatic LubricationQuick nut for spindle feedJET exclusive new castingTwo 115V outlets on electrical box for Powerfeeds only
