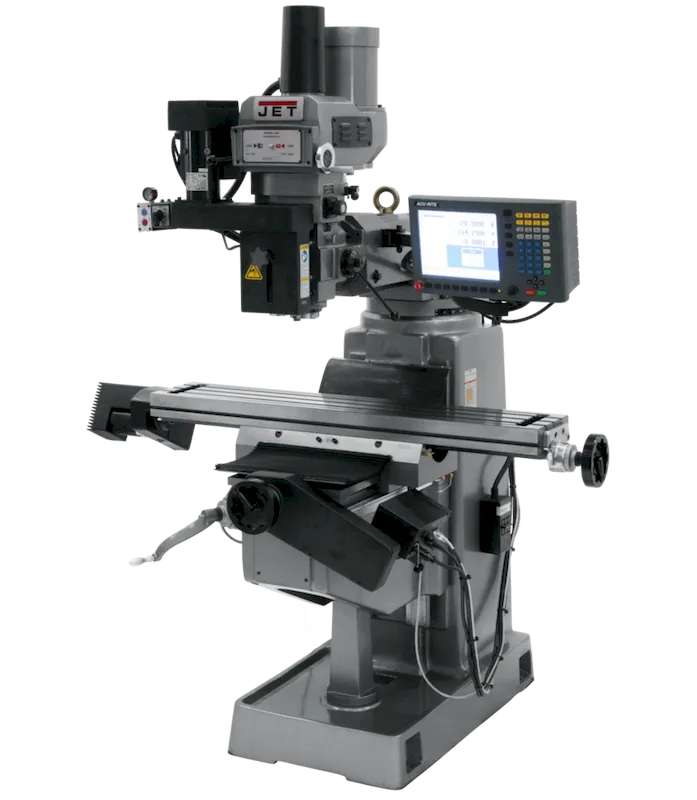

Jet JTM-4VS-1 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC (690950)

Jet JTM-4VS-1 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC (690950) is a precision CNC milling machine ideal for workshops and small-scale manufacturing. This versatile machine allows you to create intricate parts with increased accuracy and efficiency compared to manual machining.

KEY FEATURES AND BENEFITS:3-Axis CNC Control (X, Y, Z): Automate your machining process for repetitive tasks and achieve precise results.ACU-RITE G-2 MILLPWR Controller: Features a user-friendly interface, high-resolution display, and functionalities like program preview, jog control, and conversational programming.2 HP Variable Speed Motor: Provides ample power for a wide range of materials.Meehanite Cast Iron Base: Ensures stability and vibration dampening for smooth operation.Precision Ground Ball Screws: Minimize backlash for accurate lateral movements.Closed-Loop Feedback System: Utilizes linear encoders for exceptional positioning accuracy.Powerful DC Servo Motors: Deliver strong control for efficient machining.Manual Operation with Handwheels: Offers flexibility for setup and specific tasks.Large Work Table (9″ x 49″): Accommodates various project sizes.SPECIFICATIONS:CNC Package: ACU-RITE MILLPWR G2Number of Axis: 3Table Size (L x W): 9 x 49 in.Spindle Taper: R-8Quill Diameter: 3-3/8 in.Spindle Speeds: Variable (60 – 4,200 RPM)Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 in/revSpindle Travel: 5 in.Head Movement: 90° R & L, 45° F & BMax Distance Spindle to Table: 17-1/2 in.Distance Spindle to Column (Max): 19 in.Distance Spindle to Column (Min): 4-1/2 in.Collet Capacity: 1/8 – 7/8 in.Table Longitudinal Travel: 34 in.Table Cross Travel: 12 in.T-Slots (Number and Size): 3 – 5/8 in.T-Slot Centers: 2-1/2 in.Work Table Weight Capacity: 660 lbs.Travel of Knee: 14-1/2 in.Travel of Ram: 13-3/8 in.Overall Dimensions (L x W x H): 66 x 63 x 85 in.Motor: 2 HP, 115/230V, 1PhWeight: 2,420 lbs.HOW TO USE:Installation: Secure the mill on a level and stable surface following the manufacturer’s instructions. Ensure proper electrical connection based on voltage requirements.Software Setup: Install the ACU-RITE MILLPWR G2 CNC software on your computer and familiarize yourself with the interface.Part Design: Create your desired part design using CAD software and generate G-code files for the CNC controller.Material Setup: Secure your workpiece onto the mill’s table using clamps or a vise suitable for the material and project size.Loading G-code: Transfer the G-code file from your computer to the CNC controller using USB or Ethernet connectivity.Machine Setup: Set tool parameters, spindle speed, feed rates, and zero point references within the CNC controller.Dry Run: Perform a dry run of the program without the cutting tool to ensure proper toolpaths and avoid collisions.Machining: Once satisfied with the dry run, equip the mill with the appropriate cutting tool and initiate the machining process.Monitoring: Continuously monitor the machining process for any potential issues and adjust parameters as needed.BENEFITS OF USING Jet JTM-4VS-1 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC (690950):Improved Repeatability: Ensures consistent part dimensions across multiple production runs.Reduced Waste: Minimizes material waste through precise machining.Complex Part Machining: Enables creation of intricate parts with complex geometries.User-Friendly Operation: Offers a user-friendly CNC controller for simplified programming and operation.Manual and CNC Capabilities: Provides the flexibility of both automated and manual machining for a wider range of tasks.Durable Construction: Features a sturdy Meehanite cast iron base for long-lasting performance and vibration dampening.FEATURES:Precision ground ball screws for minimal backlashClosed-loop feedback system with Acu-Rite precision linear encoders for exceptional positioning accuracy (0.00005″ resolution)Powerful DC servo motors for efficient machiningHandwheels for manual operationUSB and Ethernet compatible CNC controllerSimplified interface with 12.1″ high-resolution display (1024 x 768) with 3D graphicsProgram preview for visualization before executionJog control for easy table movement3D contouring capability for machining complex shapesConversational programming for user-friendly creation and editing of programsBuilt-in calculator for performing calculations within the program
