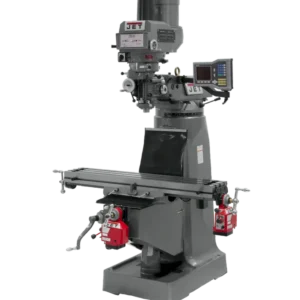

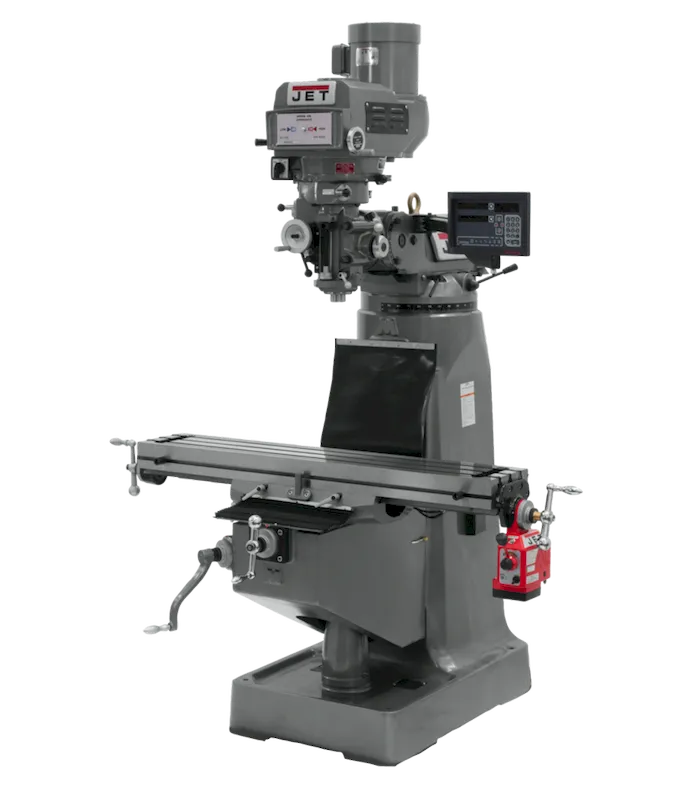

Jet JTM-4VS Mill 3-Axis Newall DP700 DRO (Q) X-Axis Powerfeed (690090)

Jet JTM-4VS Mill 3-Axis Newall DP700 DRO (Q) X-Axis Powerfeed (690090) is a professional-grade vertical milling machine designed for precision machining in demanding environments. Built with a rigid Meehanite® cast iron body, it ensures consistent performance and minimizes vibrations for accurate cuts. This model comes equipped with a 3-axis Newall DP700 DRO system for enhanced precision and an X-axis power feed for increased productivity.

KEY FEATURES AND BENEFITS:Precision Machining: Meehanite® casting and precision-ground components guarantee accuracy and repeatability in your workpieces.Versatility: Variable spindle speeds (60-4,200 RPM) and R-8 spindle taper allow for a wide range of tooling and material compatibility.Enhanced Control: The 3-axis Newall DP700 DRO system simplifies setup, improves accuracy, and streamlines your workflow.Increased Productivity: X-axis power feed automates repetitive tasks, saving time and effort.Durability: Built to withstand heavy use in professional settings, this mill is backed by a 2-year warranty.SPECIFICATIONS:Motor: 3 HP, 230/460V, 3-Phase (Please confirm with retailer)Spindle Speeds: Variable, 60-4,200 RPMSpindle Taper: R-8Quill Diameter: 3-3/8 inchesTable Size: 9″ x 49″Travel (X/Y/Z): 34″ / 12″ / 16″Weight: 2,420 lbsHOW TO USE:Preparation: Securely mount your workpiece to the table using appropriate clamps or fixtures.Tooling: Select and install the correct cutting tool for your material and desired operation.DRO Setup: Zero the DRO axes to your reference point on the workpiece.Spindle Speed: Adjust the spindle speed according to the material and tool recommendations.Cutting Parameters: Set the desired depth of cut and feed rate.Operation: Engage the power feed (if applicable) and carefully monitor the cutting process.Safety: Always wear appropriate safety gear and follow safe machining practices.BENEFITS OF USING THE Jet JTM-4VS Mill 3-Axis Newall DP700 DRO (Q) X-Axis Powerfeed (690090):Improved Accuracy: Achieve precise and repeatable results in your milling operations.Increased Efficiency: Save time and effort with automated features and a streamlined workflow.Versatility: Tackle a wide range of projects with various materials and tooling options.Professional-Grade Performance: Reliable and robust machine for demanding applications.FEATURES:Meehanite® castingPrecision-ground componentsVariable spindle speeds3-axis Newall DP700 DROX-axis power feedR-8 spindle taperLarge worktable2-year warranty
