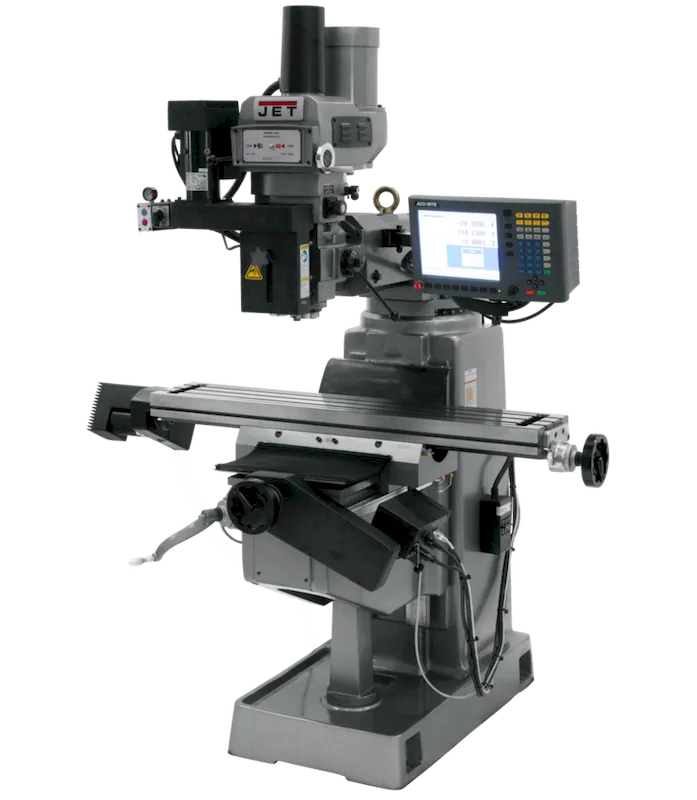

Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575)

Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575) offers the combined benefits of computer-controlled automation and manual operation. The Meehanite® cast iron base minimizes vibration and ensures machine stability during heavy-duty cutting. The ACU-RITE G-2 MILLPWR® CNC system allows you to program complex machining processes for consistent, repeatable results.

KEY FEATURES AND BENEFITS:2-axis CNC control system (ACU-RITE G-2 MILLPWR®) for programmed automationMeehanite® cast iron base for vibration dampening and stabilityPrecision-bored and honed milling head for cutting accuracyInternal spindle cooling extends bearing and motor life3HP motor with variable speed range (60-4500 RPM) for diverse materialsR8 spindle taper for compatibility with various toolingAutomatic lubrication system reduces maintenanceSwing-away spindle guard, LED work lamp, and emergency stop for safetySPECIFICATIONS:Capacity: 9″ x 49″ work tableMotor: 3HPSpindle Speed: 60-4500 RPM (variable)Spindle Taper: R8HOW TO USE:

Follow these steps for effective use of the Jet JTM-949EVS/230 Mill:

Ensure the machine is securely leveled using JET’s exclusive new casting.Power on the machine and adjust the variable speed range (60-4500 RPM) as per material requirements.Program machining processes using the ACU-RITE G-2 MILLPWR® CNC system for precise automation.Utilize the swing-away spindle guard, LED work lamp, and emergency stop for operator safety.BENEFITS OF USING Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575):Enhanced metalworking capabilities for workshops and machine shops.Precise operation and cutting accuracy due to precision-bored and honed milling head.Reduced maintenance and extended machine uptime with internal spindle cooling and automatic lubrication system.FEATURES:Computer-controlled automation with ACU-RITE G-2 MILLPWR® CNC systemVibration dampening and stability from Meehanite® cast iron baseExceptional cutting accuracy with precision-bored and honed milling headExtended bearing and motor life with internal spindle coolingPrecise depth control with three-stage power downfeed and automatic stopQuick stopping power with heavy-duty spindle brakeOperator safety features including swing-away spindle guard, LED work lamp, and emergency stopConvenient machine maintenance with automatic lubrication system (every 30 minutes)Easy access controls with inverter drive system and emergency stop on swing-away control arm
