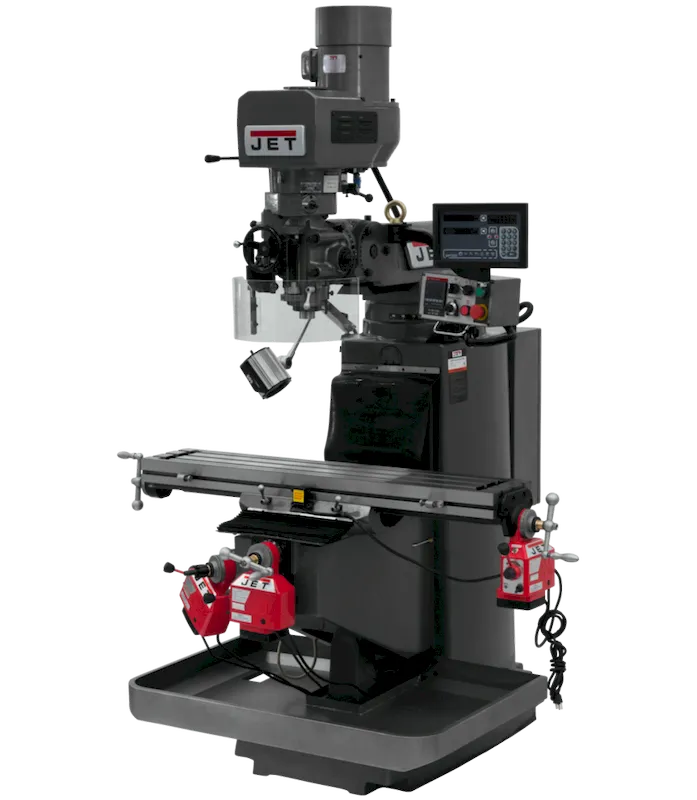

Jet JTM-949EVS Mill 3-Ax Newall DP700 DRO XYZ-Axis Powerfeeds (690549)

Jet JTM-949EVS Mill 3-Ax Newall DP700 DRO XYZ-Axis Powerfeeds (690549) is a versatile and powerful vertical knee mill designed for precision metalworking applications. This machine boasts a rigid Meehanite casting base for vibration dampening and excellent machining accuracy. The variable speed electronic control allows for tackling a wide range of materials, while the Newall DP700 Digital Readout (DRO) provides precise positioning on all three axes (X, Y, and Z) for superior control.

KEY FEATURES AND BENEFITS:Rigid Construction: Delivers exceptional stability and minimizes deflection during heavy cutting for accurate results.Variable Speed Control: Offers optimal speed adjustments for various materials and applications.Digital Readout (DRO): Ensures precise positioning on X, Y, and Z axes for intricate machining tasks.Powerfeeds on All Axes: Automates table and quill movement, reducing operator fatigue and enhancing consistency.Large Work Table (9″ x 49″): Provides ample workspace for diverse milling projects.Automatic Oiler: Simplifies maintenance by automatically lubricating the machine for smooth operation.Heavy-Duty Spindle Bearings: Supports the spindle for maximum rigidity in demanding cutting applications.Internal Spindle Cooling: Extends bearing, belt, and motor life for long-lasting performance.Hardened and Ground Ways: Ensures smooth table and quill movement for precise machining.Turcite-B Coated X and Y Ways: Reduces vibration and enhances movement smoothness.SPECIFICATIONS:Spindle Travel: 5 inchesTable Cross Travel: 12-5/8 inchesQuill Diameter: 3-3/8 inchesSpindle Speeds: Variable, 60 to 4,500 RPMTable Size: 9 inches x 49 inchesWork Table Weight Capacity: 720 lbsMotor: 3 HP, 230V, 3-PhaseOverall Dimensions: 67 inches x 64 inches x 86 inchesWeight: 2,420 lbsHOW TO USE:Machine Setup: Secure the workpiece onto the mill table using clamps or a vise. Ensure the machine is level and properly lubricated.Speed and Feed Selection: Choose the appropriate spindle speed and feed rate based on the material and desired cut depth. Refer to a machining chart for recommended settings.Positioning: Utilize the handwheels or power feeds to position the cutting tool (mill bit) precisely according to your project requirements. The DRO display will provide real-time position feedback.Machining: Engage the spindle and initiate the cutting operation. Monitor the process and adjust the feed rate or depth of cut as needed.Machine Shutdown: Once complete, power off the machine, disengage the spindle, and carefully remove the workpiece.BENEFITS OF USING Jet JTM-949EVS Mill 3-Ax Newall DP700 DRO XYZ-Axis Powerfeeds (690549):Enhanced Precision and Control: Achieve exceptional accuracy in milling operations with the rigid construction, DRO system, and power feeds.Increased Efficiency: Automate repetitive movements with power feeds, minimizing operator fatigue and maximizing productivity.Versatility: Tackle a wide range of materials and projects with the variable speed control and large work table.Durability: Built with high-quality components like Meehanite casting and heavy-duty bearings for long-lasting performance.User-Friendly Operation: The intuitive controls and digital readouts make the machine easy to learn and operate.FEATURES:Newall DP700 Digital Readout (DRO)Swing-away control box with E-stopInternal spindle coolingAutomatic oilerHeavy-duty spindle bearingsHardened and ground waysTurcite-B coated X and Y waysSwing away safety shieldLED work lampChip panDual locks on all moveable surfacesWay coversDrawbarTool box with tools
