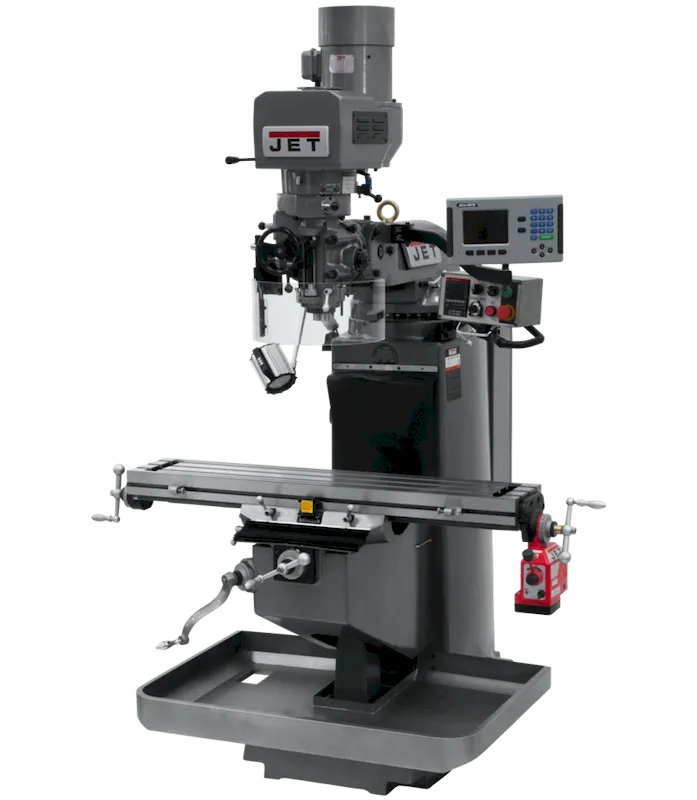

Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690525)

The Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690525) is a heavy-duty machine designed for precise metalworking applications. With a rigid Meehanite casting construction, variable speed control, and a digital readout (DRO), this mill offers exceptional accuracy and control. The automatic oiler ensures smooth operation, while the safety features like the heavy-duty spindle brake prioritize user safety.

KEY FEATURES AND BENEFITS:Rigid Construction: Meehanite casting ensures vibration-free operation and maintains precision.Variable Speed Control: (60-4,500 RPM) allows for optimal cutting speeds for various materials.Digital Readout (DRO): (Acu-Rite 200S) provides precise positioning of the cutting tool.X-Axis Powerfeed: Enables automated and consistent material feeding for efficient operation.Automatic Oiler: Ensures proper lubrication for extended machine life.Safety Features: Spindle brake and e-stop button for safe operation.Large Table: (9″ x 49″) accommodates a wide range of workpieces.Durable Design: Class 7 spindle bearings offer maximum rigidity for heavy cutting.Internal Spindle Cooling: Extends bearing, belt, and motor life.User-Friendly Controls: Swing-away control box with easy-to-reach buttons.LED Work Lamp: Enhances visibility of the work area.Multiple Accessories: Includes chip pan, way covers, drawbar, and toolbox with tools.SPECIFICATIONS:Table Size (L x W): 9 x 49 in.Quill Diameter: 3-3/8 in.Spindle Speeds: Variable, 60 – 4,500 RPMSpindle Travel: 5 in.Table Longitudinal Travel: 36 in. (30-3/4 in. with powerfeed)Table Cross Travel: 12-5/8 in.Worktable Weight Capacity: 720 lbs.HOW TO USE:Assembly and Setup: Refer to the user manual for detailed assembly instructions. Secure the machine to a stable and level surface. Install the cutting tool and adjust its height and position using the quill feed and DRO.Power On and Speed Selection: Turn on the machine and select the appropriate spindle speed based on the material and desired cutting rate.Material Positioning: Secure the workpiece to the table using clamps or a vise.Milling Operation: Engage the X-axis powerfeed (if desired) and initiate cutting by moving the table or head along the X, Y, or Z axis using the handwheels. The DRO provides real-time feedback on the cutting tool’s position.Safety: Always wear safety glasses, gloves, and appropriate protective clothing while operating the machine. Use the e-stop button to stop operation immediately in case of emergencies.BENEFITS OF USING Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690525):Precision Metalworking: Achieve accurate cuts and finishes on various metal parts.Increased Efficiency: X-axis powerfeed automates material feeding for faster production.Durable Performance: Rigid construction and high-quality components ensure long-lasting operation.User Safety: Safety features prioritize operator well-being.Improved Work Visibility: LED work lamp illuminates the working area for better control.FEATURES:Meehanite casting constructionVariable speed control (60-4,500 RPM)Digital readout (DRO) (Acu-Rite 200S)X-axis powerfeedAutomatic oilerHeavy-duty spindle brakeLarge table (9″ x 49″)Class 7 spindle bearingsInternal spindle coolingSwing-away control boxLED work lampChip panWay coversDrawbarToolbox with tools
