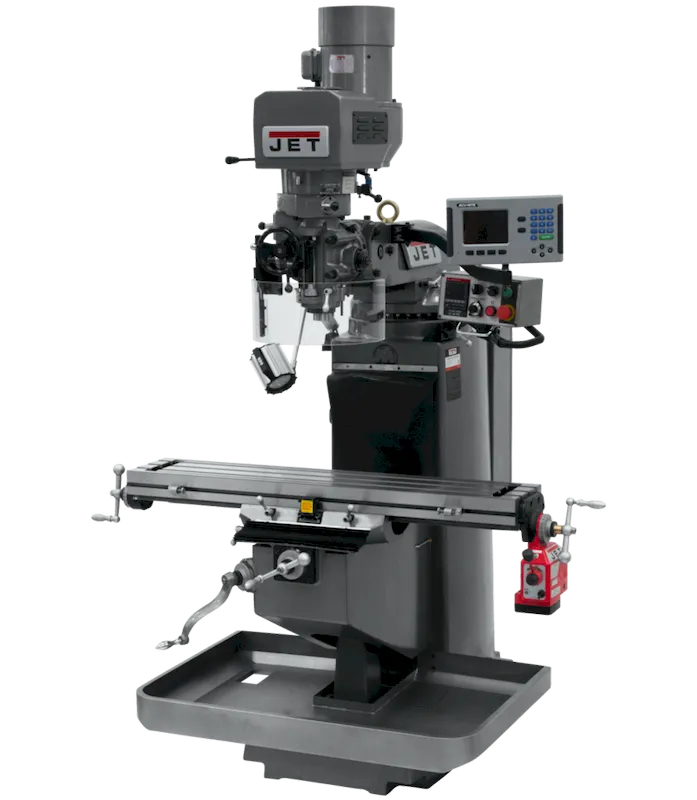

Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690530)

The Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690530) is a robust vertical milling machine designed for precise metalworking applications. Its Meehanite cast iron base ensures rigidity and vibration dampening for clean cuts. The variable speed spindle (60-4,500 RPM) allows for machining a wide range of materials. The 3-axis Acu-Rite 200S DRO system provides accurate positioning of the cutting tool, while the X-axis powerfeed automates table movement for efficient operation.

KEY FEATURES AND BENEFITS:Rigid Meehanite casting base: Offers exceptional stability and minimizes vibration for accurate machining.Variable speed spindle (60-4,500 RPM): Provides optimal speed control for various materials and applications.3-axis Acu-Rite 200S DRO system: Ensures precise tool positioning and simplifies operation.X-axis powerfeed: Automates table movement for increased efficiency and operator comfort.Heavy-duty construction: Designed for demanding use and long-lasting performance.Large table (9″ x 49″): Accommodates a wide range of workpieces.Automatic oiler: Simplifies maintenance and extends machine life.Spindle head cooling: Maintains optimal operating temperature for extended bearing and motor life.Digital readout and swing-away control panel: Enhances user experience and simplifies operation.Multiple T-slots: Provide secure workholding options.LED work lamp: Improves visibility for precise machining.SPECIFICATIONS:Spindle Travel: 5 in.Table Cross Travel: 12-5/8 in.T-Slot Centers: 2-1/2 in.Min. Distance Spindle to Column: 4-3/4 in.Quill Down Feed Rates: .0015 – .003 – .006 in/revWork Table Weight Capacity: 720 lbs.Quill Diameter: 3-3/8 in.Collet Capacity: 1/8 – 7/8 in.Overall Dimensions (L x W x H): 67 x 64 x 86 in.Number of Spindle Speeds: VariableRange of Spindle Speeds: 60 – 4,500 RPMNumber of Axis: 3 (Quill)Motor: 3HP, 230V, 3 PhaseDigital Readout: ACU-RITE 200SPowerfeed: X-AxisWeight: 2,420 lbs.HOW TO USE:Installation: Secure the mill to a stable and level surface. Refer to the user manual for specific mounting instructions.Set-up: Mount the desired cutting tool in the spindle using the appropriate collet or arbor. Set the spindle speed and feed rate based on the material and application.Positioning: Utilize the 3-axis DRO system and handwheels to precisely position the workpiece on the table relative to the cutting tool.Operation: Engage the spindle and powerfeed (if applicable) to initiate machining. Monitor the process and adjust parameters as needed.Safety: Always wear proper safety gear, including eye protection, gloves, and respirator when operating the mill. Follow all safety instructions outlined in the user manual.BENEFITS OF USING Jet JTM-949EVS Mill 3-Axis Acu-Rite 200S DRO X-Axis Powerfeed (690530):Precision machining: Delivers accurate cuts and consistent results for demanding projects.Increased efficiency: X-axis powerfeed automates table movement, saving time and effort.User-friendly operation: Digital readout and ergonomic controls simplify operation.Versatility: Handles a wide range of materials and applications with its variable speed control and robust construction.Durability: Built to withstand heavy use in professional environments.FEATURES:Meehanite cast iron base for rigidity and vibration dampeningVariable speed spindle (60-4,500 RPM)3-axis Acu-Rite 200S DRO systemX-axis powerfeedAutomatic oilerSpindle head coolingLarge table (9″ x 49″)Multiple T-slotsLED work lampSwing-away control panel
