Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690542)

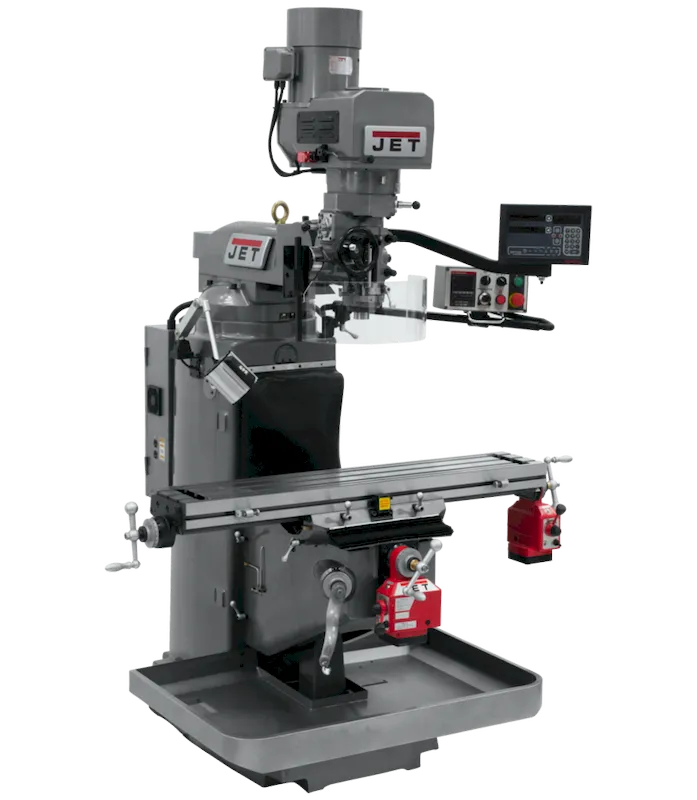

Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690542) is a versatile and feature-rich vertical milling machine designed for precise metalworking applications. This machine is ideal for machine shops, fabrication shops, and vocational training centers.

KEY FEATURES AND BENEFITS:Rigid Construction: JET-designed Certified Meehanite® casting with enhanced ribbing minimizes vibration and ensures accuracy during machining.Precise Control: Newall DP700 Digital ReadOut (DRO) allows for precise positioning along three axes (X, Y, and Knee).Automated Efficiency: X and Y-axis power feeds enable automated movement of the table, reducing operator fatigue and improving machining consistency.Heavy-Duty Performance: 3HP motor and Class 7 spindle bearings handle demanding cutting applications.Easy Operation: Swing-away control box with E-stop button keeps controls within easy reach, while the LED work lamp provides optimal visibility.Additional Features: Automatic oiler, safety shield, chip pan, and more contribute to operator safety and convenience.SPECIFICATIONS:Table Size: 9″ x 49″ (L x W)Spindle Travel: 5 inchesSpindle Speeds: Variable (60 – 4,500 RPM)Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 IPRMotor: 3 HP, 230V, 3-PhaseOverall Dimensions: 67″ x 64″ x 86″ (L x W x H)Weight: 2,420 lbsHOW TO USE:Installation: Following the manufacturer’s instructions, securely mount the mill on a level and stable surface. Ensure proper electrical connection according to voltage requirements.Workpiece Setup: Secure the workpiece using the T-slots and clamps on the milling table.Tooling Selection: Select the appropriate cutting tool (end mill, drill bit, etc.) based on the material and desired machining operation. Install the tool securely in the spindle taper.Positioning and Settings: Utilize the DRO for precise positioning of the cutting tool along the X, Y, and Z axes. Set the desired spindle speed and feed rate according to the material and cutting operation.Operation: Engage the safety shield and power on the machine. Start the spindle and carefully maneuver the cutting tool to perform the desired machining operation. Utilize the power feeds (if applicable) for automated movement along the X and Y axes.Machine Maintenance: Regularly lubricate the machine according to the manufacturer’s recommendations. After use, power off the machine, clean the work area, and properly store tooling.BENEFITS OF USING Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690542):Increased Precision: The rigid construction, DRO system, and power feeds all contribute to achieving highly accurate machining results.Enhanced Efficiency: Automated table movement with power feeds allows for faster and more consistent machining cycles.Heavy-Duty Capabilities: The powerful motor and robust design enable handling of demanding cutting applications in various materials.Operator Convenience: User-friendly features like the swing-away control box, LED work lamp, and automatic oiler enhance operator comfort and safety.FEATURES:JET-designed Certified Meehanite® casting with enhanced ribbingNewall DP700 Digital ReadOut (DRO)X and Y-axis power feedsVariable speed electronic motor (60 – 4,500 RPM)Class 7 spindle bearingsAutomatic oilerSwing-away control box with E-stop buttonLED work lampChip panDual locks on all moveable surfacesWay coversDrawbarTool box with tools
