Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690547)

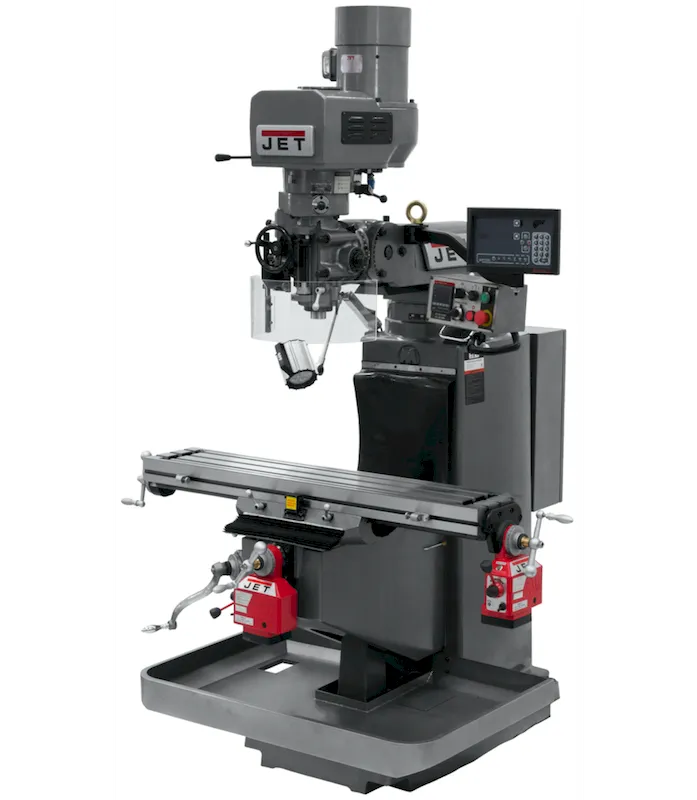

Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690547) is a versatile and precise milling machine designed for professional and hobbyist machinists. This sturdy mill features a rigid Meehanite casting base with enhanced ribbing for superior stability and vibration dampening. The innovative base design allows for easy leveling without lifting the machine. An automatic oiler ensures smooth operation and extends machine life.

KEY FEATURES AND BENEFITS:Rigid Construction: Delivers precision and accuracy with a Meehanite casting base and enhanced ribbing.Operator Convenience: Swing-away control box with E-stop button provides easy access and improves safety.Automatic Lubrication: Automatic oiler dispenses lubricant regularly for smooth operation.Safety Features: Heavy-duty spindle brake stops the spindle and cuts power to prevent accidental startups. Electrical box relocated to the back with two 115V outlets for powered accessories.Durable Design: Class 7 spindle bearings for maximum rigidity during heavy cutting. Internally cooled spindle head extends bearing, belt, and motor life. Table and ways are hardened up to 54 HRC and precision ground for accuracy. X and Y-Axis coated with Turcite-B for reduced vibration and smooth movements.Additional Features: Swing-away safety shield, LED work lamp, chip pan, dual locks on movable surfaces, way covers, drawbar, toolbox with tools.SPECIFICATIONS:Digital Readout: Newall DP700 (3-axis including quill)Number of Axis: 3 (Quill)Powerfeed: X and Y-AxisSpindle Taper: R-8Table Size (L x W): 9″ x 49″Quill Diameter: 3-3/8″Number of Spindle Speeds: VariableRange of Spindle Speeds: 60 – 4,500 RPMQuill Down Feed Rates: .0015 – .003 – .006 in/rev (IPR)Spindle Travel: 5″Head Movement: 90° Right & Left, 45° Forward & BackwardMax Distance Spindle to Table: 20-3/4″Distance Spindle to Column (Max): 18-1/8″Distance Spindle to Column (Min): 4-3/4″Collet Capacity: 1/8″ – 7/8″Table Longitudinal Travel: 36″ (30-3/4″ with powerfeed)Table Cross Travel: 12-5/8″T-Slots Number and Size: 3 (5/8″ wide)T-Slot Centers: 2-1/2″Work Table Weight Capacity: 720 lbsTravel of Knee: 15-3/4″Travel of Ram: 15-1/4″Saddle Width: 11-1/2″Column Width: 18″Inverter Type: Delta, BMotor: 3 HP, 230V, 3-PhaseOverall Dimensions (L x W x H): 67 x 64 x 86Weight: 2,420 lbsHOW TO USE:Assembly and Setup: Refer to the owner’s manual for detailed assembly instructions. Ensure the machine is level and securely bolted to a stable surface.Workpiece Setup: Secure your workpiece to the table using clamps or a vise. Ensure proper clearance between the tool and workpiece.Power On and Controls: Turn on the machine and familiarize yourself with the controls. Set the desired spindle speed and feed rate using the control panel.Milling Operation: Engage the spindle and begin milling your workpiece according to your project plans. Utilize the X, Y, and Z travel controls to maneuver the cutting tool.Safety: Always wear safety glasses and appropriate safety gear while operating the mill. Be mindful of your hand placement and keep them clear of the moving cutting tool.BENEFITS OF USING Jet JTM-949EVS Mill 3-Axis Newall DP700 DRO XY-Axis Powerfeed (690547):Precise Machining: Rigid construction and precision components ensure accurate results for your projects.Efficient Operation: Automatic oiler and variable speed control enhance efficiency and user experience.Durable Performance: High-quality materials and construction ensure long machine life.Versatile Applications: Handles various milling tasks with its wide range of speeds, feeds, and travel movements.User-friendly Features: Swing-away control box, LED work lamp, and toolbox with tools improve user experience and convenience.FEATURES:Meehanite casting base with enhanced ribbing for rigidity and vibration dampeningSwing-away control box with E-stop button for easy access and safetyAutomatic oiler for smooth operationHeavy-duty spindle brake for safetyClass 7 spindle bearings for maximum rigidity during heavy cuttingInternally cooled spindle head for extended bearing, belt, and motor lifeHardened and precision-ground table and ways for accuracyTurcite-B coated X and Y-axis for reduced vibration and smooth movements3-axis digital readout (Newall DP700, including quill)X and Y-axis powerfeedVariable speed spindle (60-4500 RPM)9″ x 49″ table3-3/8″ quill diameter720 lbs table weight capacitySwing-away safety shieldLED work lampChip panDual locks on movable surfacesWay coversDrawbarToolbox with tools
