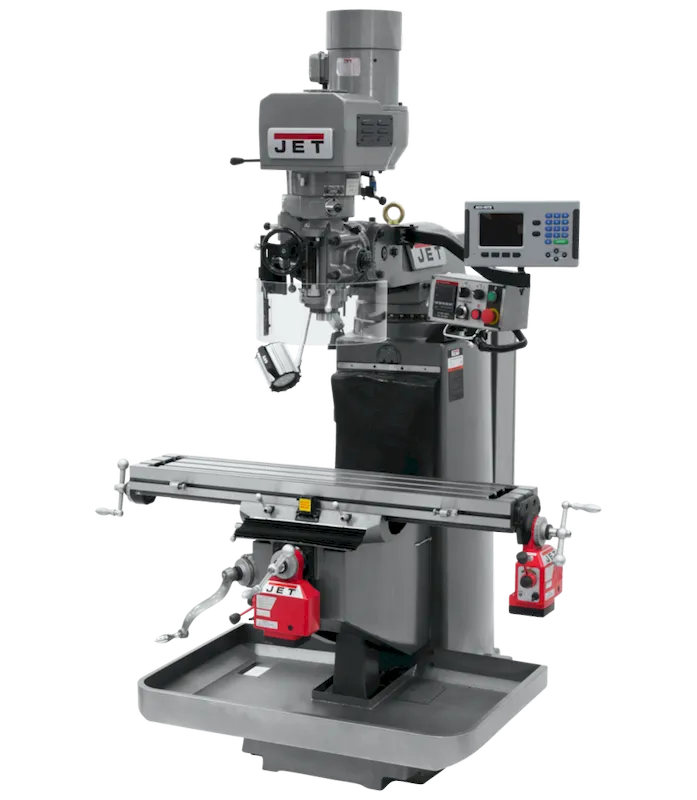

Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690527)

The Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690527) is a heavy-duty vertical milling machine designed for professional metalworking applications. Its rigid Meehanite cast iron construction ensures accuracy and stability during demanding tasks. The variable speed motor (60-4,500 RPM) allows for precise control over various materials.

KEY FEATURES AND BENEFITS:Precision Machining: Meehanite casting, hardened table & ways, Class 7 spindle bearings deliver exceptional accuracy and rigidity.Variable Speed Control: (60-4,500 RPM) for optimal cutting speeds on diverse materials.Enhanced Efficiency: Automatic oiler, swing-away control box with E-stop, and relocated electrical box with accessory outlets improve workflow.Power and Automation: 3 HP motor and X & Y-axis power feeds for efficient material removal.User-Friendly Design: ACU-Rite DRO simplifies positioning, LED work lamp enhances visibility, and swing-away safety shield ensures operator safety.SPECIFICATIONS:Table Size: 9″ x 49″Spindle Travel: 5″Quill Diameter: 3-3/8″Number of Spindle Speeds: VariableRange of Spindle Speeds: 60 – 4,500 RPMPower: 3HP, 230V 3-PhaseDigital Readout: ACU-Rite 200S 3X (Knee)Weight: 2,420 lbsHOW TO USE:Installation: Secure the mill to a sturdy, level surface. Ensure proper electrical connection (230V 3-Phase required).Workpiece Setup: Mount the workpiece securely to the mill table using clamps or a vise.Tooling Selection: Select the appropriate cutting tool (end mill, drill bit, etc.) based on the material and desired operation.Positioning and Speed: Set the desired cutting depth and speed using the quill travel and variable speed control. Utilize the DRO for precise positioning.Milling Operation: Engage the spindle and power feeds (if applicable) to initiate cutting. Move the table (X & Y) and/or the knee (Z) to achieve the desired profile.BENEFITS OF USING Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690527):Accurate and Reliable Machining: Delivers consistent results for professional applications.Versatile Performance: Handles various materials and cutting tasks with ease.Efficient Workflow: Automated features and user-friendly design streamline operation.Durable Construction: Built to withstand heavy-duty use in demanding environments.FEATURES:Meehanite cast iron construction for rigidityVariable speed motor (60-4,500 RPM)Automatic oilerSwing-away control box with E-stopInternally cooled spindle headHardened and precision ground table & waysTurcite-B coated X & Y-axis for vibration reductionSwing-away safety shieldLED work lampChip panDual locks on moveable surfacesWay coversDrawbarTool box with tools
