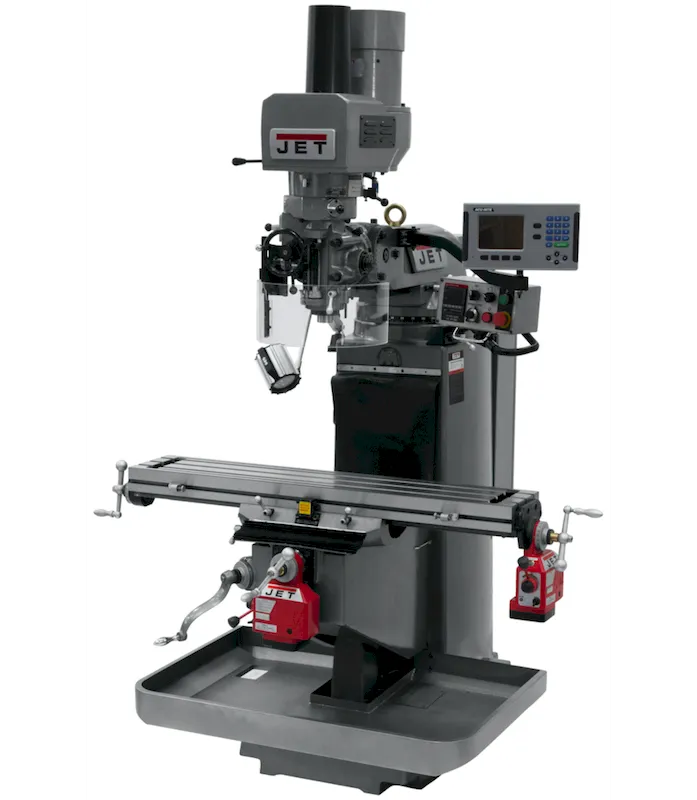

Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690528)

Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690528) is a versatile and powerful vertical milling machine designed for precise metalworking applications. Its rigid Meehanite cast iron base and column minimize vibration for clean cuts, while the variable speed motor (60-4500 RPM) allows for machining a wide range of materials.

KEY FEATURES AND BENEFITS:Precision Machining: The 3-axis Acu-Rite digital readout (DRO) ensures accurate positioning of the cutting tool for consistent results.Powerful Performance: The 3 HP motor delivers ample power for even the most demanding projects.Versatility & Control: Variable speed control allows for optimal machining speeds for different materials, while X & Y power feeds automate table movements for efficient operation.Easy Tool Changes: The pneumatic air drawbar simplifies and speeds up tool changes, minimizing downtime.Durability & Convenience: Automatic lubrication ensures smooth operation, while features like a swing-away control box with emergency stop, LED work lamp, and chip pan enhance user experience and safety.SPECIFICATIONS:Table size: 9″ x 49″Spindle speeds: Variable (60 – 4,500 RPM)Quill travel: 5″Collet capacity: 1/8″ – 7/8″Table travel (longitudinal): 36″ (30-3/4″ with power feed)Table travel (cross): 12-5/8″Motor: 3 HP, 230V, 3-phaseWeight: 2,420 lbsHOW TO USE:Installation: Secure the mill to a stable and level surface following the manufacturer’s instructions. Ensure proper electrical connection (230V, 3-phase required).Workpiece Setup: Mount your workpiece securely onto the table using clamps and the T-slots.Tool Selection: Choose the appropriate cutting tool (end mill, drill bit, etc.) for your material and desired operation. Install the tool into the spindle using the drawbar.Positioning & Settings: Utilize the DRO and handwheels to precisely position the cutting tool and workpiece relative to each other. Set the desired spindle speed and feed rate based on the material and operation.Machining: Engage the power feed (optional) and start the spindle. Carefully guide the cutting tool along the desired path to machine the workpiece.Safety: Always wear proper safety gear (eye protection, gloves, etc.) while operating the mill. Be mindful of sharp edges and moving parts.BENEFITS OF USING Jet JTM-949EVS Mill Acu-Rite 200S 3X (K) DRO X & Y Powerfeeds (690528):Achieve high-precision metalworking results with the accurate DRO system and rigid construction.Tackle a wide range of machining tasks with the powerful motor and variable speed control.Increase efficiency and productivity with automated X & Y power feeds and fast tool changes via the air drawbar.Experience smooth operation and extended machine life thanks to the automatic lubrication system.Benefit from a user-friendly design with convenient features like a swing-away control box, LED work lamp, and chip pan.FEATURES:Meehanite cast iron base and column for rigidity and vibration dampening.Variable speed motor (60-4500 RPM).3-axis Acu-Rite digital readout (DRO).X & Y power feeds for automated table movement.Pneumatic air drawbar for easy tool changes.Swing-away control box with emergency stop button.LED work lamp for improved visibility.Chip pan for collecting metal shavings.Automatic lubrication system.Includes toolbox with tools.
