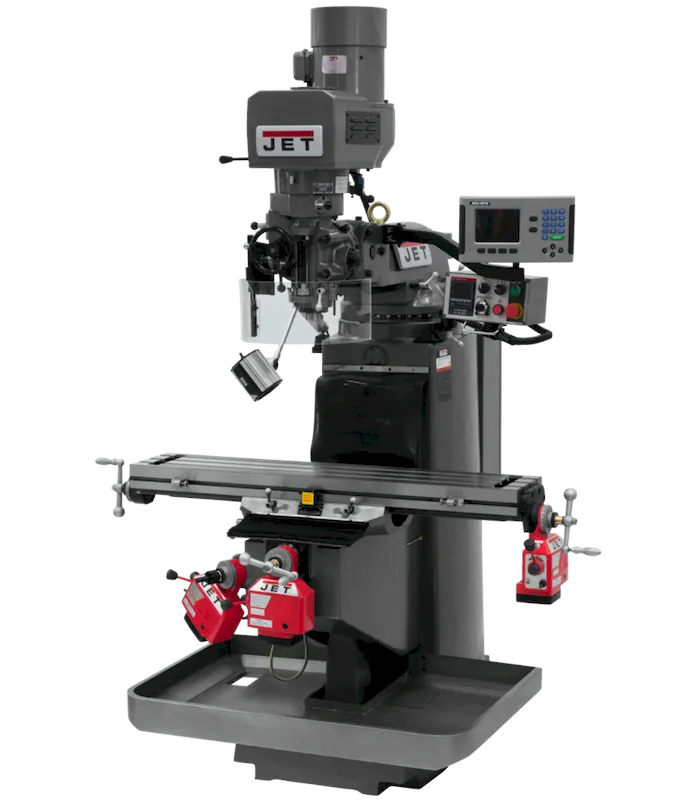

Jet JTM-949EVS Mill w/Acu-Rite 200S 3X (Q) DRO XYZ Powerfeeds (690534)

Jet JTM-949EVS Mill w/Acu-Rite 200S 3X (Q) DRO XYZ Powerfeeds (690534) is a versatile and powerful vertical milling machine designed for a variety of metalworking applications. It features a rigid Meehanite casting construction for stability and a variable speed spindle with a wide range of speeds (60-4500 RPM) for tackling different materials. The built-in Acu-Rite 200S DRO (Digital ReadOut) on all three axes (X, Y, and Quill) ensures precise positioning and repeatability, while the power feeds on all axes automate movements for efficient operation.

KEY FEATURES AND BENEFITS:Rigid Meehanite casting for vibration dampening and accuracy.Variable speed spindle (60-4500 RPM) for versatility in handling various materials.Acu-Rite 200S DRO for precise positioning and repeatability on all three axes.Power feeds on X, Y, and Z axes for automated table and quill movement, improving efficiency.Automatic oiler ensures consistent lubrication for extended machine life.Heavy-duty spindle brake stops spindle and power for added safety.Internally cooled spindle head extends bearing, belt, and motor life.Hardened and precision ground table and ways for increased accuracy.Turcite-B coated X and Y-axis reduces vibration and smooths movements.3 HP, 230V, 3-Phase motor provides ample power for demanding tasks.SPECIFICATIONS:Table size: 9″ x 49″Quill diameter: 3-3/8″Spindle travel: 5″Number of Spindle Speeds: VariableRange of Spindle Speeds (RPM): 60 – 4,500Quill Down Feed Rates (IPR): .0015 – .003 – .006Collet Capacity: 1/8 – 7/8″Overall Dimensions (L x W x H): 67″ x 64″ x 86″Weight: 2,420 lbsHOW TO USE:Installation: Following the manufacturer’s instructions, install the Jet JTM-949EVS Mill on a sturdy and level surface. Secure the machine to the floor using appropriate anchors.Set-up: Mount your desired cutting tool in the spindle using the drawbar and collets. Adjust the table height and angle using the controls and locks. Utilize the DRO for precise positioning.Operation: Power on the machine and ensure all safety features are engaged (e.g., safety shield). Select the appropriate spindle speed based on the material and cutting tool. Engage the power feeds (if desired) and use the handwheels or jog controls to move the table and quill for machining operations. Refer to the manual for detailed instructions on specific operations.BENEFITS OF USING Jet JTM-949EVS Mill w/Acu-Rite 200S 3X (Q) DRO XYZ Powerfeeds (690534):Increased Efficiency: Power feeds and precise positioning with DRO lead to faster and more consistent machining.Improved Accuracy: Rigid construction and precision components ensure accurate results.Versatility: Variable speed spindle and wide range of tooling compatibility allow for handling diverse materials and projects.Durability: Quality construction and automatic oiling system promote long machine life.FEATURES:Meehanite casting baseVariable speed spindleDigital readout (DRO) on X, Y, and Z axesPower feeds on X, Y, and Z axesAutomatic oilerHeavy-duty spindle brakeInternally cooled spindle headHardened and precision ground table and waysTurcite-B coated X and Y-axis3 HP motor
