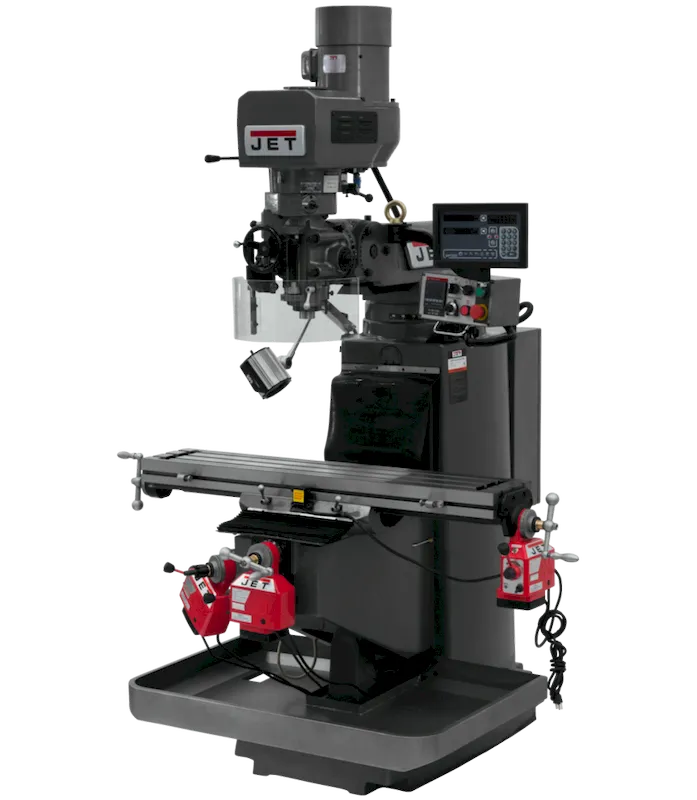

Jet JTM-949EVS Mill w/ Newall DP700 3X (K) DRO XYZ Powerfeeds (690544)

Jet JTM-949EVS Mill w/ Newall DP700 3X (K) DRO XYZ Powerfeeds (690544) is a powerful and precise 3HP variable speed vertical milling machine designed for professional and industrial applications. It features a rigid Meehanite casting for stability and accuracy, along with a swing-away control box for easy access to controls and an emergency stop button. The innovative machine base design simplifies leveling without lifting the machine.

KEY FEATURES AND BENEFITS:Rigid Meehanite Casting: Ensures vibration-free operation and maintains machining precision.Automatic Oiler: Provides consistent lubrication for extended machine life.Power Feeds on X, Y, and Z Axes: Enables automated movement for efficient machining.Newall DP700 Digital Readout (DRO): Offers precise positioning control on 3 axes.Heavy-Duty Spindle Brake: Enhances safety by stopping the spindle and power supply quickly.Internally Cooled Spindle Head: Extends bearing, belt, and motor life.Hardened and Ground Table and Ways: Delivers smooth operation and reduces wear.Turcite-B Coated X and Y-Axis: Minimizes vibration for improved machining accuracy.Swing Away Safety Shield: Protects operators from flying debris during operation.LED Work Lamp: Provides excellent illumination of the work area.SPECIFICATIONS:Table Size: 9″ x 49″Quill Diameter: 3-3/8″Spindle Speeds: Variable, 60 – 4,500 RPMQuill Down Feed Rates: 0.0015 – 0.003 – 0.006 in/revSpindle Travel: 5″Head Movement: 90 degrees right & left, 45 degrees front & backMax Distance Spindle to Table: 20-3/4″Max Distance Spindle to Column: 18-1/8″Power Requirement: 3HP, 230V, 3-phaseWeight: [Insert weight here] lbsMotor: 3HP, 230V, 3-phase variable speed motorHOW TO USE:Installation: Secure the mill to a stable and level surface following the manufacturer’s instructions.Set-up: Mount the desired cutting tool using the drawbar and collet. Adjust the spindle speed and feed rates based on the material and machining operation.Operation: Position the workpiece securely on the table using clamps or a vise. Engage the safety shield and power on the machine. Use the controls to maneuver the cutting tool along the desired path to machine the workpiece.Maintenance: Regularly lubricate the machine according to the recommended schedule. Clean the work area and machine after each use.BENEFITS OF USING Jet JTM-949EVS Mill w/ Newall DP700 3X (K) DRO XYZ Powerfeeds (690544):Precision Machining: Rigid construction, accurate ways, and variable speed control ensure high-quality results.Efficiency: Power feeds on all axes and automatic oiler streamline the machining process.Versatility: Handles a wide range of materials and machining tasks.Durability: Built with high-quality components for long-lasting performance.Operator Safety: Features like the swing-away safety shield and spindle brake prioritize user safety.FEATURES:3HP, 230V, 3-phase variable speed motorNewall DP700 Digital Readout (DRO)Swing-away control box with E-stop buttonAutomatic oilerHeavy-duty spindle brakeInternally cooled spindle headHardened and ground table and waysTurcite-B coated X and Y-axisSwing-away safety shieldLED work lampChip panDual locks on moveable surfacesWay coversDrawbarToolbox with tools
