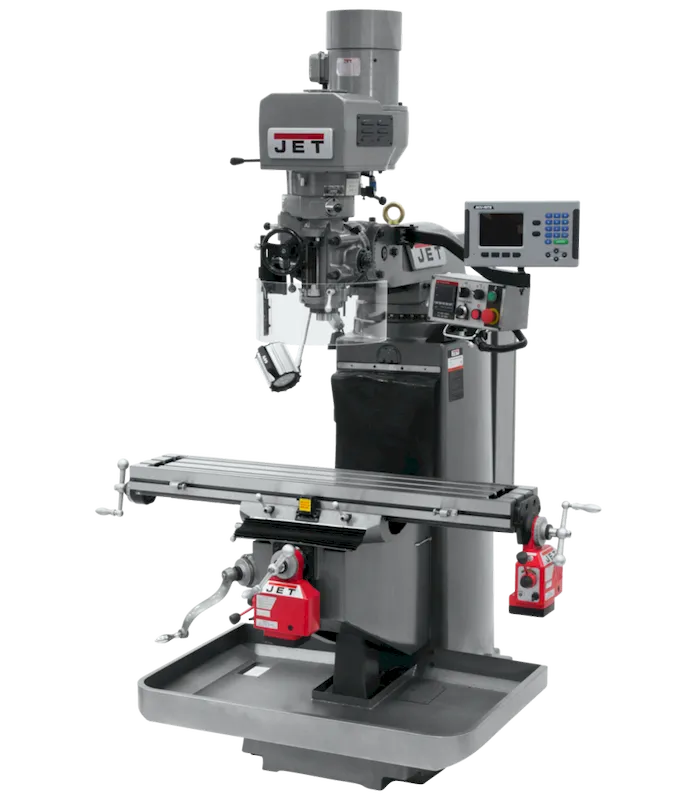

Jet JTM-949EVS Mill With Acu-Rite 203 DRO XY-Axis Powerfeeds (690522)

The Jet JTM-949EVS Mill With Acu-Rite 203 DRO XY-Axis Powerfeeds (690522) is a versatile and powerful machine designed for a wide range of metalworking applications. This heavy-duty mill features a rigid Meehanite cast iron base for stability and precision machining. The variable speed motor allows for optimal cutting speeds for various materials, while the digital readout (DRO) ensures accurate positioning of the cutting tool. X and Y-axis powerfeeds automate material movement for efficient operation.

KEY FEATURES AND BENEFITS:Rigid Meehanite cast iron base: Minimizes vibration and ensures machining accuracy.Variable speed motor (60-4,500 RPM): Provides optimal cutting speeds for different materials.Digital readout (DRO): Enables precise tool positioning for consistent results.X and Y-axis powerfeeds: Automate material movement for efficient operation.Automatic oiler: Ensures proper lubrication for extended machine life.Large table (9″ x 49″): Accommodates a variety of workpiece sizes.Heavy-duty construction: Designed for demanding metalworking applications.SPECIFICATIONS:Motor: 3 HP, 230V, 3-PhaseSpindle Taper: R-8Table Size: 9″ x 49″Quill Travel: 5″Spindle Speed Range: 60-4,500 RPMQuill Feed Rates: .0015″ – .003″ – .006″Overall Dimensions: 67″ x 64″ x 86″Weight: 2,420 lbs.HOW TO USE:Installation: Secure the mill to a stable and level surface following the manufacturer’s instructions.Workpiece Setup: Mount the workpiece securely to the mill table using clamps or a vise.Tooling: Select the appropriate cutting tool (end mill, drill bit, etc.) for your application and install it in the spindle using the drawbar.Settings: Set the desired spindle speed and feed rate based on the material and cutting operation.Operation: Engage the safety shield and power on the mill. Use the handwheels or power feeds to move the cutting tool and machine the workpiece according to your plan.BENEFITS OF USING Jet JTM-949EVS Mill With Acu-Rite 203 DRO XY-Axis Powerfeeds (690522):Increased Precision: The rigid construction, variable speed control, and DRO system ensure accurate and repeatable machining results.Improved Efficiency: X and Y-axis powerfeeds automate material movement, saving time and effort.Versatility: Handles a wide range of metalworking tasks from drilling and facing to milling slots and pockets.Durability: Built with high-quality components for long-lasting performance in demanding environments.FEATURES:Meehanite cast iron baseVariable speed motorDigital readout (DRO)X and Y-axis powerfeedsAutomatic oilerLarge tableSwing-away control boxLED work lampChip panDual locks on moveable surfacesWay coversDrawbarTool box with tools
