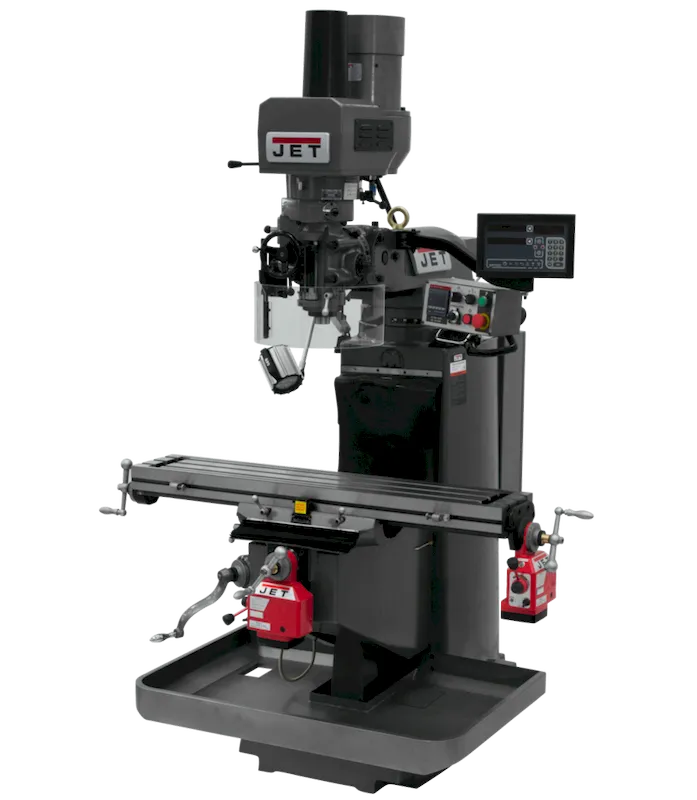

Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548)

Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548) is a versatile vertical milling machine built for precision and durability.

KEY FEATURES AND BENEFITS:Rigid Construction: Certified Meehanite cast iron base ensures stability and minimizes deflection during heavy cuts.Enhanced Accuracy: Newall DP700 DRO provides precise readings on all three axes (X, Y, Quill).Automated Efficiency: X and Y-axis power feeds for effortless material movement.Smooth Operation: Automatic oiler maintains lubrication for extended machine life.Easy Tool Changes: Pneumatic drawbar simplifies securing and releasing cutting tools.User-Friendly Controls: Swing-away control box with E-stop button for convenient operation and safety.Durable Work Table: Hardened and ground table surface ensures flatness and resists wear.Reduced Vibration: Turcite-B coated X and Y-axis minimize vibration for cleaner cuts.Improved Visibility: LED work lamp illuminates the work area for better precision.Heavy-Duty Construction: 3 HP motor and 2420 lb weight handle demanding applications.SPECIFICATIONS:Digital Readout (DRO): Newall DP700 (3-axis with quill readout)Powerfeed: X and Y-axisPower Drawbar: PneumaticTable Size: 9″ x 49″Spindle Travel: 5″Spindle Speeds: Variable (60 – 4,500 RPM)Collet Capacity: 1/8″ – 7/8″Table Travel (Longitudinal): 36″ (30-3/4″ with powerfeed)Table Travel (Cross): 12-5/8″Work Table Weight Capacity: 720 lbsMotor: 3 HP, 230V, 3-PhaseOverall Weight: 2,420 lbsHOW TO USE:Installation: Secure the mill to a stable and level surface following the manufacturer’s instructions.Set Up: Mount the desired cutting tool in the spindle using the drawbar.Positioning: Adjust the table and head (X, Y, Z axes) using the hand cranks or power feeds (if equipped) to position the workpiece for machining.Machining: Turn on the machine and set the desired spindle speed. Carefully move the table or head to perform the milling operation according to your project plan.Safety: Always wear safety glasses, gloves, and appropriate clothing while operating the mill. Utilize the safety shield and E-stop button whenever necessary.BENEFITS OF USING Jet JTM-949EVS Mill with Newall DP700 3X (Q) DRO XY Powerfeed (690548):Achieve high-precision machining results on various materials.Increase productivity with automated features like power feeds and tool changes.Reduce operator fatigue with ergonomic design and easy-to-use controls.Ensure machine longevity with robust construction and automatic lubrication.Handle demanding projects with a powerful motor and rigid build.FEATURES:Certified Meehanite cast iron baseNewall DP700 Digital Readout (DRO)X and Y-axis power feedsPneumatic drawbarSwing-away control box with E-stop buttonHardened and ground tableTurcite-B coated waysLED work lampChip panDual locks on movable surfacesWay coversToolbox with tools
