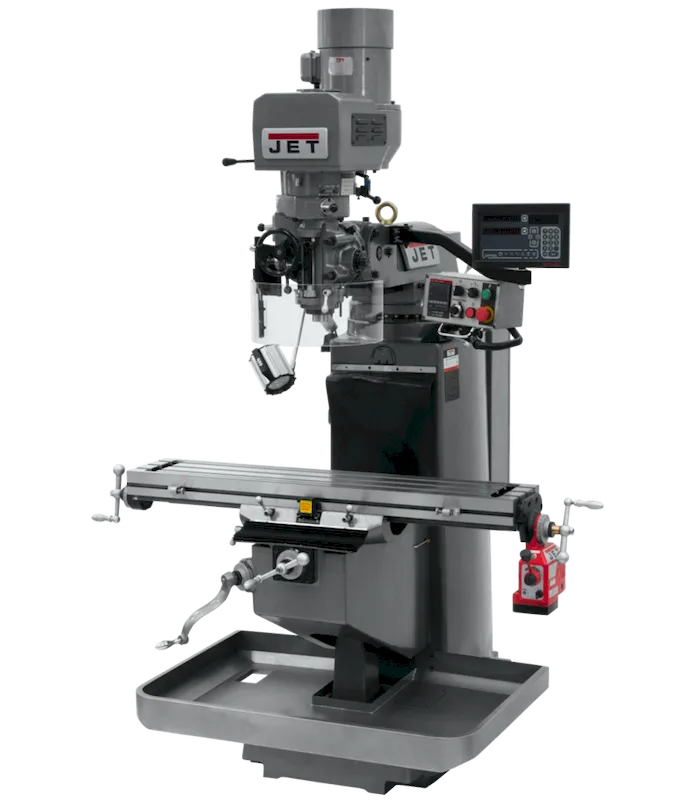

Jet JTM-949EVS Mill with Newall DP700 DRO & X Powerfeed (690535)

Jet JTM-949EVS Mill with Newall DP700 DRO & X Powerfeed (690535) is a high-precision, versatile milling machine designed for demanding metalworking applications. Its 9″ x 49″ table and electronic variable speed spindle make it suitable for a wide range of tasks, from small-scale projects to large-scale production. This model comes equipped with the Newall DP700 DRO for accurate measurements and an X-axis power feed for efficient material removal.

KEY FEATURES AND BENEFITS:Precision and Accuracy: The Newall DP700 DRO system ensures precise measurements and positioning, minimizing errors and maximizing accuracy in your machining operations.Efficiency: The X-axis power feed automates table movement, increasing productivity and reducing operator fatigue.Heavy-Duty Construction: Built with JET’s Certified Meehanite casting, this mill provides exceptional rigidity and stability for demanding applications.Variable Speed Spindle: 3 HP, 230V, 3-phase motor offers a wide speed range from 60 to 4500 RPM, allowing you to optimize cutting performance for different materials and tools.Enhanced Durability: Class 7 spindle bearings, hardened and ground ways, and Turcite-B coating on X and Y axes ensure smooth operation and longevity.Safety First: Swing-away safety shield, emergency stop button, and spindle brake provide multiple layers of protection for the operator.Convenience: Swing-away control box, LED work lamp, automatic lubrication, and other features enhance user experience and reduce maintenance requirements.SPECIFICATIONS:Digital Readout: Newall DP700Powerfeed: X-AxisTable Size (L x W): 9″ x 49″Quill Diameter: 3-3/8″Spindle Speeds: Variable (60 – 4,500 RPM)Quill Down Feed Rates: .0015 – .003 – .006 IPRTravel (Longitudinal/Cross/Vertical): 36″/12-5/8″/18.9″Motor: 3HP, 230V, 3PhOverall Dimensions (L x W x H): 67″ x 64″ x 86″Weight: 2,420 lbsHOW TO USE:Preparation: Ensure the machine is level and properly lubricated. Mount the workpiece securely to the table using clamps or vises.Tool Selection: Choose the appropriate cutting tool for the desired operation and material.DRO Setup: Set the desired coordinates in the DRO for precise positioning.Spindle Speed: Select the appropriate spindle speed for the material and tool combination.Cutting Operation: Engage the power feed (if using) and carefully monitor the cutting process.Monitoring and Adjustment: Use the DRO to monitor tool position and make necessary adjustments during machining.BENEFITS OF USING THE Jet JTM-949EVS Mill with Newall DP700 DRO & X Powerfeed (690535):Increased productivity and efficiency due to automated features like power feed and DRO.Improved accuracy and precision in machining operations.Reduced operator fatigue and enhanced safety measures.Versatility for a wide range of milling applications.Long-lasting durability and low maintenance requirements.FEATURES:Automatic oilerSwing-away control box with emergency stopEasy leveling systemTwo 115V outlets for accessoriesLED work lampChip panDrawbarTool box with tools
