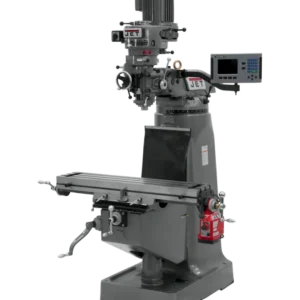

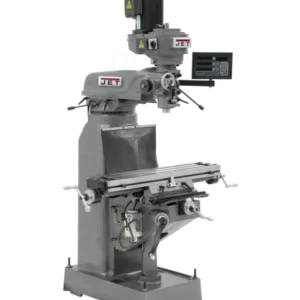

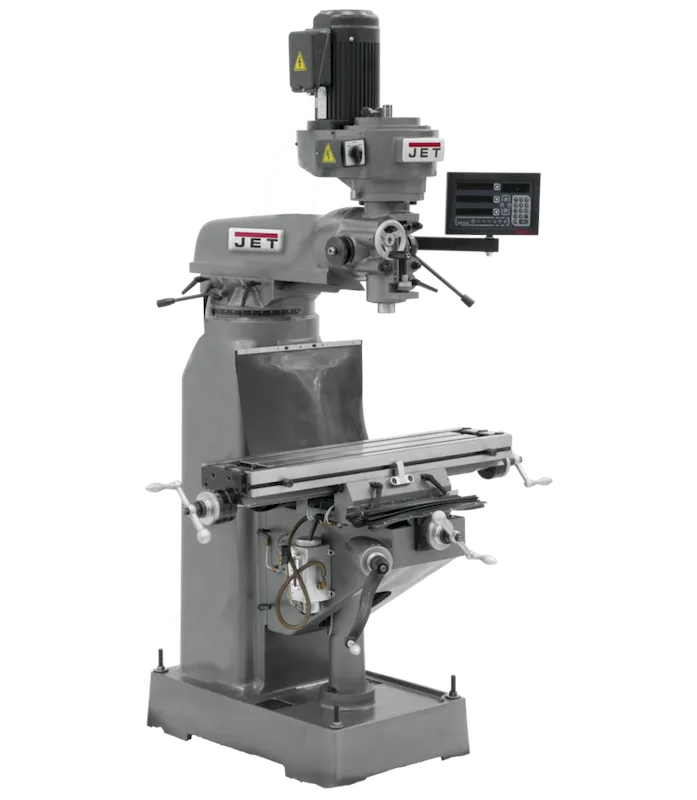

Jet JVM-836-1 Milling Machine w/NEWALL C80 3-Axis (Quill) DRO (691176)

JET JVM-836-1 Milling Machine w/NEWALL C80 3-Axis (Quill) DRO (691176) is a powerhouse for precision machining, designed to meet the needs of both demanding professionals and enthusiastic hobbyists. With its robust construction, user-friendly features, and the advanced NEWALL C80 3-Axis (Quill) DRO, this milling machine delivers exceptional performance and accuracy in a wide range of applications.

KEY FEATURES AND BENEFITS:Precision Engineering: The precision bored and honed milling head, hardened and ground precision table, and precision-ground dovetail ways guarantee exceptional accuracy and stability for your machining projects.Versatile Operations: The tilting head (90 degrees left and right) and generous ram travel (over 10 inches) provide the flexibility to tackle a wide variety of cuts and projects.Ease of Use: User-friendly features like graduated scales on the column, locks on all movable surfaces, and a one-shot lubrication system make this machine easy to operate and maintain.Enhanced Accuracy: The NEWALL C80 3-Axis DRO system provides real-time digital readouts for precise measurements on all three axes, including the quill, ensuring your cuts are accurate every time.Complete Package: The Jet 691176 includes way covers, a draw bar, and a tool box with tools, giving you everything you need to get started right away.SPECIFICATIONS:Motor: 1.5 HP, 115V, 1 Phase (prewired for 115V or 230V)Spindle Speeds: 5 speeds (240 – 1550 RPM)Spindle Taper: R-8Quill Diameter: 3-3/8 inchesTable Size: 7-7/8 x 35-3/4 inchesTable Travel: 22-1/4 inches longitudinal, 9-1/2 inches crossKnee Travel: 14 inchesRam Travel: 10-1/2 inchesMaximum Distance Spindle to Table: 13-3/4 inchesDistance Spindle to Column: 15-1/4 inches (max), 5-1/4 inches (min)Work Table Weight Capacity: 500 lbsDimensions: 67 inches (H) x 56 inches (W) x 66 inches (L)HOW TO USE:Preparation: Ensure the machine is properly leveled and lubricated. Secure the workpiece to the table using clamps or a vise.Tool Selection: Choose the appropriate cutting tool for the material and operation you are performing. Install the tool in the spindle.Setting Zero: Use the DRO system to set the zero position for each axis.Operation: Start the spindle and carefully feed the workpiece into the cutting tool. Use the DRO to monitor the position of the cutter and make precise adjustments as needed.Safety: Always wear appropriate safety gear, including eye protection and hearing protection. Follow all safety guidelines in the user manual.BENEFITS OF USING THE Jet JVM-836-1 Milling Machine w/NEWALL C80 3-Axis (Quill) DRO (691176):Improved Accuracy: The DRO system and precision components ensure accurate cuts and consistent results.Increased Productivity: The machine’s versatility and ease of use allow you to complete projects more efficiently.Enhanced Safety: Safety features like locks and way covers help protect the user and the machine.Long-lasting Durability: The robust construction ensures years of reliable performance.FEATURES:Large diameter chromed quillHigh precision spindle bearingsGraduated scale on the columnOne-shot lubrication systemWay covers, draw bar, and tool box included
