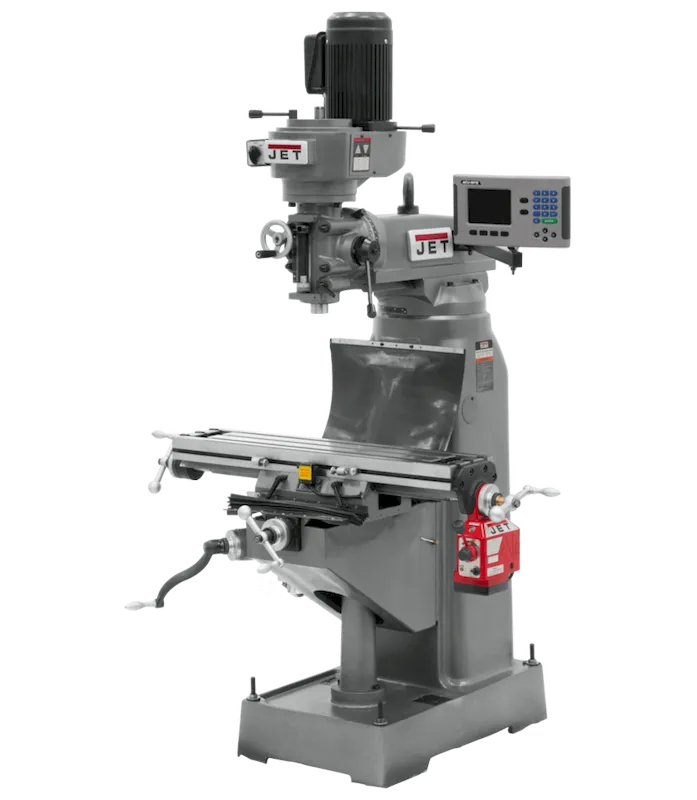

Jet JVM-836-3 Mill 3-Axis ACU-RITE 200S DRO(K) XY-Axis Pwrfds (690047)

The Jet JVM-836-3 Mill 3-Axis ACU-RITE 200S DRO(K) XY-Axis Pwrfds (690047) is a versatile vertical knee mill designed for precise metalworking applications.

KEY FEATURES AND BENEFITS:Accurate Machining: The precision-bored head and hardened table ensure dimensional accuracy for your projects.Effortless Control: The 3-axis DRO (Digital ReadOut) by Acu-Rite 200S provides real-time position data for improved control.Automated Efficiency: X and Y-axis power feeds enable automated movement along the table, saving time and effort.Safe Operation: Locks on all movable surfaces enhance user safety during operation.Durable Construction: The cast iron base and column provide a rigid platform for demanding tasks.Versatility: With 10 spindle speeds, the mill tackles various materials and applications.SPECIFICATIONS:Table Size: 7-7/8 x 35-3/4 in.Quill Diameter: 3-3/8 in.Spindle Speeds: 10 (120 – 1,550 RPM)Table Travel (Longitudinal/Cross): 22-1/4 in. / 9-1/2 in.Motor: 1-1/2 HP, 230V, 3-PhaseWeight: 1,610 lbs.HOW TO USE:Setup: Secure your workpiece to the table using clamps or a vise.Positioning: Utilize the DRO to precisely position the cutting tool (end mill, drill bit, etc.) relative to the workpiece.Machining: Select the appropriate spindle speed and feed rate based on the material and desired cut. Engage the power feed (if applicable) and initiate the cutting operation.Monitoring: Continuously monitor the cutting process and adjust parameters as needed for optimal results.Safety: Always wear safety glasses and appropriate gloves when operating the mill.BENEFITS OF USING Jet JVM-836-3 Mill 3-Axis ACU-RITE 200S DRO(K) XY-Axis Pwrfds (690047):Achieve high-precision metalworking results for components and prototypes.Increase productivity with automated X and Y-axis power feeds.Enhance operator safety with a focus on secure workholding and machine lockdowns.Tackle various materials effectively with a wide range of spindle speeds.Invest in a reliable machine backed by a 2-year JET warranty.FEATURES:Precision bored and honed milling headLarge diameter quill with chrome finishHigh precision spindle bearingsOver 10 inches of ram travelGraduated scale on column for easy positioningPrecision ground dovetail ways for smooth travelOne-shot lubrication system for efficient maintenanceWay covers for protection against debrisDrawbar for secure tool attachmentToolbox and tools included
