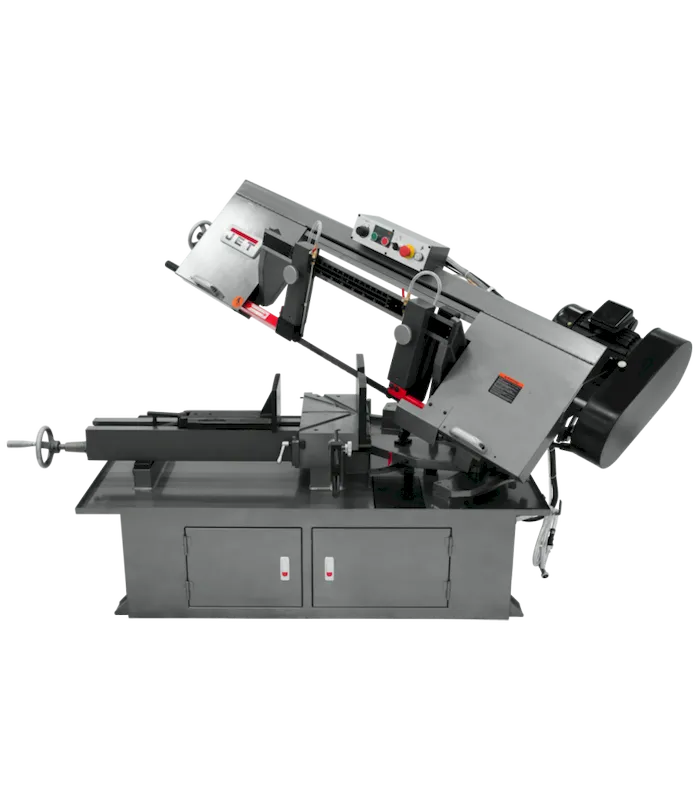

Jet MBS-1018-3 2 HP 10×18 Horizontal Dual Mitering Bandsaw (413410)

The Jet MBS-1018-3 2 HP 10×18″ Horizontal Dual Mitering Bandsaw (413410) is a heavy-duty 2 HP horizontal dual mitering bandsaw designed for precise metal cutting applications.

KEY FEATURES AND BENEFITS:Dual Mitering Head: Allows for quick and accurate angle cuts up to 45° right and 60° left.Large Cutting Capacity: Handles materials up to 10″ wide x 18″ deep.Variable Blade Speed: Provides optimal cutting performance for various materials (50, 125, 200, 275 SFPM).Automatic Features: Automatic blade breakage sensor ensures safety and minimizes downtime. Automatic shut-off switch stops sawing process.Durable Construction: Cast iron blade wheels and steel frame reduce vibration and deflection for clean cuts.Safety Features: Blade tension gauge ensures proper blade tension, and a magnetic starter protects against low voltage and lost phase.Easy Cleaning: Integrated pressurized wash hose simplifies cleaning after use.Standard Equipment: Includes quick-action vise, blade tension gauge, coolant system, adjustable material stop, and wash hose.SPECIFICATIONS:Cutting Capacity (W x D): 10″ x 18″Round at 90 Degrees: 10″Round at 45 Degrees: 10″Rectangle at 90 Degrees: 10 x 17″Rectangle at 45 Degrees: 10 x 12″Head Movement: 45° Right, 60° LeftBlade Size: 1″ x 0.032″ x 144″Blade Wheel Diameter: 14-1/4″Blade Speed: 50/125/200/275 SFPMMotor: 2 HP, 230/460V, 3 PhaseOverall Dimensions (L x W x H): 79″ x 36″ x 46″Weight: 1144 lbs.HOW TO USE:Setup: Secure the material in the vise or on the table using clamps. Ensure the blade guard is in place and the blade tension is properly adjusted according to the manufacturer’s instructions (refer to the operator’s manual).Power On: Turn on the saw using the power switch with the safety key.Adjust Blade Speed: Select the appropriate blade speed based on the material being cut (consult the operator’s manual for recommendations).Cutting: Guide the material against the blade to make the desired cut. Utilize the miter gauge for angled cuts.Shut Down: Once the cut is complete, turn off the saw using the power switch and allow the blade to come to a complete stop before disengaging the material.BENEFITS OF USING Jet MBS-1018-3 2 HP 10×18″ Horizontal Dual Mitering Bandsaw (413410):Precise Mitering Cuts: Achieve accurate angles for complex metalwork projects.Large Capacity: Tackle demanding jobs with the ability to cut thick and wide materials.Versatility: Variable blade speed allows for efficient cutting of various metals.Safety Features: Automatic shut-off and blade breakage sensor minimize accidents.Durable Construction: Built to last with heavy-duty components for long-term use.Easy to Use: Simple operation with clear controls and features.Efficient Cleaning: Integrated wash hose streamlines post-use cleanup.FEATURES:Dual Mitering Head (45°R, 60°L)Large Capacity (10″ x 18″)Variable Blade Speed (50-275 SFPM)Automatic Blade Shutoff & Breakage SensorHeavy-Duty Construction (Cast Iron Blade Wheels, Steel Frame)Blade Tension GaugeMagnetic Starter (Low Voltage & Lost Phase Protection)Coolant SystemQuick-Action Vise (10″ Saws)Adjustable Material StopIntegrated Wash Hose
