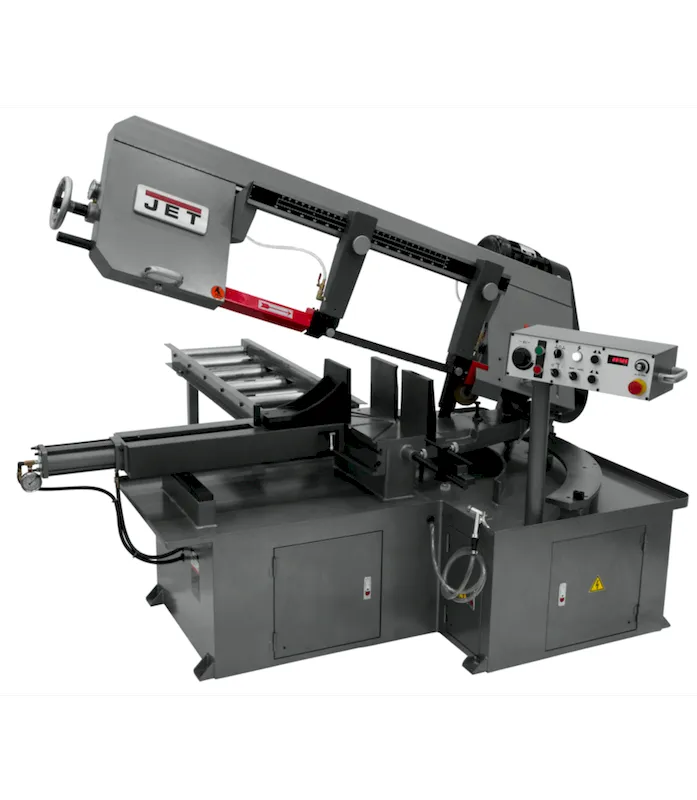

Jet MBS-1323EVS-H Dual Mitering Bandsaw 3HP 230V 3-PH (413412)

The Jet MBS-1323EVS-H Dual Mitering Bandsaw 3HP 230V 3-PH (413412) is a semi-automatic dual mitering bandsaw designed to revolutionize the way you make angle cuts. Equipped with a 3 HP motor and variable speed control, this bandsaw offers exceptional cutting performance and versatility for a wide range of materials. Its innovative design, robust construction, and user-friendly features make it an invaluable asset for any metal fabrication shop.

KEY FEATURES AND BENEFITS:Dual Mitering Head: Unique design enables quick and accurate angle cuts, mitering both left and right, significantly reducing setup time.Frequency Inverter (EVS): Provides a full range of blade speeds (50-297 SFPM) for optimal cutting performance with various materials, from mild steel to stainless steel and aluminum.Heavy-Duty Construction: Minimizes vibration and deflection, ensuring precise and consistent cuts even under heavy loads.Self-Propelled Blade Brush: Automatically clears chips and debris from the blade guides, prolonging blade life and maintaining cutting accuracy.Blade Tension Gauge: Ensures proper blade tension for optimal cutting performance and blade longevity.Safety Features: Includes magnetic starter, automatic blade breakage sensor, safety key power switch, and fully guarded blade for operator safety.CSA/CUS Certified: Meets stringent electrical safety standards for peace of mind.Semi-Automatic Operation: Bow automatically raises after each cut, improving efficiency and reducing operator fatigue.Hydraulic Downfeed Control: Easily adjustable to match the feed rate to the material being cut, optimizing productivity and cut quality.SPECIFICATIONS:Cutting Capacity (W x D): 12″ x 32″Round Cutting Capacity: 13″ at 90 degrees and 45 degreesRectangle Cutting Capacity: 12″ x 23-1/2″ at 90 degrees and 8″ x 16″ at 45 degreesBlade Size: 1-1/4″ x 0.043″ x 172″Blade Wheel Diameter: 16″Motor: 3 HP, 230V, 3-PhaseBed Height: 27.75″Overall Dimensions (L x W x H): 88″ x 55″ x 51″Weight: 2090 lbsHOW TO USE:Secure Material: Place the workpiece in the hydraulic vise and clamp it securely.Set Angle: Adjust the mitering head to the desired angle for your cut.Select Blade Speed: Use the frequency inverter to choose the appropriate blade speed for your material.Adjust Downfeed: Set the hydraulic downfeed control to the desired feed rate.Start Cut: Activate the saw and monitor the cutting process.Raise Bow: After the cut is complete, the bow will automatically raise.BENEFITS OF USING THE Jet MBS-1323EVS-H Dual Mitering Bandsaw 3HP 230V 3-PH (413412):Increased Productivity: The dual mitering head and semi-automatic operation significantly reduce setup time and operator fatigue, resulting in faster production cycles.Improved Accuracy: The rigid construction and precise controls ensure accurate and consistent cuts, minimizing material waste.Enhanced Versatility: The variable speed control and wide range of cutting capacities make this bandsaw suitable for a variety of applications.Extended Blade Life: The self-propelled blade brush and blade tension gauge help to maximize blade life and reduce maintenance costs.Safety: Multiple safety features protect the operator and prevent accidents.FEATURES:Hydraulic ViseBlade Tension GaugeCoolant SystemAdjustable Material StopIntegrated Pressurized Wash Hose
