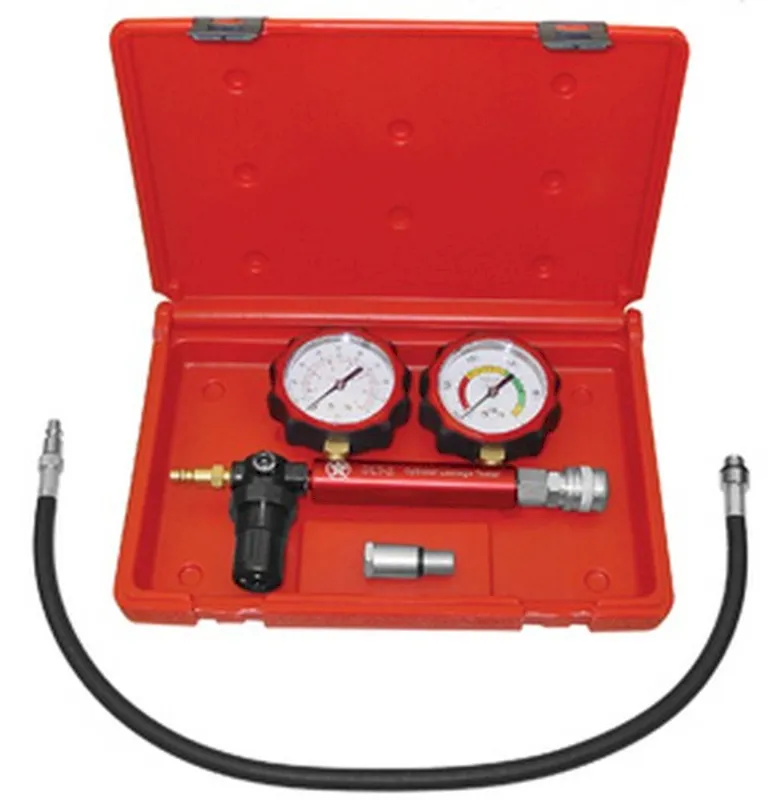

Lang Tools Cylinder Leak-Down Tester Kit w/2-Gauges (CLT-2PB)

The Lang Tools Cylinder Leak-Down Tester Kit w/2-Gauges (CLT-2PB) is an essential diagnostic instrument for comprehensive engine assessment. This kit allows technicians and enthusiasts to accurately measure the integrity of an engine’s combustion chamber by quantifying the amount of compressed air that leaks past internal components. Unlike standard compression testers, the CLT-2PB identifies the specific source of compression loss, whether it be faulty valves, worn piston rings, cracked cylinder walls, or a compromised head gasket. Its dual-gauge design provides clear, precise readings, making it an invaluable tool for pinpointing problems and ensuring effective engine maintenance and repair.

KEY FEATURES AND BENEFITS:Dual Gauge Precision: Equipped with two M68 gauges, this tester offers unparalleled accuracy. One gauge displays the leakage percentage from 0-100%, clearly indicating the severity of the problem. The second gauge monitors the input air pressure from your shop compressor, ensuring consistent and controlled testing conditions.Comprehensive Adapter Set: The kit includes a 26-inch hose assembly with an M14 standard reach adapter, an M14 long reach solid adapter, and commonly found M10 and M12 adapters. This broad compatibility ensures the tester can be used across a wide range of gasoline engine types.Integrated Pressure Regulator: A built-in precision regulator allows for exact control over the air pressure delivered into the cylinder, crucial for obtaining consistent and reliable leak-down measurements. This feature prevents over-pressurization and ensures test accuracy.Clear Leakage Indication: The leakage gauge features a multicolored band, providing a quick visual reference for low, moderate, and high leakage levels. This intuitive design helps in rapid assessment of engine health.Portable Storage Case: The entire kit is housed in a robust plastic storage case, offering secure organization and convenient transport. This protective case ensures the longevity of the tools and keeps all components readily accessible.SPECIFICATIONS:Manufacturer Part Number: CLT-2PBGauge Quantity: 2Pressure Gauge Range: 0-100 PSI (0-7 bar)Leakage Gauge Range: 0-100%Hose Length: 26 inchesPower Type: Air (requires external air compressor)Included in the product when purchased:Lang Tools Cylinder Leak-Down Tester Assembly with dual gauges and precision regulator26-inch hose assembly with M14 standard reach adapterM14 long reach solid adapterM10 adapterM12 adapterDurable plastic storage caseHOW TO USE:Prepare the Engine: Ensure the engine is at normal operating temperature. Turn off the ignition and remove all spark plugs.Position Piston: Rotate the crankshaft to position the piston of the cylinder you wish to test at Top Dead Center (TDC) on its compression stroke. This closes both intake and exhaust valves.Connect Tester: Thread the appropriate adapter (M10, M12, or M14) into the spark plug hole of the chosen cylinder. Connect the tester’s hose assembly to the adapter.Connect Air Supply: Connect your shop air compressor to the air inlet fitting on the leak-down tester.Set Regulator Pressure: Open the air supply from your compressor. Adjust the regulator knob on the leak-down tester until the input pressure gauge reads the desired test pressure, typically 100 PSI (or as specified by the engine manufacturer).Read Leakage: Observe the leakage gauge. The needle will indicate the percentage of air leaking from the cylinder. Simultaneously, listen for the sound of escaping air at different points to pinpoint the leak’s origin (e.g., air from the exhaust pipe indicates a bad exhaust valve, from the intake manifold indicates a bad intake valve, from the oil filler cap or dipstick indicates worn piston rings, or bubbles in the radiator suggests a head gasket issue).Test Other Cylinders: Repeat the process for each cylinder to get a complete picture of the engine’s internal condition.Disconnect and Store: Once testing is complete, disconnect the air supply, remove the adapter, and store all components in the provided case.BENEFITS OF USING LANG TOOLS CYLINDER LEAK-DOWN TESTER KIT W/2-GAUGES (CLT-2PB):Provides a precise understanding of an engine’s internal health, beyond what a simple compression test can offer.Helps avoid costly guesswork in engine diagnostics by pinpointing the exact source of compression issues.Enables proactive maintenance by identifying minor leaks before they escalate into major engine failures.Supports efficient repair planning by clearly showing which components require attention.Contributes to prolonged engine life by facilitating timely and accurate repairs.Offers clear, actionable data for both professional mechanics and DIY enthusiasts.FEATURES:Integrated air pressure regulator for precise control.Dual M68 gauges for simultaneous input pressure and leakage percentage display.Leakage gauge with color-coded scale for quick interpretation of results.Flexible 26-inch hose for easy connection in various engine bays.Solid M14 long reach adapter designed for deeper spark plug wells.Includes M10 and M12 adapters for a wide range of vehicle applications.Robust construction designed for repeated professional use.Comes complete with a blow-molded carrying case for organization and protection.Allows for static engine testing, preventing crankshaft rotation during diagnosis.Enables identification of specific component failure, such as valve sealing or ring wear.
