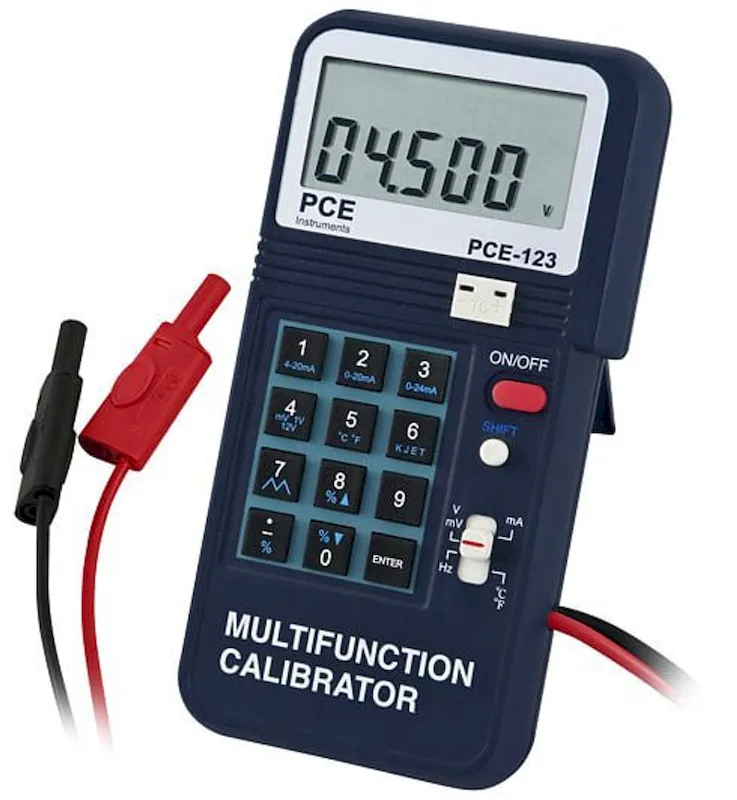

PCE Instruments Digital Current Calibrator (PCE-123)

PCE Instruments Digital Current Calibrator (PCE-123) is a portable and versatile tool designed for the simulation and measurement of electrical signals, making it ideal for testing and calibrating controllers, measuring instruments, and process control devices.

It features automatic step and ramp functions, intuitive keypad operation, and a large LCD for easy readability. The calibrator meets ASTM standards and is widely used in electronics workshops, trade, and automation industries.

Specifications and DimensionsMeasurement parameters: mA, mV, V, frequency (Hz), temperature (°C/°F)DC Current Range: 4 to 20mA / 0 to 20mA / 0 to 24mAResolution: 1µAAccuracy: ±0.025% ±3µAVoltage Ranges:0 to 100.00 mV0 to 10.000 V0 to 1.0000 VFrequency Range: 1 to 62,500HzTemperature Compatibility: Type-K, J, E, T thermocouple sensorsOperating conditions: 0 … 50 °C / 32 … 122 °F, <85% relative humidityPower supply: 1 x 9V battery or 6 x 1.5V batteriesDimensions: 88 x 168 x 26mm / 3.4 x 6.6 x 1 inWeight: 330 g / 11.6 oz

Key Features and BenefitsSimulates and measures electrical signals with high accuracySupports multiple output signal formats including mA, mV, V, Hz, and temperatureAutomatic ramp function and preset output signal steps (0 … 100%)LCD display with intuitive keypad operation

Includes1 x PCE-123 Process Calibrator1 x Carrying Case1 x Type-K Adaptor6 x Batteries1 x Test Cables with Alligator Clips1 x User Manual
