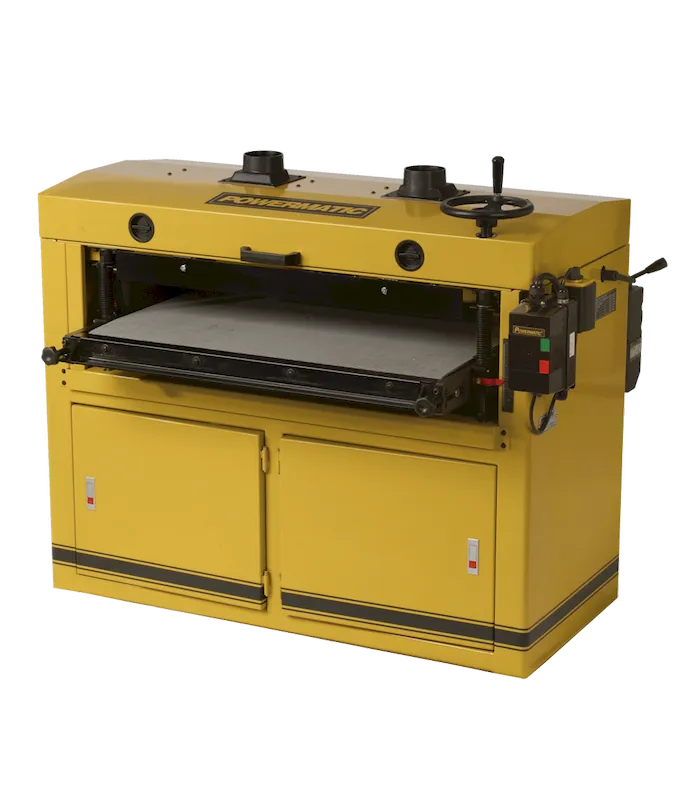

Powermatic DDS-237 Model 10HP 37 Dual Drum Sander (1791321)

The Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander (1791321) is a high-performance dual drum sander designed for professional woodworkers and production shops. This heavy-duty machine boasts a powerful 10-horsepower motor that delivers exceptional sanding capability for even the most demanding tasks.

KEY FEATURES AND BENEFITS:Powerful 10 HP motor for high-performance sandingDual steel drums with hard durometer rubber coating for a flat, mar-free finishIndependently adjustable rear drum for precise fine-tuningTwo-speed gearbox (8 & 12 feet per minute) for versatile sanding optionsFull-size cast iron table for solid and stable woodworking platformForward/reverse poly conveyor belt for even material feedingDual dust ports with directional baffles for efficient dust collection (1200 CFM minimum required)Heavy steel cabinet minimizes vibration and provides storage spaceSPECIFICATIONS:Maximum Board Width: 37 inchesMinimum Board Length: 9 inchesMaximum Board Thickness: 5-1/4 inchesDrum Diameter: 6 inchesDrum Length: 37 inchesDrum Speed: 1700 RPMConveyor Motor: 1/4 HPDust Port Diameter: 4 inches (dual ports)Motor Power: 10 HPMotor Voltage: 230/460V (three-phase)Overall Dimensions: 60 x 45 x 45 inchesHOW TO USE:

For optimal operation of the Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander, follow these steps:

Adjust the rear drum for precise sanding depth.Select the appropriate speed on the gearbox (8 or 12 feet per minute).Ensure the cast iron table is level using the jackscrews and chain drive timing.Turn on the machine and feed material evenly using the poly conveyor belt.Monitor dust collection through the dual ports to maintain cleanliness.BENEFITS OF USING Powermatic DDS-237 Model 10HP 37″ Dual Drum Sander (1791321):Exceptional performance for production sanding applicationsRobust construction ensures durability and stabilityEfficient dust collection system maintains a clean work environmentUser-friendly design with adjustable features for precise sanding
