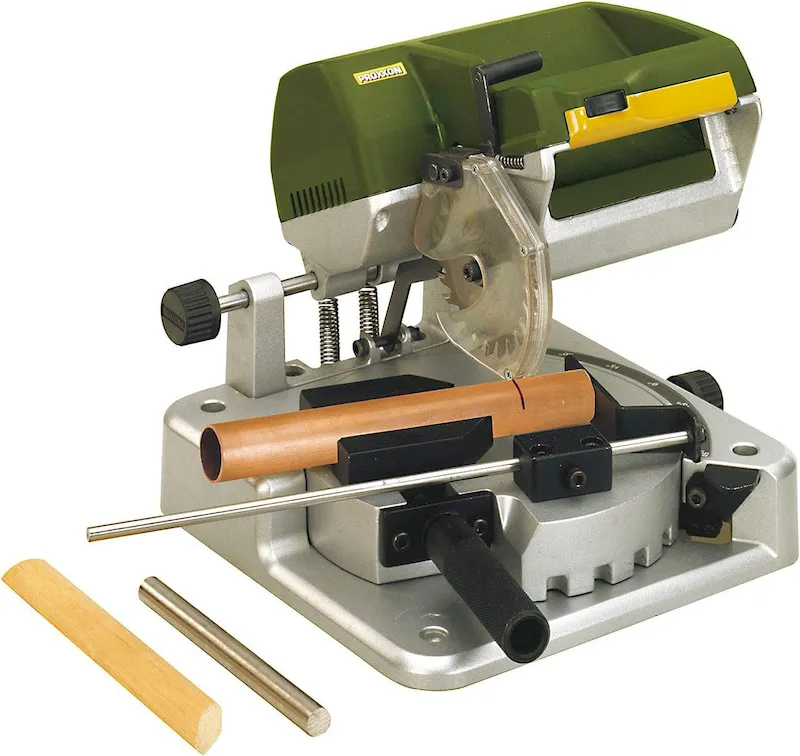

Proxxon KGS 80 Chop and Miter Saw (37160)

The Proxxon KGS 80 Chop and Miter Saw (37160) is a compact, precision-engineered tool ideal for model making, small-scale woodworking, and intricate cutting of plastics and non-ferrous metals. Its unique design allows for accurate and burr-free cuts, featuring a rotatable work table instead of a movable saw head, which enables miter cuts up to 45 degrees in both directions. The machine integrates a self-centering clamp system with specialized grooves for securing both round and thin materials. Driven by a quiet DC motor and a smooth-running toothed belt drive, it offers vibration-free performance. Built with a robust pressure-cast aluminum table and CNC-machined guides, the KGS 80 ensures long-term reliability and exceptional cutting precision for hobbyists and professionals alike.

KEY FEATURES AND BENEFITS:Precision Cutting: Designed for accurate and burr-free cuts on plastics, wood, and non-ferrous metals.Rotating Table Mechanism: Allows miter cuts up to 45° in both directions by rotating the work table instead of the saw head.Integrated Clamping System: Self-centering clamps include a V-groove for round materials and a front-side groove for thin stock.Collision-Free Sawing: Lateral saw head motion avoids interference with vise jaws for minimal gap cuts.Quiet Operation: DC motor with toothed belt drive offers smooth and silent performance.Durable Construction: Pressure-cast aluminum table with CNC-machined guides ensures precision and longevity.Home Workshop Friendly: Compact, stable, and easy to operate, making it ideal for hobbyists.SPECIFICATIONS:Voltage: 110 – 120V AC, 60HzMax. Power: 1/4hp (200W)Speed: 5,400 rpmTable Area: 9″ x 9″ (230 x 230mm)Weight: 12 lb (6kg)Blade Diameter: 3-1/8″ (80mm), 24 teeth, carbide-tippedIncluded in Purchase: 1x PROXXON KGS 80 Chop and Miter Saw, 1x Carbide-tipped saw bladeHOW TO USE:Placement: Set the saw on a stable, flat surface to ensure safety and precise operation.Blade Installation: Unplug the saw. Install the 3-1/8″ (80mm) blade if not already mounted, ensuring correct tooth orientation.Power Connection: Connect the saw to a 110-120V AC power outlet.Workpiece Clamping: Position the workpiece on the rotating table. Use the self-centering clamps. Use the V-groove for round pieces and the front slot for thin materials. Ensure it’s secure.Angle Setting: Rotate the table to the desired angle (up to 45°). Use positive stops for 15° increments. Lock the table in position.Cutting: Lower the saw head slowly through the workpiece. Let the blade come to a full stop before lifting.Finishing: Release the clamp, remove the workpiece, and repeat if necessary.Clean Up: Unplug the saw and clean off any dust or debris for optimal longevity.BENEFITS OF USING PROXXON KGS 80 CHOP AND MITER SAW (37160):Exceptional Precision: Ideal for model-making and intricate craftsmanship.Smooth, Clean Cuts: Reduces post-processing due to burr-free results.Material Versatility: Works efficiently on wood, plastics, and non-ferrous metals.User-Friendly Miter Adjustments: Rotating table with clear angle stops simplifies complex cuts.Quiet, Controlled Operation: Powered by a smooth DC motor and belt drive for silent use.Reliable Build: Sturdy aluminum construction offers years of consistent use.Enhanced Safety and Stability: Integrated clamping system ensures secure handling of all workpieces.FEATURES:Rotating Work Table: Enables precision miter cuts without moving the saw head.Aluminum Base: CNC-machined pressure-cast table for high accuracy.15° Angle Stops: Pre-set intervals for quick angle alignment.Lateral Saw Movement: Prevents interference with clamp jaws for closer, cleaner cuts.Self-Centering Vise: Includes grooves for securing round and thin stock.Quiet Motor Design: DC motor and belt system minimize vibration and noise.Blade Guard: Transparent polycarbonate cover for added safety.Compact Build: Lightweight 12 lb (6kg) design makes it easy to position and use.Included Blade: Comes with an 80mm carbide-tipped saw blade (24 teeth).
