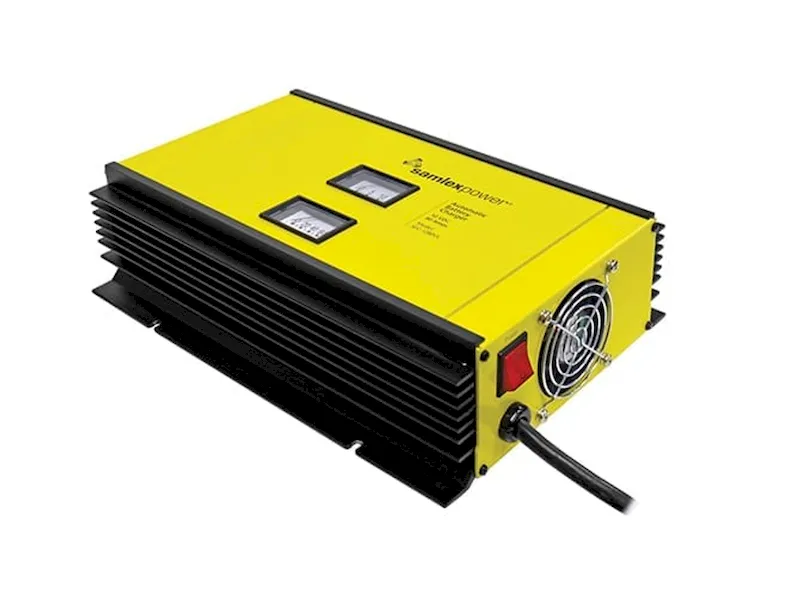

Samlex Battery Charger 12VDC 80A 120VAC; Samlex (SEC-1280UL)

Samlex Battery Charger 12VDC 80A 120VAC; Samlex (SEC-1280UL)

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries. “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries. The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Switch mode technology for high efficiency, lightweight and quiet operationAutomatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel CellCan charge 2 banks of batteries simultaneously, no isolator necessaryCan be used as a power supply or DC UPS when used in conjunction with a batteryUser Configurable AC Input voltage 120 or 230 VAC, 50 / 60 HzUser Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standaloneand loaded Lead Acid Batteries“Half Power Mode” reduces maximum charging current to half the rated capacity,allows for safe charging of lower capacity batteriesVoltmeter and Ammeter for monitoringFan cooled based on output currentProtections: Short circuit, overload, reverse battery connection and overtemperatureIncludes temperature sensor to prevent under/overcharging of battery iftemperature varies extensively

Specifications:

Input: 120 VAC 50/60 Hz (default) or 230 VAC 50/60 Hz (by internal jumper setting)Output: 12 VDCAmps: 80Remote Control: 900-RCWeight: 9 (lbs)Weight: 4.1 (kg)Dimensions: 15 x 9.61 x 3.82 (in)Dimensions: 381 x 244 x 97 (mm)
