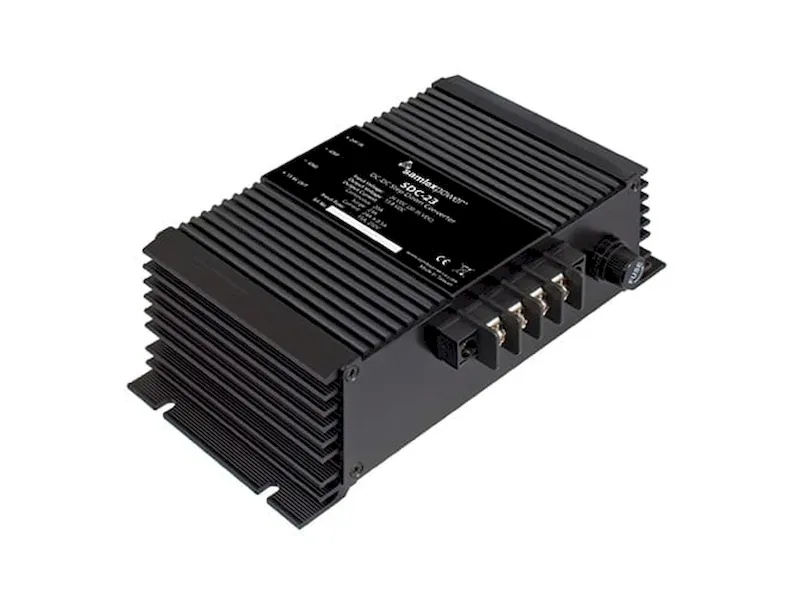

Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 23A (SDC-23)

Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 23A – Samlex (SDC-23)

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Advanced switch-mode designConverts 24 VDC to 12 VDCCompact and light weightHigh efficiencyCurrent limiting circuitOver voltage protectionShort circuit protectionReverse polarity protectionMount in almost any location

Specifications:

Input: 20-35 VDCOutput: 13.8 VDCAmps: 20 AmpsWeight: 2.2 (lbs)Weight: 1 (kg)Dimensions: 7.8 x 4.8 x 2.4 (in)Dimensions: 19.8 x 12.2 x 6.0 (cm)
