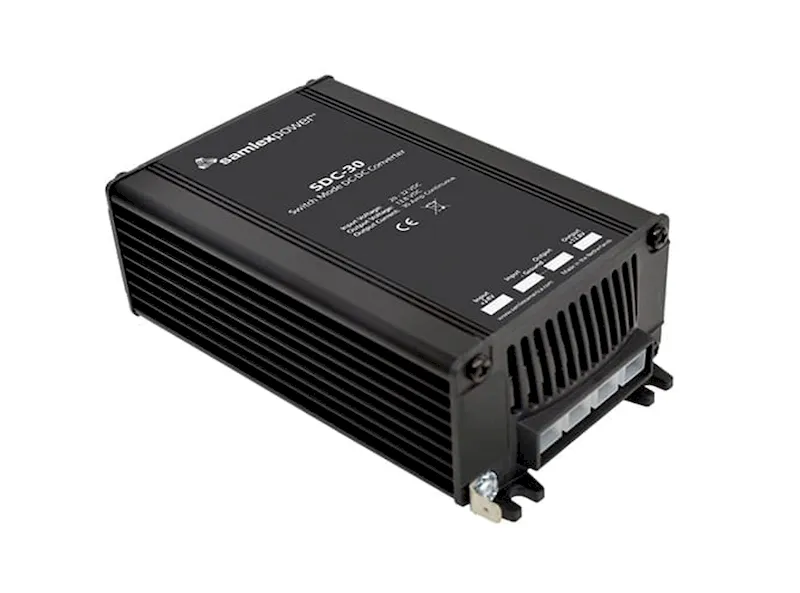

Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 30A (SDC-30)

Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 30A (SDC-30)

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Advanced switchmode designMount in almost any locationCompact and light weightReverse polarity protectionHigh efficiencyCycle by cycle current limiting circuitOvervoltage protectionShort circuit protection

Specifications:

Input: 20-32 VDCOutput: 13.8 VDCAmps: 30 AmpsWeight: 1.2 (lbs)Weight: 0.54 (kg)Dimensions: 6 x 3.5 x 1.9 (in)Dimensions: 15.2 x 8.9 x 4.8 (cm)
