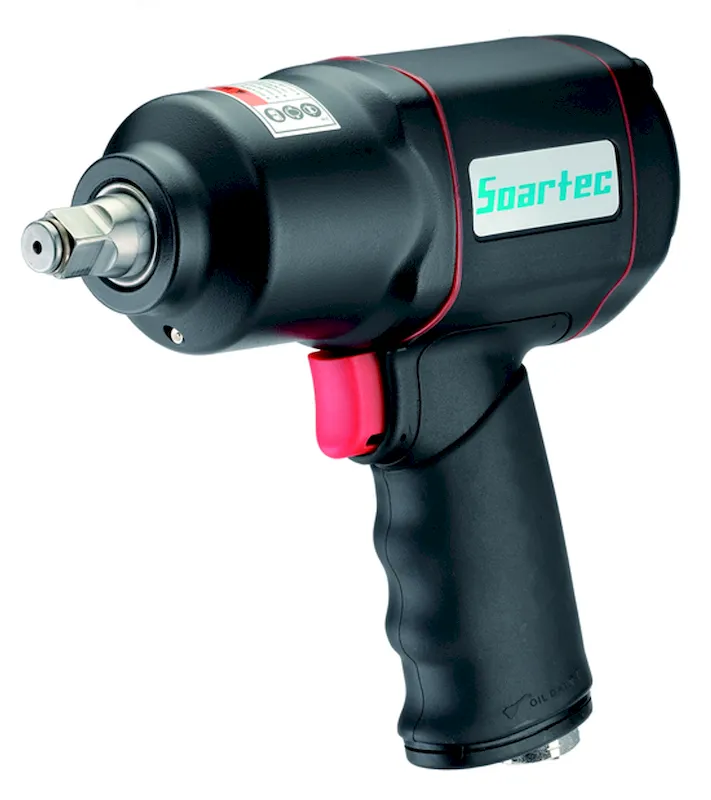

Soartec 1/2 530 ft-lb Composite Impact Wrench (WX-21015)

The Soartec 1/2″ 530 ft-lb Composite Impact Wrench (WX-21015) is an air-powered tool engineered to provide effective and consistent performance for a range of fastening and loosening applications. Designed with user comfort and operational efficiency in mind, this impact wrench combines a lightweight composite handle with a robust titanium clutch case, making it suitable for both automotive repair and light industrial assembly tasks. Its balanced design delivers the necessary power without excessive weight, supporting extended periods of use.

KEY FEATURES AND BENEFITS:Powerful Torque Output: Delivers a maximum torque of 650 ft-lb, enabling the efficient loosening of stubborn fasteners and effective tightening for secure applications.Rapid Free Speed: Operates at 8,500 RPM free speed, allowing for quick rundown of bolts and nuts, saving time during tasks.Ergonomic Design: Features a low pressure activation trigger and a lightweight 5.06 lb composite body, which helps reduce user fatigue and improve control during operation.Enhanced Maneuverability: Equipped with a 360° swivel air inlet, preventing air hose tangles and ensuring smooth movement around the workspace.Versatile Power Control: Includes a 4-position setting with three forward power levels and one reverse setting, providing adaptable torque control for different application requirements.Constructed for Longevity: The titanium clutch case offers superior wear resistance and contributes to the tool’s overall service life.SPECIFICATIONS:Type: Air Impact WrenchSKU: WX-21015Square Drive: 1/2″Standard Bolt Capacity: 5/8″ (16 mm)Max. Torque @ 5 sec: 650 ft-lb / 881 NmFree Speed: 8500 rpmWeight: 5.06 lbLength: 190 mmAnvil: StandardClutch Type: Twin HammerAir Inlet: 1/4″Air Pressure: 90 psiAir Consumption: 8.8 cfm (250 l/min)HOW TO USE:Prepare Air Supply: Connect a 1/4″ NPT air coupler to the tool’s air inlet. Attach your air hose from a compressor to the coupler. Ensure your air compressor can maintain 90 psi of air pressure and deliver at least 8.8 CFM of air.Lubricate (Initial Use): For first-time use or after extended storage, add a few drops of pneumatic tool oil into the air inlet. This lubricates the internal mechanisms.Select Direction and Power: Use the 4-position regulator on the tool to select either forward (three power settings available) or reverse (one setting). Choose the appropriate forward power setting based on the torque required for the fastener.Position Tool: Place the appropriate size impact socket onto the 1/2″ square drive. Position the socket securely onto the nut or bolt.Activate Tool: Hold the tool firmly and press the low pressure activation trigger. The twin hammer mechanism will deliver impacts to loosen or tighten the fastener.Monitor Progress: Observe the fastener. For loosening, continue until the fastener is free. For tightening, ensure the fastener is secure but avoid over-tightening, especially on sensitive materials.Disconnect and Store: Once finished, release the trigger, disconnect the air hose, and store the tool in a clean, dry place.BENEFITS OF USING THE SOARTEC 1/2″ 530 FT-LB COMPOSITE IMPACT WRENCH (WX-21015):Efficient Fastening: The twin hammer mechanism and high torque output allow for quick and effective removal and installation of fasteners, improving work efficiency.User Comfort: Its lightweight composite construction and ergonomic trigger design reduce hand fatigue, enabling longer periods of use without discomfort.Improved Accessibility: The compact 190mm length makes it easier to operate in confined spaces where larger tools might struggle.Operational Flexibility: The 4-position power control provides adaptable torque settings, making it suitable for a variety of tasks from general automotive to more precise applications.Enhanced Durability: The titanium clutch case offers increased resistance to wear and tear, contributing to the tool’s lifespan and reliability in demanding environments.Smooth Workflow: The 360° swivel air inlet prevents hose kinks and tangles, allowing for unrestricted movement and a smoother workflow.FEATURES:Low pressure activation trigger.Integrated 4-position regulator (3 forward, 1 reverse).Titanium clutch case construction.Twin hammer impact mechanism.Lightweight composite tool body.360-degree rotating air inlet.High-speed 8500 RPM motor.1/2-inch square drive.Capable of handling 5/8-inch standard bolts.Air consumption of 8.8 CFM.Designed for 90 psi air pressure.
